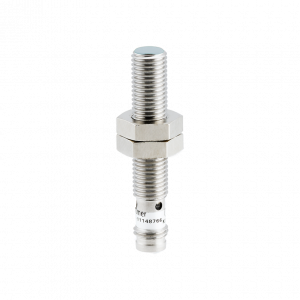

IWRM 08I9501/S35 - Inductive distance sensors

IWRM 08I9501/S35 - Inductive distance sensors
  • 0 … 2 mm
  • current output
  • connector M8
  • 10 … 60 °C
  • IP 67
Objednací číslo: 10145391
Výrobce: Baumer Electric AG
Dostupnost: na dotaz



Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák
Ing. Jaroslav Dančák
Technik specialista pro průmyslové snímače
BAUMER
Ing. Jaroslav Dančák - QR Kontakt
+420 733 533 400
jaroslav.dancak@ajptech.cz
Parametry
Nákresy
Ke stažení
Příslušenství
Podpora
Podobné produkty

Parametry

Základní parametry

Montážní typ: Quasi-flush
Měřicí vzdálenost Sd: 0 - 2 mm
Rozlišení:
  • < 0.001 mm (stat.)
  • < 0.005 mm (dynam.)
Opakovatelnost: 0.02 mm
Chyba linearity: ± 100 µm
Teplotní drift: ± 5 % (Full Scale)

Elektrické parametry

Čas odezvy: < 0.5 ms
Rozsah napájecího napětí +Vs: 15 - 30 VDC
Maximální spotřeba proudu (bez zátěže): 35 mA
Výstupní obvod: Analog 0 ... 10 mA
Odpor zátěže +Vs min.: < 910 Ohm
Odpor zátěže +Vs max.: < 2400 Ohm
Ochrana proti zkratu: Yes
Ochrana proti přepólování: Yes

Mechanické parametry

Konstrukce: Cylindrical threaded
Materiál aktivní části: PBT
Materiál pouzdra: Stainless steel
Rozměry: 8 mm
Délka pouzdra: 46 mm
Způsoby připojení: Connector M8
utahovací moment max.: 10 Nm (Front: 7 Nm)

Okolní podmínky

Pracovní teplota: 10 - +60 °C
Třída krytí: IP 67
