IR12.D06L-F50.GP2I.7BF/A014

Name: AJP-tech spol. s.r.o.
Address: Hudcova 533/78c, Medlánky, Brno, 61200, CZ
Telephone: +420 544 525 210
Price range: $$

distance measuring
0 … 6 mm
PNP / push-pull
IO-Link Dual-channel
connector M12
-25 … 75 °C
IP 67

Objednací číslo: 11236711
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák

Technik specialista pro průmyslové snímače
BAUMER

+420 733 533 400

jaroslav.dancak@ajptech.cz

Parametry

Nákresy

Diagramy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Montážní typ:	Flush
Speciální typ:	Linearized
Typ:	Distance measuring
Měřicí vzdálenost Sd:	0 - 6 mm
Rozlišení:	< 0.003 mm (High Accuracy Mode)
Opakovatelnost:	0.01 mm
Nastavení:	IO-Link
nastavitelné módy:	Single point, Two point, Window
Chyba linearity:	± 25 µm (S = 0 ... 4 mm) ± 60 µm (S = 0 ... 6 mm)
Teplotní drift:	± 2 % (Full Scale: S = 0 ... 4 mm) ± 3 % (Full Scale: S = 0 ... 6 mm)
Hystereze:	< 99 % (adjustable)
Indikace napájení:	LED green
Výstupní indikátor:	LED yellow

Elektrické parametry

Čas odezvy:	< 1 ms
Spínací frekvence:	1 kHz
Rozsah napájecího napětí +Vs:	8 - 36 VDC
Maximální spotřeba proudu (bez zátěže):	20 mA
Výstupní obvod:	PNP Push-pull IO-Link dual channel
Výstupní proud:	100 mA
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes
Modulační rychlost (baud rate):	230.4 kBaud (COM 3)

Mechanické parametry

Konstrukce:	Cylindrical threaded
Materiál aktivní části:	PBT
Materiál pouzdra:	Brass nickel plated
Rozměry:	12 mm
Délka pouzdra:	50 mm
Způsoby připojení:	Connector M12
utahovací moment max.:	15 Nm (Front: 10 Nm)

Okolní podmínky

Pracovní teplota:	-25 - +75 °C
Třída krytí:	IP 67

Komunikační rozhraní

Rozhraní:	IO-Link V1.1
Modulační rychlost (baud rate):	230.4 kBaud (COM 3)
Čas cyklu:	≥ 0.6 ms
Procesní data:	32 Bit
Struktura procesních dat:	Bit 0 = SSC1 (distance) Bit 1 = SSC2 (distance) Bit 3 = alarm Bit 4 = SSC3 (frequency) Bit 5 = SSC4 (counter) Bit 16-31 = 16 Bit measurement
IO-Link připojení:	Class A
Nastavitelné parametry:	Measuring range Switching point Switching hysteresis Measured value filtering Time filters LED status indicators Output logic Output circuit Counter Deactivate the sensor element Find Me function
Další údaje:	Distance Frequency Operating cycles Operating hours Boot cycles Operating voltage Device temperature Histograms

Nákresy

Výkresy

4726-IR12.xxxx-F50.xxxx.7BF.png | stáhnout (png, 2025-07-11 20:10:28)

Diagram připojení

Zchn-6100-AUTPP2.png | stáhnout (png, 2025-07-16 16:06:15)

Přiřazení pinů

Zchn-4046-22.png | stáhnout (png, 2025-07-12 04:44:47)

Diagramy

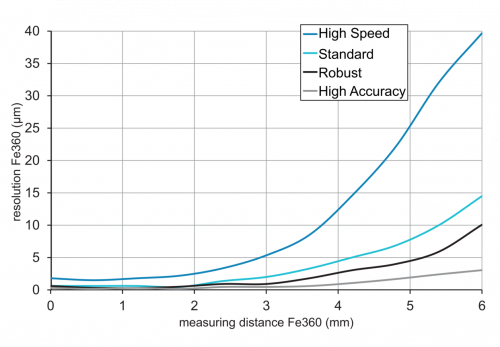

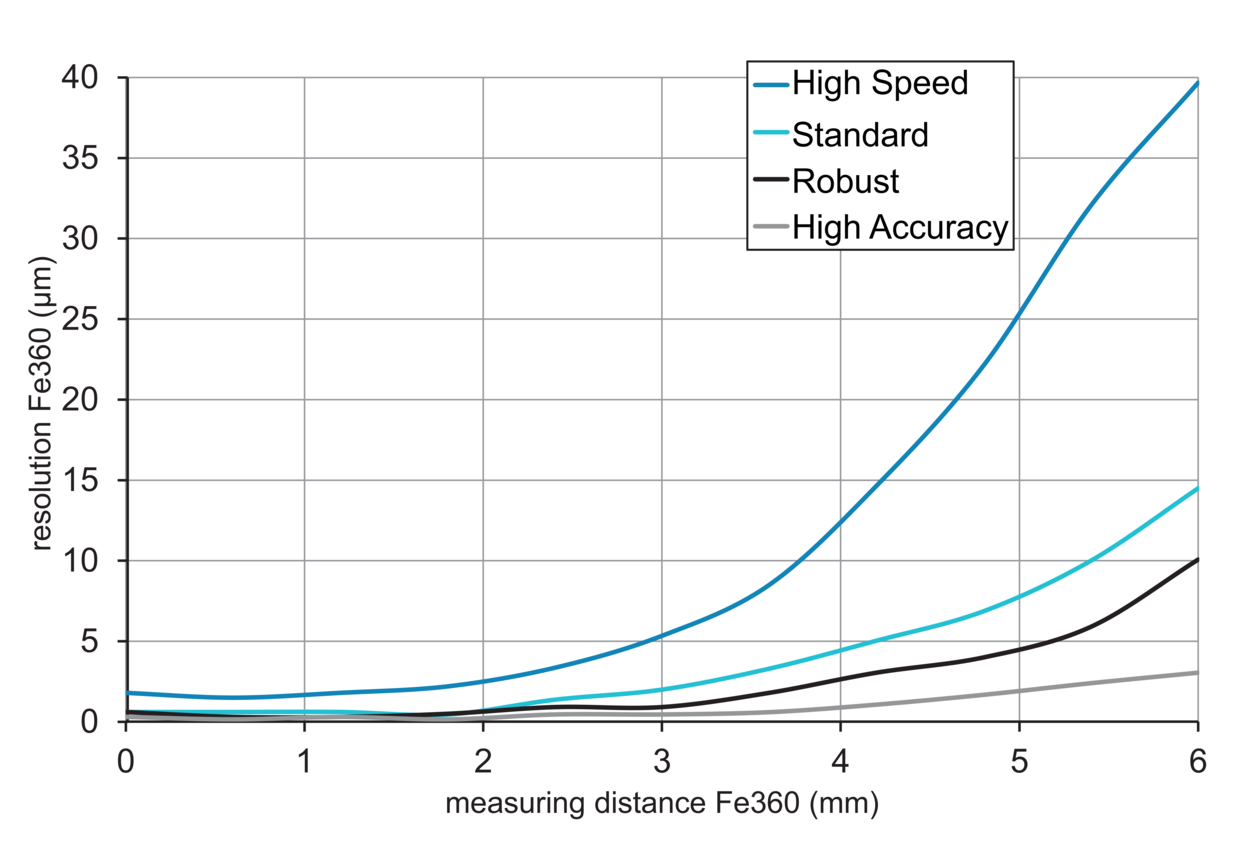

Rozlišení

C_E_IR12.D06L.Fxx.Ixxx.xxx.png | stáhnout (png, 2025-07-12 01:59:22)

Ke stažení

Datový list

Data sheet – IR12.D06L-F50.GP2I.7BF/A014 | stáhnout | zobrazit (ZH, pdf, 2025-07-17 14:53:05)
Data sheet – IR12.D06L-F50.GP2I.7BF/A014 | stáhnout | zobrazit (DE, pdf, 2025-07-17 14:53:04)
Data sheet – IR12.D06L-F50.GP2I.7BF/A014 | stáhnout | zobrazit (EN, pdf, 2025-07-17 14:53:03)

Manuál

Operating instruction – IRxx.Dxxx | stáhnout | zobrazit (DE, pdf, 2025-04-11 12:00:32)
Operating instruction – IRxx.Dxxx | stáhnout | zobrazit (EN, pdf, 2025-04-11 12:01:32)
Operating instruction – IO-Link IRxx.DxxL.-xxx.GxxI.xxx | stáhnout | zobrazit (EN, pdf, 2025-04-11 12:01:32)

Certifikáty/ osvědčení

DoC / CoC - IR12 | stáhnout | zobrazit (EN/DE/BG/CZ/DK/ES/FI/FR/GR/HU/IT/LT/LV/NL/NO/PL/PT/RO/SK/SI, pdf, 2025-04-11 11:31:19)

CAD

ePlan macro - 11236711 | stáhnout (edz, 2023-09-20 09:54:42)

Software

Software – IODD V1.1 (IRxx.DxxL Dual-Channel) | stáhnout (zip, 2025-07-11 17:56:02)
