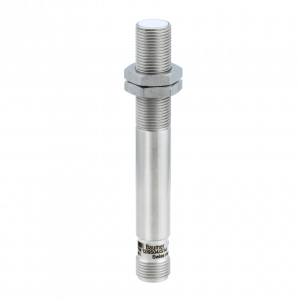

IPRM 12I9505/S14 - High precision analog sensors - high precision

Name: AJP-tech spol. s.r.o.
Address: Hudcova 533/78c, Medlánky, Brno, 61200, CZ
Telephone: +420 544 525 210
Price range: $$

IPRM 12I9505/S14 - High precision analog sensors - high precision

0 … 2 mm
current output
connector M12
60 °C
IP 67

Objednací číslo: 10128566
Výrobce: Baumer Electric AG

Dostupnost: 2 ks

Můžete mít ihned. Možnost osobního odběru v pracovní dny od 8:00 do 16:00 na adrese firmy po předchozí telefonické dohodě.

Zboží odesíláme okamžitě. Zboží, které závazně objednáte v pracovních dnech do 11:00 hodin, vám odešleme ještě tentýž den.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák

Technik specialista pro průmyslové snímače
BAUMER

+420 733 533 400

jaroslav.dancak@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Montážní typ:	Quasi-flush
Rychlost měření:	< 1 mm / ms
Měřicí vzdálenost Sd:	0 - 2 mm
Rozlišení:	< 0.012 µm (stat. 10 Hz) < 0.065 µm (dynam. 520 Hz) < 0.006 µm (range center)
Chyba linearity:	± 60 µm
Opakovatelnost:	< 1 µm
Teplotní drift:	± 10 µm

Elektrické parametry

Rozsah napájecího napětí +Vs:	15 - 30 VDC
Maximální spotřeba proudu (bez zátěže):	50 mA
Výstupní obvod:	Current output
Výstupní signál:	0 ... 20 mA
Odpor zátěže +Vs min.:	< 100 Ohm
Odpor zátěže +Vs max.:	< 400 Ohm
Pokles napětí Vd:	<7 VDC
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes

Mechanické parametry

Konstrukce:	Cylindrical threaded
Rozměry:	12 mm
Délka pouzdra:	90 mm
Materiál pouzdra:	Steel (9 SMn (Pb) 28/36)
Materiál aktivní části:	Ceramic
Způsoby připojení:	Connector M12

Okolní podmínky

Pracovní teplota:	0 - +60 °C
Třída krytí:	IP 67

Nákresy

Výkresy

0961-IPRM_12x950x_S14.png | stáhnout (png, 2025-07-11 19:36:43)

Diagram připojení

Zchn-5634.png | stáhnout (png, 2025-07-11 17:39:14)

Přiřazení pinů

Zchn-3641.png | stáhnout (png, 2025-07-11 16:31:06)

Ke stažení

Datový list

Data sheet – IPRM 12I9505/S14 | stáhnout | zobrazit (ZH, pdf, 2025-04-11 11:30:33)
Data sheet – IPRM 12I9505/S14 | stáhnout | zobrazit (DE, pdf, 2025-04-11 11:30:33)
Data sheet – IPRM 12I9505/S14 | stáhnout | zobrazit (EN, pdf, 2025-04-11 11:30:33)

Rychlý start

Quickstart – IPRM 12I9505/S14 | stáhnout | zobrazit (DE/EN/FR, pdf, 2025-04-11 12:09:27)

Certifikáty/ osvědčení

DoC / CoC - Ixxx_12 | stáhnout | zobrazit (EN/DE/BG/CZ/DK/ES/FI/FR/GR/HU/IT/LT/LV/NL/NO/PL/PT/RO/SK/SI, pdf, 2025-04-11 11:32:07)

CAD

ePlan macro - 10128566 | stáhnout (edz, 2023-09-20 09:50:47)
