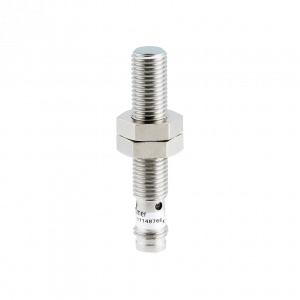

IR08.D03S-Q46.UA1Z.7SL - Inductive distance sensors

IR08.D03S-Q46.UA1Z.7SL - Inductive distance sensors
  • 0 … 3 mm
  • voltage output
  • connector M8
  • -10 … 70 °C
  • IP 67
Objednací číslo: 11123873
Výrobce: Baumer Electric AG
Dostupnost: 7 ks (zobrazit skladovou dostupnost)

Můžete mít ihned. Možnost osobního odběru v pracovní dny od 8:00 do 16:00 na adrese firmy po předchozí telefonické dohodě.
Zboží odesíláme okamžitě. Zboží, které závazně objednáte v pracovních dnech do 11:00 hodin, vám odešleme ještě tentýž den.
+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák
Ing. Jaroslav Dančák
Technik specialista pro průmyslové snímače
BAUMER
Ing. Jaroslav Dančák - QR Kontakt
+420 733 533 400
jaroslav.dancak@ajptech.cz
Parametry
Nákresy
Ke stažení
Příslušenství
Podpora
Skladová dostupnost
Podobné produkty

Parametry

Základní parametry

Montážní typ: Quasi-flush
Měřicí vzdálenost Sd: 0 - 3 mm
Rozlišení:
  • < 0.001 mm (stat.)
  • < 0.01 mm (dynam.)
Opakovatelnost: 0.02 mm
Chyba linearity:
  • ± 120 µm (S = 0,75 ... 2,25 mm)
  • ± 360 µm (S = 0 ... 3 mm)
Teplotní drift:
  • ± 4 % (Full Scale: 0 ... +60 °C)
  • ± 6 % (Full Scale: -10 ... +70 °C)

Elektrické parametry

Čas odezvy: < 0.5 ms
Rozsah napájecího napětí +Vs: 12 - 36 VDC
Maximální spotřeba proudu (bez zátěže): 10 mA
Výstupní obvod: Analog 0 ... 10 VDC
Odpor zátěže: > 4000 Ohm
Ochrana proti zkratu: Yes
Ochrana proti přepólování: Yes

Mechanické parametry

Konstrukce: Cylindrical threaded
Materiál aktivní části: PBT
Materiál pouzdra: Stainless steel
Rozměry: 8 mm
Délka pouzdra: 46 mm
Způsoby připojení: Connector M8
utahovací moment max.: 10 Nm (A: 7 Nm)

Okolní podmínky

Pracovní teplota: -10 - +70 °C
Třída krytí: IP 67
