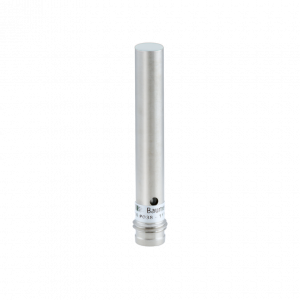

IR06.D03L-F46.GP1I.7SL

distance measuring
0 … 3 mm
PNP / push-pull
IO-Link
connector M8
-25 … 75 °C
IP 67

Objednací číslo: 11193946
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Martin Bulenínec

Vedoucí oddělení průmyslových snímačů a kamerových systémů
BAUMER | IOSS

+420 734 153 954

martin.buleninec@ajptech.cz

Parametry

Nákresy

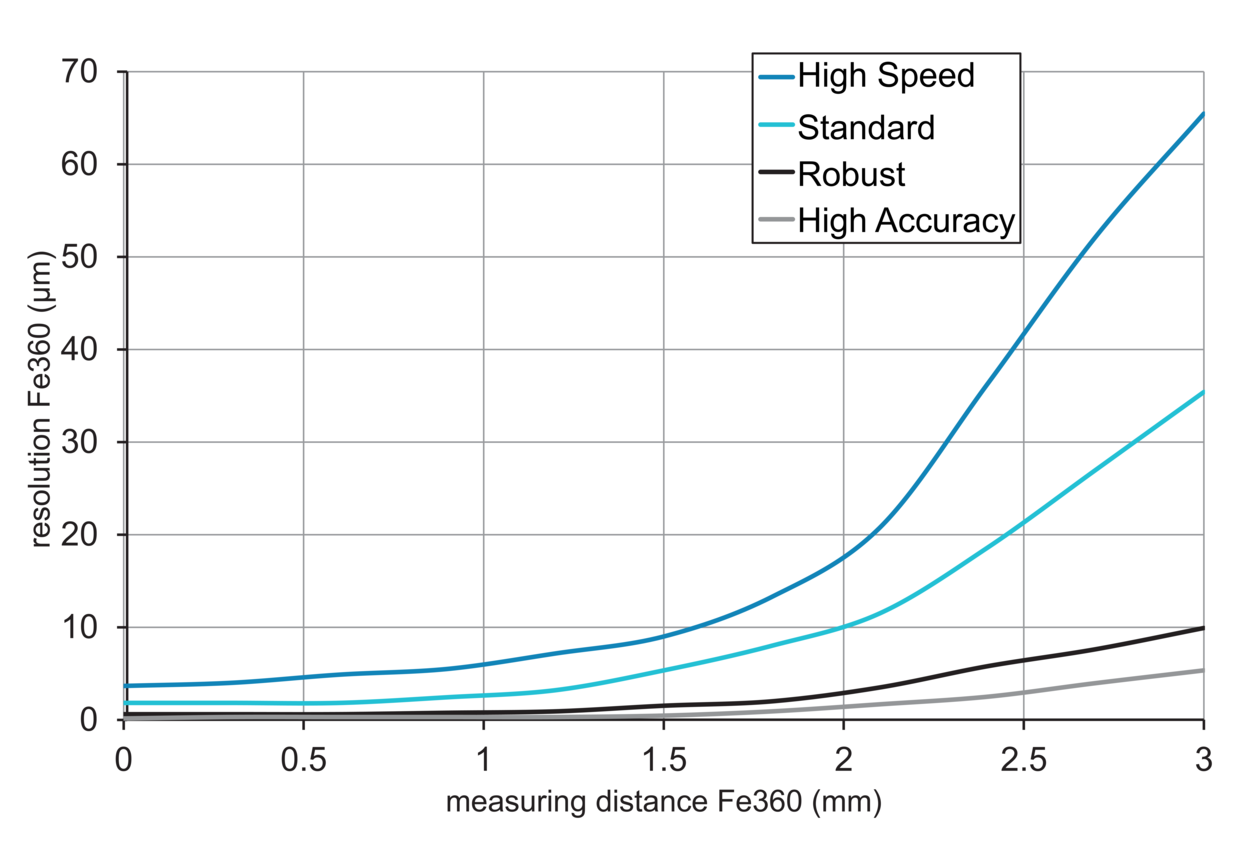

Diagramy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Montážní typ:	Flush
Speciální typ:	Linearized
Typ:	Distance measuring
Měřicí vzdálenost Sd:	0 - 3 mm
Rozlišení:	< 0.005 mm (High Accuracy Mode)
Opakovatelnost:	0.01 mm
Nastavení:	IO-Link
nastavitelné módy:	Single point, Two point, Window
Chyba linearity:	± 10 µm (S = 0 ... 2 mm) ± 90 µm (S = 0 ... 3 mm)
Teplotní drift:	± 2 % (Full Scale: S = 0 ... 2 mm) ± 3 % (Full Scale: S = 0 ... 3 mm)
Hystereze:	< 99 % (adjustable)
Indikace napájení:	LED green
Výstupní indikátor:	LED yellow

Elektrické parametry

Čas odezvy:	< 1 ms
Spínací frekvence:	1.25 kHz
Rozsah napájecího napětí +Vs:	8 - 36 VDC
Maximální spotřeba proudu (bez zátěže):	15 mA
Výstupní obvod:	PNP Push-pull IO-Link
Výstupní proud:	100 mA
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes
Modulační rychlost (baud rate):	230.4 kBaud (COM 3)

Mechanické parametry

Konstrukce:	Cylindrical smooth
Materiál aktivní části:	PBT
Materiál pouzdra:	Stainless steel
Rozměry:	6.5 mm
Délka pouzdra:	46 mm
Způsoby připojení:	Connector M8

Okolní podmínky

Pracovní teplota:	-25 - +75 °C
Třída krytí:	IP 67

Komunikační rozhraní

Rozhraní:	IO-Link V1.1
Modulační rychlost (baud rate):	230.4 kBaud (COM 3)
Čas cyklu:	≥ 0.6 ms
Procesní data:	32 Bit
Struktura procesních dat:	Bit 0 = SSC1 (distance) Bit 1 = SSC2 (distance) Bit 3 = alarm Bit 4 = SSC3 (frequency) Bit 5 = SSC4 (counter) Bit 16-31 = 16 Bit measurement
IO-Link připojení:	Class A
Nastavitelné parametry:	Measuring range Switching point Switching hysteresis Measured value filtering Time filters LED status indicators Output logic Output circuit Counter Deactivate the sensor element Find Me function
Další údaje:	Distance Frequency Operating cycles Operating hours Boot cycles Operating voltage Device temperature Histograms
