IR06.D03S-Q22.UA1Z.7SCV - Inductive distance sensors - subminiature

IR06.D03S-Q22.UA1Z.7SCV - Inductive distance sensors - subminiature
  • 0 … 3 mm
  • voltage output
  • cable, 2 m
  • -25 … 75 °C
  • IP 67
Objednací číslo: 11144078
Výrobce: Baumer Electric AG
Dostupnost: na dotaz



Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák
Ing. Jaroslav Dančák
Technik specialista pro průmyslové snímače
BAUMER
Ing. Jaroslav Dančák - QR Kontakt
+420 733 533 400
jaroslav.dancak@ajptech.cz
Parametry

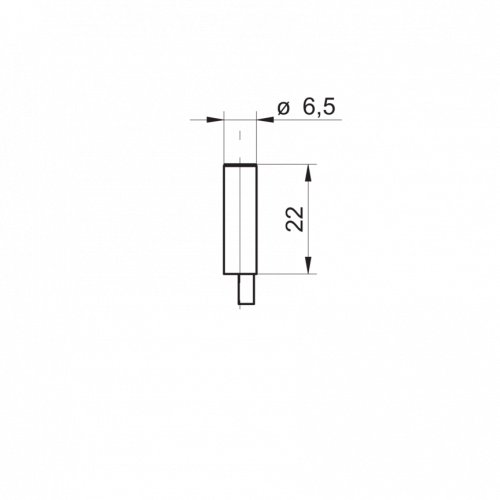

Nákresy
Ke stažení
Příslušenství
Podpora
Podobné produkty

Parametry

Základní parametry

Montážní typ: Quasi-flush
Měřicí vzdálenost Sd: 0 - 3 mm
Rozlišení:
  • < 0.001 mm (stat.)
  • < 0.01 mm (dynam.)
Opakovatelnost: 0.02 mm
Chyba linearity:
  • < 270 µm (S = 0,2 ... 1,7 mm)
  • - 150 - 900 µm (S = 0 ... 3 mm)
Teplotní drift:
  • ± 4 % (Full Scale: 0 ... +60 °C)
  • ± 6 % (Full Scale: -25 ... +75 °C)

Elektrické parametry

Čas odezvy: < 0.5 ms
Rozsah napájecího napětí +Vs: 12 - 36 VDC
Maximální spotřeba proudu (bez zátěže): 10 mA
Výstupní obvod: Analog 0 ... 10 VDC
Odpor zátěže: > 4000 Ohm
Ochrana proti zkratu: Yes
Ochrana proti přepólování: Yes

Mechanické parametry

Konstrukce: Cylindrical smooth
Materiál aktivní části: PBT
Materiál pouzdra: Stainless steel
Rozměry: 6.5 mm
Délka pouzdra: 22 mm
Způsoby připojení: Cable, L=2 m

Okolní podmínky

Pracovní teplota: -25 - +75 °C
Třída krytí: IP 67
