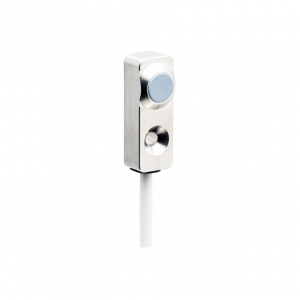

IF08.D03L-Q25.UA1E.7VNU - Inductive distance sensors - miniature

IF08.D03L-Q25.UA1E.7VNU - Inductive distance sensors - miniature
  • Distance measuring
  • 0 ... 3 mm
  • voltage output
  • flylead connector M8
  • -20… 70 °C
  • IP 67
Objednací číslo: 11244231
Výrobce: Baumer Electric AG
Dostupnost: na dotaz



Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák
Ing. Jaroslav Dančák
Technik specialista pro průmyslové snímače
BAUMER
Ing. Jaroslav Dančák - QR Kontakt
+420 733 533 400
jaroslav.dancak@ajptech.cz
Parametry
Nákresy
Ke stažení
Příslušenství
Podpora
Podobné produkty

Parametry

Základní parametry

Montážní typ: Quasi-flush
Speciální typ: Linearized
Měřicí vzdálenost Sd: 0 - 3 mm
Citlivost: 3,33 V/mm
Rozlišení:
  • < 0.003 mm (stat.)
  • < 0.009 mm (dynam.,S = 0 ... 2 mm)
  • < 0.018 mm (dynam.,S = 0 ... 3 mm)
Opakovatelnost: 0.01 mm
Nastavení: External Teach-in
Chyba linearity:
  • ± 15 µm (S = 0 ... 2 mm)
  • ± 90 µm (S = 0 ... 3 mm)
Teplotní drift:
  • ± 2 % (Full Scale: S = 0 ... 2 mm)
  • ± 6 % (Full Scale: S = 0 ... 3 mm)

Elektrické parametry

Čas odezvy: < 2 ms
Rozsah napájecího napětí +Vs: 12 - 30 VDC
Maximální spotřeba proudu (bez zátěže): 10 mA
Výstupní obvod: Analog 0 ... 10 VDC
Odpor zátěže: > 4000 Ohm
Ochrana proti zkratu: Yes
Ochrana proti přepólování: Yes

Mechanické parametry

Konstrukce: Rectangular
Materiál aktivní části: PBT
Materiál pouzdra: Stainless steel
Rozměry: 8 mm
Délka pouzdra: 24.6 mm
Způsoby připojení: Flylead connector PUR M8, L=200 mm
utahovací moment max.: 0.8 Nm

Okolní podmínky

Pracovní teplota: -20 - +70 °C
Třída krytí: IP 67
