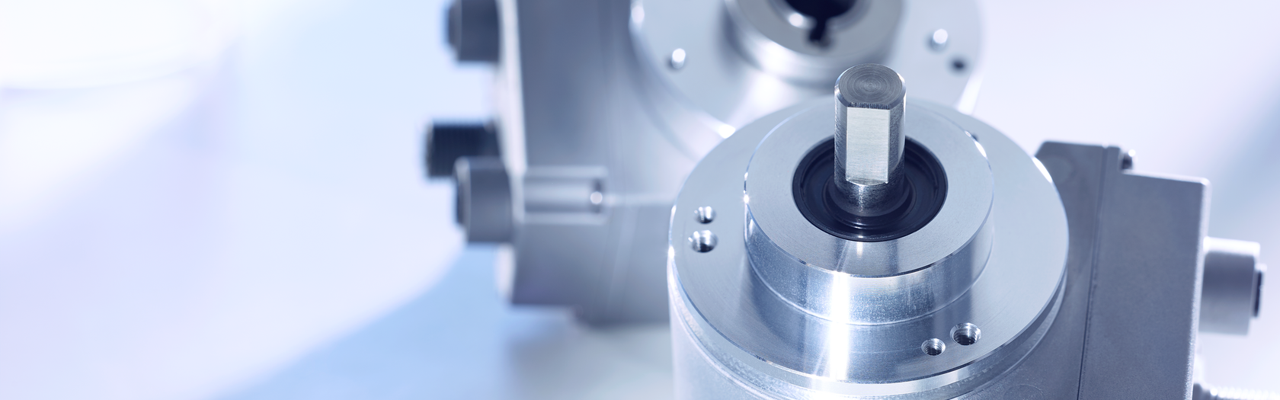

Standardní absolutní enkodéry

Standardní absolutní enkodéry - Dodavatel #1

Vysoce univerzální enkodéry Baumer, které zajišťují spolehlivou zpětnou vazbu o aktuální poloze.

Jednootáčkové i víceotáčkové, provedení s magnetickým nebo optickým snímáním. Široký výběr způsobů uchycení i typů komunikačních rozhraní. Kompaktní a prostorově úsporná provedení od 28 mm.



Filtrace
Ondřej Štěpánek
Ondřej Štěpánek
Produktový specialista pro průmyslové enkodéry
BAUMER
FotoProdukt (308) / PopisRozměr přírubyKroků za otáčkuRozhraníSkladová dostupnost
ATD 2A A 4 Y 7
  • Enkodér víceotáčkový / analogový výstup
  • Napěťový nebo proudový výstup
  • Resetování řídicích vstupů a směr otáčení
  • Jednootáčkové (ST) optické snímání, víceotáčkové (MT) magnetické snímání
  • Autodiagnostika
  • Celkové rozlišení 16 bitů
  • Nastavitelný úhel z výroby (0° - 360° resp. až 16 x 360°)
  • Přírubový radiální konektor
ø48...59 mm
14 bit
Analogové
na dotaz
ATD 2A B14 Y 1
  • Analogové signály
  • 14bitový singleturn
  • Interní autodiagnostika
  • Napěťový nebo proudový výstup
  • Nastavitelný úhel z výroby (0° - 360°)
  • Vycentrování ø50 mm, montážního šroubového otvoru ø68 mm
  • Přírubový radiální konektor
  • Jednoduché zpracování signálu
ø48...59 mm
14 bit
Analogové
na dotaz
ATD 2S A 4 Y 7
  • Enkodér víceotáčkový / SSI
  • Jednootáčkové (ST) optické snímání, víceotáčkové (MT) magnetické snímání
  • Rozlišení max. 24 bitů (MT)
  • Průchozí dutá hřídel ø10...14 mm
  • Autodiagnostika
  • Elektronické nastavení nulového bodu
  • Přírubový radiální konektor
ø48...59 mm
14 bit
SSI
SSI + Inkrementální
na dotaz
ATD 2S B14 Y21
  • Enkodér jednootáčkový / SSI
  • Optické snímání
  • Rozlišení 13 bitů (ST)
  • Vycentrování ø36 mm, montážního šroubového otvoru ø48 mm
  • Přírubový radiální konektor
ø48...59 mm
13 bit
SSI
na dotaz
ATD 2S B14 Y23
  • Enkodér jedno nebo víceotáčkový / SSI
  • Jednootáčkové (ST) optické snímání, víceotáčkové (MT) magnetické snímání
  • Rozlišení 14 bitů (ST), 24 bitů (MT)
  • Vycentrování ø36 mm, montážního šroubového otvoru ø48 mm
  • Autodiagnostika
  • Elektronické nastavení nulového bodu
  • Přírubový radiální konektor
ø48...59 mm
14 bit
SSI
SSI + Inkrementální
na dotaz
ATD 2S B14 Y24
  • Enkodér jedno nebo víceotáčkový / SSI + resolver
  • Měřící systém dva v jednom
  • Magnetické snímání
  • Rozlišení 12 bitů (ST), 12 bitů (MT)
  • Autodiagnostika
  • Elektronické nastavení nulového bodu
  • Vestavěné tlačítko předvolby
ø48...59 mm
12 bit
SSI
na dotaz
ATD 4S A 4 Y10
  • Enkodér jedno nebo víceotáčkový / SSI
  • Jednootáčkové (ST) optické snímání, víceotáčkové (MT) magnetické snímání
  • Max. rozlišení 15 bitů (ST), 24 bitů (MT)
  • Průchozí dutá hřídel ø20...27 mm
  • Autodiagnostika
  • Elektronické nastavení nulového bodu
  • Přírubový radiální konektor
ø60...90 mm
15 bit
SSI
SSI + Inkrementální
na dotaz
ATD2AH00
  • Analogové signály
  • 14bitový singleturn
  • Interní autodiagnostika
  • Napěťový nebo proudový výstup
  • Nastavitelný úhel z výroby (0° - 360°)
  • Odpojitelný kabel - tangenciální výstup
  • Jednoduché zpracování signálu
ø48...59 mm
14 bit
Analogové
na dotaz
BFF CANopen®
  • Enkodér jednootáčkový / CANopen®
  • Optické snímání
  • Rozlišení 13 bitů
  • Integrované rozhraní sběrnice
  • Programovatelné provozní režimy
  • Možnost nastavení nulového bodu
  • Zaslepená nebo průchozí dutá hřídel
ø48...59 mm
13 bit
CANopen®
na dotaz
BFF parallel
  • Enkodér jednootáčkový / paralelní
  • Optické snímání
  • Rozlišení 12 bitů
  • Malá hloubka profilu
  • Vysoká odolnost proti rušení
  • Zaslepená nebo průchozí dutá hřídel ø12 mm
ø48...59 mm
12 bit
Parallel
na dotaz
BFF SSI
  • Enkodér jednootáčkový / SSI
  • Optické snímání
  • Rozlišení 12 bitů
  • Malá hloubka profilu
  • Vstup pro směr počítání
  • Zaslepená nebo průchozí dutá hřídel ø12 mm
ø48...59 mm
12 bit
SSI
na dotaz
BFG CANopen®
  • Enkodér jednootáčkový / CANopen®
  • Optické snímání
  • Rozlišení 13 bitů
  • Integrované rozhraní sběrnice
  • Programovatelné provozní režimy
  • Možnost nastavení nulového bodu
  • Zaslepená nebo průchozí dutá hřídel
ø48...59 mm
13 bit
CANopen®
na dotaz
BFG parallel
  • Enkodér jednootáčkový / paralelní
  • Optické snímání
  • Rozlišení 12 bitů
  • Malá hloubka profilu
  • Vysoká odolnost proti rušení
  • Zaslepená nebo průchozí dutá hřídel ø12 mm
ø48...59 mm
12 bit
Parallel
na dotaz
BFG SSI
  • Enkodér jednootáčkový / SSI
  • Optické snímání
  • Rozlišení 12 bitů
  • Malá hloubka profilu
  • Vstup pro směr počítání
  • Zaslepená nebo průchozí dutá hřídel ø12 mm
ø48...59 mm
12 bit
SSI
na dotaz
BMMH 58 flexible
  • Encoder multiturn / bus cover
  • Robust magnetic sensing
  • Resolution: singleturn 12 bit, multiturn 18 bit
  • Modular fieldbus interfaces
  • CANopen®/DeviceNet/EtherCAT/EtherNet-IP/SAEJ1939/PROFINET/POWERLINK/Profibus
  • Resolution and zero point programmable
  • High resistance to shock and vibrations
  • Operating temperature -40...+85 °C
ø48...59 mm
12 bit
CANopen®
DeviceNet
EtherCAT
EtherNet/IP
Profibus
PROFINET
POWERLINK
SAE J1939
na dotaz
BMMV 58K flexible
  • Encoder single- or multiturn / bus cover
  • Robust magnetic sensing
  • Resolution: singleturn 12 bit, multiturn 18 bit
  • Modular fieldbus interfaces
  • CANopen®/DeviceNet/EtherCAT/EtherNet-IP SAEJ1939/PROFINET/POWERLINK/Profibus
  • Resolution and zero point programmable
  • High resistance to shock and vibrations
  • Operating temperature -40...+85 °C
  • Solid shaft with clamping or synchro flange
ø48...59 mm
12 bit
CANopen®
DeviceNet
EtherCAT
EtherNet/IP
Profibus
PROFINET
POWERLINK
SAE J1939
na dotaz
BMMV 58S flexible
  • Encoder single- or multiturn / bus cover
  • Robust magnetic sensing
  • Resolution: singleturn 12 bit, multiturn 18 bit
  • Modular fieldbus interfaces
  • CANopen®/DeviceNet/EtherCAT/EtherNet-IP SAEJ1939/PROFINET/POWERLINK/Profibus
  • Resolution and zero point programmable
  • High resistance to shock and vibrations
  • Operating temperature -40...+85 °C
  • Solid shaft with clamping or synchro flange
ø48...59 mm
12 bit
CANopen®
DeviceNet
EtherCAT
EtherNet/IP
Profibus
PROFINET
POWERLINK
SAE J1939
na dotaz
BMSH 58 flexible
  • Encoder singleturn / bus cover
  • Robust magnetic sensing
  • Resolution: singleturn 12 bit
  • Modular fieldbus interfaces
  • CANopen®/DeviceNet/EtherCAT/EtherNet-IP/SAEJ1939/PROFINET/POWERLINK/Profibus
  • Resolution and zero point programmable
  • High resistance to shock and vibrations
  • Operating temperature -40...+85 °C
ø48...59 mm
12 bit
CANopen®
DeviceNet
EtherCAT
EtherNet/IP
Profibus
PROFINET
POWERLINK
SAE J1939
na dotaz
BMSV 58K flexible
  • Encoder single- or multiturn / bus cover
  • Robust magnetic sensing
  • Resolution: singleturn 12 bit, multiturn 18 bit
  • Modular fieldbus interfaces
  • CANopen®/DeviceNet/EtherCAT/EtherNet-IP SAEJ1939/PROFINET/POWERLINK/Profibus
  • Resolution and zero point programmable
  • High resistance to shock and vibrations
  • Operating temperature -40...+85 °C
  • Solid shaft with clamping or synchro flange
ø48...59 mm
12 bit
CANopen®
DeviceNet
EtherCAT
EtherNet/IP
Profibus
PROFINET
POWERLINK
SAE J1939
na dotaz
BMSV 58S flexible
  • Encoder single- or multiturn / bus cover
  • Robust magnetic sensing
  • Resolution: singleturn 12 bit, multiturn 18 bit
  • Modular fieldbus interfaces
  • CANopen®/DeviceNet/EtherCAT/EtherNet-IP SAEJ1939/PROFINET/POWERLINK/Profibus
  • Resolution and zero point programmable
  • High resistance to shock and vibrations
  • Operating temperature -40...+85 °C
  • Solid shaft with clamping or synchro flange
ø48...59 mm
12 bit
CANopen®
DeviceNet
EtherCAT
EtherNet/IP
Profibus
PROFINET
POWERLINK
SAE J1939
na dotaz
EAL580-BNC.5WEC.13160.A
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 16 bit
  • Blind hollow shaft
  • LED status display
  • EtherCAT
  • Maximum resistant against magnetic fields
ø48...59 mm
13 bit
EtherCAT
na dotaz
EAL580-BNC.5WEC.13160.A
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 16 bit
  • Blind hollow shaft
  • LED status display
  • EtherCAT
  • Maximum resistant against magnetic fields
ø48...59 mm
13 bit
EtherCAT
na dotaz
EAL580-BNC.5WEC.18130.A
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 18 bit, multiturn 13 bit
  • Blind hollow shaft
  • LED status display
  • EtherCAT
  • Maximum resistant against magnetic fields
ø48...59 mm
18 bit
EtherCAT
na dotaz
EAL580-BNC.5WEC.18130.A
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 18 bit, multiturn 13 bit
  • Blind hollow shaft
  • LED status display
  • EtherCAT
  • Maximum resistant against magnetic fields
ø48...59 mm
18 bit
EtherCAT
na dotaz
EAL580-BNC.5WEN.13160.A
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 16 bit
  • Blind hollow shaft
  • LED status display
  • EtherNet/IP
  • Maximum resistant against magnetic fields
  • Button for Preset/Reset
  • Rotary coding switch for IP address
ø48...59 mm
13 bit
EtherNet/IP
na dotaz
EAL580-BNC.5WEN.13160.A
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 16 bit
  • Blind hollow shaft
  • LED status display
  • EtherNet/IP
  • Maximum resistant against magnetic fields
  • Button for Preset/Reset
  • Rotary coding switch for IP address
ø48...59 mm
13 bit
EtherNet/IP
na dotaz
EAL580-BNC.5WEN.18130.A
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 18 bit, multiturn 13 bit
  • Blind hollow shaft
  • LED status display
  • EtherNet/IP
  • Maximum resistant against magnetic fields
  • Button for Preset/Reset
  • Rotary coding switch for IP address
ø48...59 mm
18 bit
EtherNet/IP
na dotaz
EAL580-BNC.5WEN.18130.A
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 18 bit, multiturn 13 bit
  • Blind hollow shaft
  • LED status display
  • EtherNet/IP
  • Maximum resistant against magnetic fields
  • Button for Preset/Reset
  • Rotary coding switch for IP address
ø48...59 mm
18 bit
EtherNet/IP
na dotaz
EAL580-BNC.5WPT.13160.A
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 16 bit
  • Blind hollow shaft
  • LED status display
  • PROFINET IO
  • Maximum resistant against magnetic fields
ø48...59 mm
13 bit
PROFINET
na dotaz
EAL580-BNC.5WPT.13160.A
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 16 bit
  • Blind hollow shaft
  • LED status display
  • PROFINET IO
  • Maximum resistant against magnetic fields
ø48...59 mm
13 bit
PROFINET
na dotaz
EAL580-BNC.5WPT.18130.A
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 18 bit, multiturn 13 bit
  • Blind hollow shaft
  • LED status display
  • PROFINET IO
  • Maximum resistant against magnetic fields
ø48...59 mm
18 bit
PROFINET
na dotaz
EAL580-BNC.5WPT.18130.A
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 18 bit, multiturn 13 bit
  • Blind hollow shaft
  • LED status display
  • PROFINET IO
  • Maximum resistant against magnetic fields
ø48...59 mm
18 bit
PROFINET
na dotaz
EAL580-SC0.5WEC.13160.A
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 16 bit
  • Clamping flange
  • LED status display
  • EtherCAT
  • Maximum resistant against magnetic fields
ø48...59 mm
13 bit
EtherCAT
na dotaz
EAL580-SC0.5WEC.13160.A
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 16 bit
  • Clamping flange
  • LED status display
  • EtherCAT
  • Maximum resistant against magnetic fields
ø48...59 mm
13 bit
EtherCAT
na dotaz
EAL580-SC0.5WEC.18130.A
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 18 bit, multiturn 13 bit
  • Clamping flange
  • LED status display
  • EtherCAT
  • Maximum resistant against magnetic fields
ø48...59 mm
18 bit
EtherCAT
na dotaz
EAL580-SC0.5WEC.18130.A
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 18 bit, multiturn 13 bit
  • Clamping flange
  • LED status display
  • EtherCAT
  • Maximum resistant against magnetic fields
ø48...59 mm
18 bit
EtherCAT
na dotaz
EAL580-SC0.5WEN.13160.A
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 16 bit
  • Clamping flange
  • LED status display
  • EtherNet/IP
  • Maximum resistant against magnetic fields
  • Button for Preset/Reset
  • Rotary coding switch for IP address
ø48...59 mm
13 bit
EtherNet/IP
na dotaz
EAL580-SC0.5WEN.13160.A
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 16 bit
  • Clamping flange
  • LED status display
  • EtherNet/IP
  • Maximum resistant against magnetic fields
  • Button for Preset/Reset
  • Rotary coding switch for IP address
ø48...59 mm
13 bit
EtherNet/IP
na dotaz
EAL580-SC0.5WEN.18130.A
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 18 bit, multiturn 13 bit
  • Clamping flange
  • LED status display
  • EtherNet/IP
  • Maximum resistant against magnetic fields
  • Button for Preset/Reset
  • Rotary coding switch for IP address
ø48...59 mm
18 bit
EtherNet/IP
na dotaz
EAL580-SC0.5WEN.18130.A
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 18 bit, multiturn 13 bit
  • Clamping flange
  • LED status display
  • EtherNet/IP
  • Maximum resistant against magnetic fields
  • Button for Preset/Reset
  • Rotary coding switch for IP address
ø48...59 mm
18 bit
EtherNet/IP
na dotaz
EAL580-SC0.5WPT.13160.A
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 16 bit
  • Clamping flange
  • LED status display
  • PROFINET IO
  • Maximum resistant against magnetic fields
ø48...59 mm
13 bit
PROFINET
na dotaz
EAL580-SC0.5WPT.13160.A
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 16 bit
  • Clamping flange
  • LED status display
  • PROFINET IO
  • Maximum resistant against magnetic fields
ø48...59 mm
13 bit
PROFINET
na dotaz
EAL580-SC0.5WPT.18130.A
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 18 bit, multiturn 13 bit
  • Clamping flange
  • LED status display
  • PROFINET IO
  • Maximum resistant against magnetic fields
ø48...59 mm
18 bit
PROFINET
na dotaz
EAL580-SC0.5WPT.18130.A
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 18 bit, multiturn 13 bit
  • Clamping flange
  • LED status display
  • PROFINET IO
  • Maximum resistant against magnetic fields
ø48...59 mm
18 bit
PROFINET
na dotaz
EAL580-SV - EtherCAT
  • Absolute encoder multiturn
  • Optical sensing method
  • Max. resolution: singleturn 18 bit, multiturn 16 bit
  • Synchro flange
  • LED status display
  • EtherCAT
  • Maximum resistant against magnetic fields
ø48...59 mm
18 bit
EtherCAT
na dotaz
EAL580-SV - EtherNet/IP
  • Absolute encoder multiturn
  • Optical sensing method
  • Max. resolution: singleturn 18 bit, multiturn 16 bit
  • Synchro flange
  • LED status display
  • EtherNet/IP
  • Maximum resistant against magnetic fields
  • Button for Preset/Reset
  • Rotary coding switch for IP address
ø48...59 mm
18 bit
EtherNet/IP
na dotaz
EAL580-SV - PROFINET
  • Absolute encoder multiturn
  • Optical sensing method
  • Max. resolution: singleturn 18 bit, multiturn 16 bit
  • Synchro flange
  • LED status display
  • PROFINET IO
  • Maximum resistant against magnetic fields
ø48...59 mm
18 bit
PROFINET
na dotaz
EAL580-TNC.5WEC.13160.A
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 16 bit
  • Through hollow shaft
  • LED status display
  • EtherCAT
  • Maximum resistant against magnetic fields
ø48...59 mm
13 bit
EtherCAT
na dotaz
EAL580-TNC.5WEC.13160.A
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 16 bit
  • Through hollow shaft
  • LED status display
  • EtherCAT
  • Maximum resistant against magnetic fields
ø48...59 mm
13 bit
EtherCAT
na dotaz
EAL580-TNC.5WEC.18130.A
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 18 bit, multiturn 13 bit
  • Through hollow shaft
  • LED status display
  • EtherCAT
  • Maximum resistant against magnetic fields
ø48...59 mm
18 bit
EtherCAT
na dotaz
EAL580-TNC.5WEC.18130.A
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 18 bit, multiturn 13 bit
  • Through hollow shaft
  • LED status display
  • EtherCAT
  • Maximum resistant against magnetic fields
ø48...59 mm
18 bit
EtherCAT
na dotaz
EAL580-TNC.5WEN.13160.A
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 16 bit
  • Through hollow shaft
  • LED status display
  • EtherNet/IP
  • Maximum resistant against magnetic fields
  • Button for Preset/Reset
  • Rotary coding switch for IP address
ø48...59 mm
13 bit
EtherNet/IP
na dotaz
EAL580-TNC.5WEN.13160.A
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 16 bit
  • Through hollow shaft
  • LED status display
  • EtherNet/IP
  • Maximum resistant against magnetic fields
  • Button for Preset/Reset
  • Rotary coding switch for IP address
ø48...59 mm
13 bit
EtherNet/IP
na dotaz
EAL580-TNC.5WEN.18130.A
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 18 bit, multiturn 13 bit
  • Through hollow shaft
  • LED status display
  • EtherNet/IP
  • Maximum resistant against magnetic fields
  • Button for Preset/Reset
  • Rotary coding switch for IP address
ø48...59 mm
18 bit
EtherNet/IP
na dotaz
EAL580-TNC.5WEN.18130.A
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 18 bit, multiturn 13 bit
  • Through hollow shaft
  • LED status display
  • EtherNet/IP
  • Maximum resistant against magnetic fields
  • Button for Preset/Reset
  • Rotary coding switch for IP address
ø48...59 mm
18 bit
EtherNet/IP
na dotaz
EAL580-TNC.5WPT.13160.A
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 16 bit
  • Through hollow shaft
  • LED status display
  • PROFINET IO
  • Maximum resistant against magnetic fields
ø48...59 mm
13 bit
PROFINET
na dotaz
EAL580-TNC.5WPT.13160.A
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 16 bit
  • Through hollow shaft
  • LED status display
  • PROFINET IO
  • Maximum resistant against magnetic fields
ø48...59 mm
13 bit
PROFINET
na dotaz
EAL580-TNC.5WPT.18130.A
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 18 bit, multiturn 13 bit
  • Through hollow shaft
  • LED status display
  • PROFINET IO
  • Maximum resistant against magnetic fields
ø48...59 mm
18 bit
PROFINET
na dotaz
EAL580-TNC.5WPT.18130.A
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 18 bit, multiturn 13 bit
  • Through hollow shaft
  • LED status display
  • PROFINET IO
  • Maximum resistant against magnetic fields
ø48...59 mm
18 bit
PROFINET
na dotaz
EAL580-TNC.7WEC.18130.A
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 18 bit, multiturn 13 bit
  • Through hollow shaft
  • LED status display
  • EtherCAT
  • Maximum resistant against magnetic fields
ø48...59 mm
18 bit
EtherCAT
na dotaz
EAL580-TNC.7WEC.18130.A
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 18 bit, multiturn 13 bit
  • Through hollow shaft
  • LED status display
  • EtherCAT
  • Maximum resistant against magnetic fields
ø48...59 mm
18 bit
EtherCAT
na dotaz
EAM280 - Analog
  • Encoder singleturn / Analog
  • Contactless measuring method
  • Robust magnetic sensing
  • Simple mounting, long service life
  • Designed for harsh environmental conditions
  • Operating temperature -40...+85 °C
  • Resolution: 12 bit
  • Redundant version available
  • Protection IP 65 or IP 67
ø48...59 mm
Analogové
na dotaz
EAM280 - CANopen®
  • Encoder singleturn / CANopen®
  • Contactless measuring method, compact design
  • Robust magnetic sensing
  • Simple mounting, long service life
  • Designed for harsh environmental conditions
  • Operating temperature -40...+85 °C
  • Rapid temperature changes protection
  • Redundant version available
  • Protection IP 65 or IP 67
  • Connection cable or cable with M12
ø48...59 mm
14 bit
CANopen®
na dotaz
EAM300-B - CANopen®
  • Encoder single- or multiturn / CANopen®
  • Precise magnetic sensing
  • Angular accuracy up to ±0.15°
  • High protection up to IP 67
  • High resistance to shock and vibrations
  • Electronic gear function
  • Radial or axial plug and cable connection
ø25...36 mm
14 bit
CANopen®
na dotaz
EAM300-B - SSI
  • Encoder single- or multiturn / SSI
  • Precise magnetic sensing
  • Angular accuracy up to ±0.15°
  • Resolution max. 32 bit (14 bit ST, 18 bit MT)
  • High resistance to shock and vibrations
  • High protection up to IP 67
  • Radial or axial plug and cable connection
ø25...36 mm
14 bit
SSI
na dotaz
EAM300-S - CANopen®
  • Encoder single- or multiturn / CANopen®
  • Precise magnetic sensing
  • Angular accuracy up to ±0.15°
  • High protection up to IP 67
  • High resistance to shock and vibrations
  • Electronic gear function
  • Radial or axial plug and cable connection
ø25...36 mm
14 bit
CANopen®
na dotaz
EAM300-S - SSI
  • Encoder single- or multiturn / SSI
  • Precise magnetic sensing
  • Angular accuracy up to ±0.15°
  • Resolution max. 32 bit (14 bit ST, 18 bit MT)
  • High resistance to shock and vibrations
  • High protection up to IP 67
  • Radial or axial plug and cable connection
ø25...36 mm
14 bit
SSI
na dotaz
EAM360-BDC.5B4G.13120.A
  • Encoder multiturn / SSI
  • Precise magnetic sensing
  • Angular accuracy up to ±0.15°
  • Resolution 25 bit (13 bit ST, 12 bit MT)
  • Additional incremental signals
  • Clock frequency up to 2 MHz
  • High resistance to shock and vibrations
  • High protection IP 65
ø25...36 mm
13 bit
SSI
na dotaz
EAM360-BDC.5B4G.13120.A
  • Encoder multiturn / SSI
  • Precise magnetic sensing
  • Angular accuracy up to ±0.15°
  • Resolution 25 bit (13 bit ST, 12 bit MT)
  • Additional incremental signals
  • Clock frequency up to 2 MHz
  • High resistance to shock and vibrations
  • High protection IP 65
ø25...36 mm
13 bit
SSI
na dotaz
EAM360-BDC.5L4G.13120.A
  • Encoder multiturn / SSI
  • Precise magnetic sensing
  • Angular accuracy up to ±0.15°
  • Resolution 25 bit (13 bit ST, 12 bit MT)
  • Additional incremental signals
  • Clock frequency up to 2 MHz
  • High resistance to shock and vibrations
  • High protection IP 65
ø25...36 mm
13 bit
SSI
na dotaz
EAM360-BDC.5L4G.13120.A
  • Encoder multiturn / SSI
  • Precise magnetic sensing
  • Angular accuracy up to ±0.15°
  • Resolution 25 bit (13 bit ST, 12 bit MT)
  • Additional incremental signals
  • Clock frequency up to 2 MHz
  • High resistance to shock and vibrations
  • High protection IP 65
ø25...36 mm
13 bit
SSI
na dotaz
EAM360-BDC.5LC6.14180.A
  • Encoder multiturn / CANopen®
  • Precise magnetic sensing
  • Angular accuracy up to ±0.15°
  • Additional incremental signals
  • High protection IP 65
  • Cabel 2 m, radial
  • High resistance to shock and vibrations
  • Electronic gear function
ø25...36 mm
14 bit
CANopen®
na dotaz
EAM360-BDC.5LC6.14180.A
  • Encoder multiturn / CANopen®
  • Precise magnetic sensing
  • Angular accuracy up to ±0.15°
  • Additional incremental signals
  • High protection IP 65
  • Cabel 2 m, radial
  • High resistance to shock and vibrations
  • Electronic gear function
ø25...36 mm
14 bit
CANopen®
na dotaz
EAM360-BDC.5NC6.14180.A
  • Encoder multiturn / CANopen®
  • Precise magnetic sensing
  • Angular accuracy up to ±0.15°
  • Additional incremental signals
  • High protection IP 65
  • Flange connector radial, M12, 5-pin, A-coded
  • High resistance to shock and vibrations
  • Electronic gear function
ø25...36 mm
14 bit
CANopen®
na dotaz
EAM360-BDC.5NC6.14180.A
  • Encoder multiturn / CANopen®
  • Precise magnetic sensing
  • Angular accuracy up to ±0.15°
  • Additional incremental signals
  • High protection IP 65
  • Flange connector radial, M12, 5-pin, A-coded
  • High resistance to shock and vibrations
  • Electronic gear function
ø25...36 mm
14 bit
CANopen®
na dotaz
EAM360-SWA.5B4G.13120.A
  • Encoder multiturn / SSI
  • Precise magnetic sensing
  • Angular accuracy up to ±0.15°
  • Resolution 25 bit (13 bit ST, 12 bit MT)
  • Additional incremental signals
  • Clock frequency up to 2 MHz
  • High protection IP 65
  • High resistance to shock and vibrations
ø25...36 mm
13 bit
SSI
na dotaz
EAM360-SWA.5B4G.13120.A
  • Encoder multiturn / SSI
  • Precise magnetic sensing
  • Angular accuracy up to ±0.15°
  • Resolution 25 bit (13 bit ST, 12 bit MT)
  • Additional incremental signals
  • Clock frequency up to 2 MHz
  • High protection IP 65
  • High resistance to shock and vibrations
ø25...36 mm
13 bit
SSI
na dotaz
EAM360-SWA.5L4G.13120.A
  • Encoder multiturn / SSI
  • Precise magnetic sensing
  • Angular accuracy up to ±0.15°
  • Resolution 25 bit (13 bit ST, 12 bit MT)
  • Additional incremental signals
  • Clock frequency up to 2 MHz
  • High protection IP 65
  • High resistance to shock and vibrations
ø25...36 mm
13 bit
SSI
na dotaz
EAM360-SWA.5L4G.13120.A
  • Encoder multiturn / SSI
  • Precise magnetic sensing
  • Angular accuracy up to ±0.15°
  • Resolution 25 bit (13 bit ST, 12 bit MT)
  • Additional incremental signals
  • Clock frequency up to 2 MHz
  • High protection IP 65
  • High resistance to shock and vibrations
ø25...36 mm
13 bit
SSI
na dotaz
EAM360R-BDC.7LC4.A3601.A
  • Encoder multiturn / Analog
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Teach input for adjustment of measuring range
  • Applicable up to PLd (ISO 13849)
ø25...36 mm
Analogové
na dotaz
EAM360R-BDC.7LC4.A3601.A
  • Encoder multiturn / Analog
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Teach input for adjustment of measuring range
  • Applicable up to PLd (ISO 13849)
ø25...36 mm
Analogové
na dotaz
EAM360R-BDC.7LC4.A36A1.A
  • Encoder multiturn / Analog
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Teach input for adjustment of measuring range
  • Applicable up to PLd (ISO 13849)
ø25...36 mm
Analogové
na dotaz
EAM360R-BDC.7LC4.A36A1.A
  • Encoder multiturn / Analog
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Teach input for adjustment of measuring range
  • Applicable up to PLd (ISO 13849)
ø25...36 mm
Analogové
na dotaz
EAM360R-BDC.7LC6.14180.A
  • Encoder multiturn / CANopen®/SAE J1939
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Electronic gear function
  • Applicable up to PLd (ISO 13849)
ø25...36 mm
14 bit
CANopen®
na dotaz
EAM360R-BDC.7LC6.14180.A
  • Encoder multiturn / CANopen®/SAE J1939
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Electronic gear function
  • Applicable up to PLd (ISO 13849)
ø25...36 mm
14 bit
CANopen®
na dotaz
EAM360R-BDC.7NC4.A3601.A
  • Encoder multiturn / Analog
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Teach input for adjustment of measuring range
  • Applicable up to PLd (ISO 13849)
ø25...36 mm
Analogové
na dotaz
EAM360R-BDC.7NC4.A3601.A
  • Encoder multiturn / Analog
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Teach input for adjustment of measuring range
  • Applicable up to PLd (ISO 13849)
ø25...36 mm
Analogové
na dotaz
EAM360R-BDC.7NC4.A36A1.A
  • Encoder multiturn / Analog
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Teach input for adjustment of measuring range
  • Applicable up to PLd (ISO 13849)
ø25...36 mm
Analogové
na dotaz
EAM360R-BDC.7NC4.A36A1.A
  • Encoder multiturn / Analog
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Teach input for adjustment of measuring range
  • Applicable up to PLd (ISO 13849)
ø25...36 mm
Analogové
na dotaz
EAM360R-BDC.7NC6.14180.A
  • Encoder multiturn / CANopen®/SAE J1939
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Electronic gear function
  • Applicable up to PLd (ISO 13849)
ø25...36 mm
14 bit
CANopen®
na dotaz
EAM360R-BDC.7NC6.14180.A
  • Encoder multiturn / CANopen®/SAE J1939
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Electronic gear function
  • Applicable up to PLd (ISO 13849)
ø25...36 mm
14 bit
CANopen®
na dotaz
EAM360R-SWA.7LC4.A3601.A
  • Encoder multiturn / Analog
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Teach input for adjustment of measuring range
  • Applicable up to PLd (ISO 13849)
ø25...36 mm
Analogové
na dotaz
EAM360R-SWA.7LC4.A3601.A
  • Encoder multiturn / Analog
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Teach input for adjustment of measuring range
  • Applicable up to PLd (ISO 13849)
ø25...36 mm
Analogové
na dotaz
EAM360R-SWA.7LC4.A36A1.A
  • Encoder multiturn / Analog
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Teach input for adjustment of measuring range
  • Applicable up to PLd (ISO 13849)
ø25...36 mm
Analogové
na dotaz
EAM360R-SWA.7LC4.A36A1.A
  • Encoder multiturn / Analog
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Teach input for adjustment of measuring range
  • Applicable up to PLd (ISO 13849)
ø25...36 mm
Analogové
na dotaz
EAM360R-SWA.7LC6.14180.A
  • Encoder multiturn / CANopen®/SAE J1939
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Electronic gear function
  • Applicable up to PLd (ISO 13849)
ø25...36 mm
14 bit
CANopen®
na dotaz
EAM360R-SWA.7LC6.14180.A
  • Encoder multiturn / CANopen®/SAE J1939
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Electronic gear function
  • Applicable up to PLd (ISO 13849)
ø25...36 mm
14 bit
CANopen®
na dotaz
EAM360R-SWA.7NC4.A3601.A
  • Encoder multiturn / Analog
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Teach input for adjustment of measuring range
  • Applicable up to PLd (ISO 13849)
ø25...36 mm
Analogové
na dotaz
EAM360R-SWA.7NC4.A3601.A
  • Encoder multiturn / Analog
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Teach input for adjustment of measuring range
  • Applicable up to PLd (ISO 13849)
ø25...36 mm
Analogové
na dotaz
EAM360R-SWA.7NC4.A36A1.A
  • Encoder multiturn / Analog
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Teach input for adjustment of measuring range
  • Applicable up to PLd (ISO 13849)
ø25...36 mm
Analogové
na dotaz
EAM360R-SWA.7NC4.A36A1.A
  • Encoder multiturn / Analog
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Teach input for adjustment of measuring range
  • Applicable up to PLd (ISO 13849)
ø25...36 mm
Analogové
na dotaz
EAM360R-SWA.7NC6.14180.A
  • Encoder multiturn / CANopen®/SAE J1939
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Electronic gear function
  • Applicable up to PLd (ISO 13849)
ø25...36 mm
14 bit
CANopen®
na dotaz
EAM360R-SWA.7NC6.14180.A
  • Encoder multiturn / CANopen®/SAE J1939
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Electronic gear function
  • Applicable up to PLd (ISO 13849)
ø25...36 mm
14 bit
CANopen®
na dotaz
EAM580-BAC.5L4G.13120.A
  • Encoder multiturn / SSI
  • Precise magnetic sensing
  • Resolution: 25 bit (13 bit ST, 12 bit MT)
  • Angular accuracy up to ±0.15°
  • Additional incremental signals
  • High protection IP 65
  • High resistance to shock and vibrations
ø48...59 mm
13 bit
SSI
na dotaz
EAM580-BAC.5L4G.13120.A
  • Encoder multiturn / SSI
  • Precise magnetic sensing
  • Resolution: 25 bit (13 bit ST, 12 bit MT)
  • Angular accuracy up to ±0.15°
  • Additional incremental signals
  • High protection IP 65
  • High resistance to shock and vibrations
ø48...59 mm
13 bit
SSI
na dotaz
EAM580-BAC.5LC6.14180.A
  • Encoder multiturn / CANopen®/SAE J1939
  • Precise magnetic sensing
  • Angular accuracy up to ±0.15°
  • Additional incremental signals
  • High protection IP 65
  • High resistance to shock and vibrations
  • Electronic gear function
ø48...59 mm
14 bit
CANopen®
na dotaz
EAM580-BAC.5LC6.14180.A
  • Encoder multiturn / CANopen®/SAE J1939
  • Precise magnetic sensing
  • Angular accuracy up to ±0.15°
  • Additional incremental signals
  • High protection IP 65
  • High resistance to shock and vibrations
  • Electronic gear function
ø48...59 mm
14 bit
CANopen®
na dotaz
EAM580-BAC.5NC6.14180.A
  • Encoder multiturn / CANopen®/SAE J1939
  • Precise magnetic sensing
  • Angular accuracy up to ±0.15°
  • Additional incremental signals
  • High protection IP 65
  • High resistance to shock and vibrations
  • Electronic gear function
ø48...59 mm
14 bit
CANopen®
na dotaz
EAM580-BAC.5NC6.14180.A
  • Encoder multiturn / CANopen®/SAE J1939
  • Precise magnetic sensing
  • Angular accuracy up to ±0.15°
  • Additional incremental signals
  • High protection IP 65
  • High resistance to shock and vibrations
  • Electronic gear function
ø48...59 mm
14 bit
CANopen®
na dotaz
EAM580-BNC.5BC6.14188.A
  • Encoder multiturn / CANopen®|SAE J1939
  • Precise magnetic sensing
  • Angular accuracy up to ±0.15°
  • Additional incremental signals
  • High protection IP 65
  • High resistance to shock and vibrations
  • Electronic gear function
ø48...59 mm
CANopen®
na dotaz
EAM580-BNC.5BC6.14188.A
  • Encoder multiturn / CANopen®|SAE J1939
  • Precise magnetic sensing
  • Angular accuracy up to ±0.15°
  • Additional incremental signals
  • High protection IP 65
  • High resistance to shock and vibrations
  • Electronic gear function
ø48...59 mm
CANopen®
na dotaz
EAM580-SC0.5L4G.13120.A
  • Encoder multiturn / SSI
  • Precise magnetic sensing
  • Resolution: 25 bit (13 bit ST, 12 bit MT)
  • Angular accuracy up to ±0.15°
  • Additional incremental signals
  • High protection IP 65
  • High resistance to shock and vibrations
ø48...59 mm
13 bit
SSI
na dotaz
EAM580-SC0.5L4G.13120.A
  • Encoder multiturn / SSI
  • Precise magnetic sensing
  • Resolution: 25 bit (13 bit ST, 12 bit MT)
  • Angular accuracy up to ±0.15°
  • Additional incremental signals
  • High protection IP 65
  • High resistance to shock and vibrations
ø48...59 mm
13 bit
SSI
na dotaz
EAM580-SC0.5LC6.14180.A
  • Encoder multiturn / CANopen®/SAE J1939
  • Precise magnetic sensing
  • Angular accuracy up to ±0.15°
  • Additional incremental signals
  • High protection IP 65
  • High resistance to shock and vibrations
  • Electronic gear function
ø48...59 mm
14 bit
CANopen®
na dotaz
EAM580-SC0.5LC6.14180.A
  • Encoder multiturn / CANopen®/SAE J1939
  • Precise magnetic sensing
  • Angular accuracy up to ±0.15°
  • Additional incremental signals
  • High protection IP 65
  • High resistance to shock and vibrations
  • Electronic gear function
ø48...59 mm
14 bit
CANopen®
na dotaz
EAM580-SC0.5NC6.14180.A
  • Encoder multiturn / CANopen®/SAE J1939
  • Precise magnetic sensing
  • Angular accuracy up to ±0.15°
  • Additional incremental signals
  • High protection IP 65
  • High resistance to shock and vibrations
  • Electronic gear function
ø48...59 mm
14 bit
CANopen®
na dotaz
EAM580-SC0.5NC6.14180.A
  • Encoder multiturn / CANopen®/SAE J1939
  • Precise magnetic sensing
  • Angular accuracy up to ±0.15°
  • Additional incremental signals
  • High protection IP 65
  • High resistance to shock and vibrations
  • Electronic gear function
ø48...59 mm
14 bit
CANopen®
na dotaz
EAM580-SY6.5L4G.13120.A
  • Encoder multiturn / SSI
  • Precise magnetic sensing
  • Resolution: 25 bit (13 bit ST, 12 bit MT)
  • Angular accuracy up to ±0.15°
  • Additional incremental signals
  • High protection IP 65
  • High resistance to shock and vibrations
ø48...59 mm
13 bit
SSI
na dotaz
EAM580-SY6.5L4G.13120.A
  • Encoder multiturn / SSI
  • Precise magnetic sensing
  • Resolution: 25 bit (13 bit ST, 12 bit MT)
  • Angular accuracy up to ±0.15°
  • Additional incremental signals
  • High protection IP 65
  • High resistance to shock and vibrations
ø48...59 mm
13 bit
SSI
na dotaz
EAM580-SY6.5LC6.14180.A
  • Encoder multiturn / CANopen®/SAE J1939
  • Precise magnetic sensing
  • Angular accuracy up to ±0.15°
  • Additional incremental signals
  • High protection IP 65
  • High resistance to shock and vibrations
  • Electronic gear function
ø48...59 mm
14 bit
CANopen®
na dotaz
EAM580-SY6.5LC6.14180.A
  • Encoder multiturn / CANopen®/SAE J1939
  • Precise magnetic sensing
  • Angular accuracy up to ±0.15°
  • Additional incremental signals
  • High protection IP 65
  • High resistance to shock and vibrations
  • Electronic gear function
ø48...59 mm
14 bit
CANopen®
na dotaz
EAM580-SY6.5NC6.14180.A
  • Encoder multiturn / CANopen®/SAE J1939
  • Precise magnetic sensing
  • Angular accuracy up to ±0.15°
  • Additional incremental signals
  • High protection IP 65
  • High resistance to shock and vibrations
  • Electronic gear function
ø48...59 mm
14 bit
CANopen®
na dotaz
EAM580-SY6.5NC6.14180.A
  • Encoder multiturn / CANopen®/SAE J1939
  • Precise magnetic sensing
  • Angular accuracy up to ±0.15°
  • Additional incremental signals
  • High protection IP 65
  • High resistance to shock and vibrations
  • Electronic gear function
ø48...59 mm
14 bit
CANopen®
na dotaz
EAM580R-BAC.7LC4.A3601.A
  • Encoder multiturn / Analog
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Teach input for adjustment of measuring range
  • Applicable up to PLd (ISO 13849)
ø48...59 mm
Analogové
na dotaz
EAM580R-BAC.7LC4.A3601.A
  • Encoder multiturn / Analog
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Teach input for adjustment of measuring range
  • Applicable up to PLd (ISO 13849)
ø48...59 mm
Analogové
na dotaz
EAM580R-BAC.7LC4.A36A1.A
  • Encoder multiturn / Analog
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Teach input for adjustment of measuring range
  • Applicable up to PLd (ISO 13849)
ø48...59 mm
Analogové
na dotaz
EAM580R-BAC.7LC4.A36A1.A
  • Encoder multiturn / Analog
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Teach input for adjustment of measuring range
  • Applicable up to PLd (ISO 13849)
ø48...59 mm
Analogové
na dotaz
EAM580R-BAC.7LC6.14180.A
  • Encoder multiturn / CANopen®/SAE J1939
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Electronic gear function
  • Applicable up to PLd (ISO 13849)
ø48...59 mm
14 bit
CANopen®
na dotaz
EAM580R-BAC.7LC6.14180.A
  • Encoder multiturn / CANopen®/SAE J1939
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Electronic gear function
  • Applicable up to PLd (ISO 13849)
ø48...59 mm
14 bit
CANopen®
na dotaz
EAM580R-BAC.7LC8.14180.A
  • Encoder multiturn / CANopen® redundant
  • Redundant sensing with galvanical separation
  • Resolution: 32 bit (14 bit ST, 18 bit MT)
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Applicable up to PLd (ISO 13849)
ø48...59 mm
14 bit
CANopen®
na dotaz
EAM580R-BAC.7LC8.14180.A
  • Encoder multiturn / CANopen® redundant
  • Redundant sensing with galvanical separation
  • Resolution: 32 bit (14 bit ST, 18 bit MT)
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Applicable up to PLd (ISO 13849)
ø48...59 mm
14 bit
CANopen®
na dotaz
EAM580R-BAC.7NC4.A3601.A
  • Encoder multiturn / Analog
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Teach input for adjustment of measuring range
  • Applicable up to PLd (ISO 13849)
ø48...59 mm
Analogové
na dotaz
EAM580R-BAC.7NC4.A3601.A
  • Encoder multiturn / Analog
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Teach input for adjustment of measuring range
  • Applicable up to PLd (ISO 13849)
ø48...59 mm
Analogové
na dotaz
EAM580R-BAC.7NC4.A36A1.A
  • Encoder multiturn / Analog
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Teach input for adjustment of measuring range
  • Applicable up to PLd (ISO 13849)
ø48...59 mm
Analogové
na dotaz
EAM580R-BAC.7NC4.A36A1.A
  • Encoder multiturn / Analog
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Teach input for adjustment of measuring range
  • Applicable up to PLd (ISO 13849)
ø48...59 mm
Analogové
na dotaz
EAM580R-BAC.7NC6.14180.A
  • Encoder multiturn / CANopen®/SAE J1939
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Electronic gear function
  • Applicable up to PLd (ISO 13849)
ø48...59 mm
14 bit
CANopen®
na dotaz
EAM580R-BAC.7NC6.14180.A
  • Encoder multiturn / CANopen®/SAE J1939
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Electronic gear function
  • Applicable up to PLd (ISO 13849)
ø48...59 mm
14 bit
CANopen®
na dotaz
EAM580R-BAC.7NC8.14180.A
  • Encoder multiturn / CANopen® redundant
  • Redundant sensing with galvanical separation
  • Resolution: 32 bit (14 bit ST, 18 bit MT)
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Applicable up to PLd (ISO 13849)
ø48...59 mm
14 bit
CANopen®
na dotaz
EAM580R-BAC.7NC8.14180.A
  • Encoder multiturn / CANopen® redundant
  • Redundant sensing with galvanical separation
  • Resolution: 32 bit (14 bit ST, 18 bit MT)
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Applicable up to PLd (ISO 13849)
ø48...59 mm
14 bit
CANopen®
na dotaz
EAM580R-SC0.7LC4.A3601.A
  • Encoder multiturn / Analog
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Teach input for adjustment of measuring range
  • Applicable up to PLd (ISO 13849)
ø48...59 mm
Analogové
na dotaz
EAM580R-SC0.7LC4.A3601.A
  • Encoder multiturn / Analog
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Teach input for adjustment of measuring range
  • Applicable up to PLd (ISO 13849)
ø48...59 mm
Analogové
na dotaz
EAM580R-SC0.7LC4.A36A1.A
  • Encoder multiturn / Analog
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Teach input for adjustment of measuring range
  • Applicable up to PLd (ISO 13849)
ø48...59 mm
Analogové
na dotaz
EAM580R-SC0.7LC4.A36A1.A
  • Encoder multiturn / Analog
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Teach input for adjustment of measuring range
  • Applicable up to PLd (ISO 13849)
ø48...59 mm
Analogové
na dotaz
EAM580R-SC0.7LC6.14180.A
  • Encoder multiturn / CANopen®/SAE J1939
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Electronic gear function
  • Applicable up to PLd (ISO 13849)
ø48...59 mm
14 bit
CANopen®
na dotaz
EAM580R-SC0.7LC6.14180.A
  • Encoder multiturn / CANopen®/SAE J1939
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Electronic gear function
  • Applicable up to PLd (ISO 13849)
ø48...59 mm
14 bit
CANopen®
na dotaz
EAM580R-SC0.7LC8.14180.A
  • Encoder multiturn / CANopen® redundant
  • Redundant sensing with galvanical separation
  • Resolution: 32 bit (14 bit ST, 18 bit MT)
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Applicable up to PLd (ISO 13849)
ø48...59 mm
14 bit
CANopen®
na dotaz
EAM580R-SC0.7LC8.14180.A
  • Encoder multiturn / CANopen® redundant
  • Redundant sensing with galvanical separation
  • Resolution: 32 bit (14 bit ST, 18 bit MT)
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Applicable up to PLd (ISO 13849)
ø48...59 mm
14 bit
CANopen®
na dotaz
EAM580R-SC0.7NC4.A3601.A
  • Encoder multiturn / Analog
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Teach input for adjustment of measuring range
  • Applicable up to PLd (ISO 13849)
ø48...59 mm
Analogové
na dotaz
EAM580R-SC0.7NC4.A3601.A
  • Encoder multiturn / Analog
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Teach input for adjustment of measuring range
  • Applicable up to PLd (ISO 13849)
ø48...59 mm
Analogové
na dotaz
EAM580R-SC0.7NC4.A36A1.A
  • Encoder multiturn / Analog
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Teach input for adjustment of measuring range
  • Applicable up to PLd (ISO 13849)
ø48...59 mm
Analogové
na dotaz
EAM580R-SC0.7NC4.A36A1.A
  • Encoder multiturn / Analog
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Teach input for adjustment of measuring range
  • Applicable up to PLd (ISO 13849)
ø48...59 mm
Analogové
na dotaz
EAM580R-SC0.7NC6.14180.A
  • Encoder multiturn / CANopen®/SAE J1939
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Electronic gear function
  • Applicable up to PLd (ISO 13849)
ø48...59 mm
14 bit
CANopen®
na dotaz
EAM580R-SC0.7NC6.14180.A
  • Encoder multiturn / CANopen®/SAE J1939
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Electronic gear function
  • Applicable up to PLd (ISO 13849)
ø48...59 mm
14 bit
CANopen®
na dotaz
EAM580R-SC0.7NC8.14180.A
  • Encoder multiturn / CANopen® redundant
  • Redundant sensing with galvanical separation
  • Resolution: 32 bit (14 bit ST, 18 bit MT)
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Applicable up to PLd (ISO 13849)
ø48...59 mm
14 bit
CANopen®
na dotaz
EAM580R-SC0.7NC8.14180.A
  • Encoder multiturn / CANopen® redundant
  • Redundant sensing with galvanical separation
  • Resolution: 32 bit (14 bit ST, 18 bit MT)
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Applicable up to PLd (ISO 13849)
ø48...59 mm
14 bit
CANopen®
na dotaz
EAM580R-SY6.7LC4.A3601.A
  • Encoder multiturn / Analog
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Teach input for adjustment of measuring range
  • Applicable up to PLd (ISO 13849)
ø48...59 mm
Analogové
na dotaz
EAM580R-SY6.7LC4.A3601.A
  • Encoder multiturn / Analog
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Teach input for adjustment of measuring range
  • Applicable up to PLd (ISO 13849)
ø48...59 mm
Analogové
na dotaz
EAM580R-SY6.7LC4.A36A1.A
  • Encoder multiturn / Analog
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Teach input for adjustment of measuring range
  • Applicable up to PLd (ISO 13849)
ø48...59 mm
Analogové
na dotaz
EAM580R-SY6.7LC4.A36A1.A
  • Encoder multiturn / Analog
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Teach input for adjustment of measuring range
  • Applicable up to PLd (ISO 13849)
ø48...59 mm
Analogové
na dotaz
EAM580R-SY6.7LC6.14180.A
  • Encoder multiturn / CANopen®/SAE J1939
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Electronic gear function
  • Applicable up to PLd (ISO 13849)
ø48...59 mm
14 bit
CANopen®
na dotaz
EAM580R-SY6.7LC6.14180.A
  • Encoder multiturn / CANopen®/SAE J1939
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Electronic gear function
  • Applicable up to PLd (ISO 13849)
ø48...59 mm
14 bit
CANopen®
na dotaz
EAM580R-SY6.7LC8.14180.A
  • Encoder multiturn / CANopen® redundant
  • Redundant sensing with galvanical separation
  • Resolution: 32 bit (14 bit ST, 18 bit MT)
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Applicable up to PLd (ISO 13849)
ø48...59 mm
14 bit
CANopen®
na dotaz
EAM580R-SY6.7LC8.14180.A
  • Encoder multiturn / CANopen® redundant
  • Redundant sensing with galvanical separation
  • Resolution: 32 bit (14 bit ST, 18 bit MT)
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Applicable up to PLd (ISO 13849)
ø48...59 mm
14 bit
CANopen®
na dotaz
EAM580R-SY6.7NC4.A3601.A
  • Encoder multiturn / Analog
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Teach input for adjustment of measuring range
  • Applicable up to PLd (ISO 13849)
ø48...59 mm
Analogové
na dotaz
EAM580R-SY6.7NC4.A3601.A
  • Encoder multiturn / Analog
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Teach input for adjustment of measuring range
  • Applicable up to PLd (ISO 13849)
ø48...59 mm
Analogové
na dotaz
EAM580R-SY6.7NC4.A36A1.A
  • Encoder multiturn / Analog
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Teach input for adjustment of measuring range
  • Applicable up to PLd (ISO 13849)
ø48...59 mm
Analogové
na dotaz
EAM580R-SY6.7NC4.A36A1.A
  • Encoder multiturn / Analog
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Teach input for adjustment of measuring range
  • Applicable up to PLd (ISO 13849)
ø48...59 mm
Analogové
na dotaz
EAM580R-SY6.7NC6.14180.A
  • Encoder multiturn / CANopen®/SAE J1939
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Electronic gear function
  • Applicable up to PLd (ISO 13849)
ø48...59 mm
14 bit
CANopen®
na dotaz
EAM580R-SY6.7NC6.14180.A
  • Encoder multiturn / CANopen®/SAE J1939
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Electronic gear function
  • Applicable up to PLd (ISO 13849)
ø48...59 mm
14 bit
CANopen®
na dotaz
EAM580R-SY6.7NC8.14180.A
  • Encoder multiturn / CANopen® redundant
  • Redundant sensing with galvanical separation
  • Resolution: 32 bit (14 bit ST, 18 bit MT)
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Applicable up to PLd (ISO 13849)
ø48...59 mm
14 bit
CANopen®
na dotaz
EAM580R-SY6.7NC8.14180.A
  • Encoder multiturn / CANopen® redundant
  • Redundant sensing with galvanical separation
  • Resolution: 32 bit (14 bit ST, 18 bit MT)
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Wire cross section 0,5 mm²
  • Applicable up to PLd (ISO 13849)
ø48...59 mm
14 bit
CANopen®
na dotaz
EN580C.ML-SC10.GH2PB.21160.H
  • Encoder multiturn / bus cover
  • Optical sensing method
  • Resolution: singleturn 21 bit (default: 13 bit), multiturn 16 bit (default: 16 bit)
  • Total resolution up to 31 bit
  • Clamping flange
  • Interface: Profibus-DPV0
  • Internal continuity check with diagnostic information by bus
  • Maximum resistant against magnetic fields
  • Gear factor adjustable via numerator / denominator
ø48...59 mm
≤2097152 / 21 bit
Profibus
na dotaz
EN580C.ML-SC10.HH1PB.21160.A
  • Encoder multiturn / bus cover
  • Optical sensing method
  • Resolution: singleturn 21 bit (default: 13 bit), multiturn 16 bit (default: 16 bit)
  • Total resolution up to 31 bit
  • Clamping flange
  • Interface: Profibus-DPV0
  • Internal continuity check with diagnostic information by bus
  • Maximum resistant against magnetic fields
  • Gear factor adjustable via numerator / denominator
ø48...59 mm
≤2097152 / 21 bit
Profibus
na dotaz
EN580C.ML-SC10.HH2PB.21160.H
  • Encoder multiturn / bus cover
  • Optical sensing method
  • Resolution: singleturn 21 bit (default: 13 bit), multiturn 16 bit (default: 16 bit)
  • Total resolution up to 31 bit
  • Clamping flange
  • Interface: Profibus-DPV0
  • Internal continuity check with diagnostic information by bus
  • Maximum resistant against magnetic fields
  • Gear factor adjustable via numerator / denominator
ø48...59 mm
≤2097152 / 21 bit
Profibus
na dotaz
EN580C.ML-SU06.GH2PB.21160.H
  • Encoder multiturn / bus cover
  • Optical sensing method
  • Resolution: singleturn 21 bit (default: 13 bit), multiturn 16 bit (default: 16 bit)
  • Total resolution up to 31 bit
  • Synchro flange
  • Interface: Profibus-DPV0
  • Internal continuity check with diagnostic information by bus
  • Maximum resistant against magnetic fields
  • Gear factor adjustable via numerator / denominator
ø48...59 mm
≤2097152 / 21 bit
Profibus
na dotaz
EN580C.ML-SU06.HH2PB.21160.H
  • Encoder multiturn / bus cover
  • Optical sensing method
  • Resolution: singleturn 21 bit (default: 13 bit), multiturn 16 bit (default: 16 bit)
  • Total resolution up to 31 bit
  • Synchro flange
  • Interface: Profibus-DPV0
  • Internal continuity check with diagnostic information by bus
  • Maximum resistant against magnetic fields
  • Gear factor adjustable via numerator / denominator
ø48...59 mm
≤2097152 / 21 bit
Profibus
na dotaz
EN580C.ML-T$14.GH2PB.21160.H/MTQ003
  • Encoder multiturn / bus cover
  • Optical sensing method
  • Resolution: singleturn 21 bit (default: 13 bit), multiturn 16 bit (default: 16 bit)
  • Total resolution up to 31 bit
  • Through hollow shaft
  • Interface: Profibus-DPV0
  • Internal continuity check with diagnostic information by bus
  • Maximum resistant against magnetic fields
  • Gear factor adjustable via numerator / denominator
ø48...59 mm
≤2097152 / 21 bit
Profibus
na dotaz
EN580C.ML-TN14.GH2PB.21160.H
  • Encoder multiturn / bus cover
  • Optical sensing method
  • Resolution: singleturn 21 bit (default: 13 bit), multiturn 16 bit (default: 16 bit)
  • Total resolution up to 31 bit
  • Through hollow shaft
  • Interface: Profibus-DPV0
  • Internal continuity check with diagnostic information by bus
  • Maximum resistant against magnetic fields
  • Gear factor adjustable via numerator / denominator
ø48...59 mm
≤2097152 / 21 bit
Profibus
na dotaz
EN580E.IL-SC10.GA1H1.01024.K
  • Size ø58 mm
  • Precise optical sensing
  • Output signal level HTL
  • Pulses per revolution 1024
  • High connection flexibility thanks to flexible connector M12
ø48...59 mm
na dotaz
EN580E.IL-SC10.GA1H1.02048.K
  • Size ø58 mm
  • Precise optical sensing
  • Output signal level HTL
  • Pulses per revolution 2048
  • High connection flexibility thanks to flexible connector M12
ø48...59 mm
na dotaz
EN580E.IL-SC10.GA1H1.04096.K
  • Size ø58 mm
  • Precise optical sensing
  • Output signal level HTL
  • Pulses per revolution 4096
  • High connection flexibility thanks to flexible connector M12
ø48...59 mm
na dotaz
EN580E.IL-SC10.GA1T1.01024.K
  • Size ø58 mm
  • Precise optical sensing
  • Output signal level TTL
  • Pulses per revolution 1024
  • High connection flexibility thanks to flexible connector M12
ø48...59 mm
na dotaz
EN580E.IL-SC10.GA1T1.02048.K
  • Size ø58 mm
  • Precise optical sensing
  • Output signal level TTL
  • Pulses per revolution 2048
  • High connection flexibility thanks to flexible connector M12
ø48...59 mm
na dotaz
EN580E.IL-SC10.GA1T1.04096.K
  • Size ø58 mm
  • Precise optical sensing
  • Output signal level TTL
  • Pulses per revolution 4096
  • High connection flexibility thanks to flexible connector M12
ø48...59 mm
na dotaz
EN580E.IL-SC10.GB1T2.01024.K
  • Size ø58 mm
  • Precise optical sensing
  • Output signal level TTL
  • Pulses per revolution 1024
  • Connection: flange connector M23, 12-pin, CCW
ø48...59 mm
na dotaz
EN580E.IL-SC10.GB1T2.02048.K
  • Size ø58 mm
  • Precise optical sensing
  • Output signal level TTL
  • Pulses per revolution 2048
  • Connection: flange connector M23, 12-pin, CCW
ø48...59 mm
na dotaz
EN580E.IL-SC10.GB1T2.04096.K
  • Size ø58 mm
  • Precise optical sensing
  • Output signal level TTL
  • Pulses per revolution 4096
  • Connection: flange connector M23, 12-pin, CCW
ø48...59 mm
na dotaz
EN580E.IL-SC10.GE1T2.01024.K
  • Size ø58 mm
  • Precise optical sensing
  • Output signal level TTL
  • Pulses per revolution 1024
  • High connection flexibility thanks to flylead connector M23
ø48...59 mm
na dotaz
EN580E.IL-SC10.GE1T2.02048.K
  • Size ø58 mm
  • Precise optical sensing
  • Output signal level TTL
  • Pulses per revolution 2048
  • High connection flexibility thanks to flylead connector M23
ø48...59 mm
na dotaz
EN580E.IL-SC10.GE1T2.04096.K
  • Size ø58 mm
  • Precise optical sensing
  • Output signal level TTL
  • Pulses per revolution 4096
  • High connection flexibility thanks to flylead connector M23
ø48...59 mm
na dotaz
EN580E.ML-SC10.G$$1B.13120.H/11249978
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Clamping flange
  • Maximum resistant against magnetic fields
  • Connection: flange connector M23, 12-pin, CW (assignment according to option 3252)
ø48...59 mm
13 bit
SSI
na dotaz
EN580E.ML-SC10.G$$1B.13120.H/11249978
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Clamping flange
  • Maximum resistant against magnetic fields
  • Connection: flange connector M23, 12-pin, CW (assignment according to option 3252)
ø48...59 mm
13 bit
SSI
na dotaz
EN580E.ML-SC10.G$$1G.13120.H/11250117
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Clamping flange
  • Maximum resistant against magnetic fields
  • Connection: flange connector M23, 12-pin, CW (assignment according to option 3252)
ø48...59 mm
13 bit
SSI
na dotaz
EN580E.ML-SC10.G$$1G.13120.H/11250117
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Clamping flange
  • Maximum resistant against magnetic fields
  • Connection: flange connector M23, 12-pin, CW (assignment according to option 3252)
ø48...59 mm
13 bit
SSI
na dotaz
EN580E.ML-SC10.GA11B.13120.H
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Clamping flange
  • Maximum resistant against magnetic fields
  • High connection flexibility thanks to flexible connector M12
ø48...59 mm
13 bit
SSI
na dotaz
EN580E.ML-SC10.GA11G.13120.H
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Clamping flange
  • Maximum resistant against magnetic fields
  • High connection flexibility thanks to flexible connector M12
ø48...59 mm
13 bit
SSI
na dotaz
EN580E.ML-SC10.GA1B1.13120.H
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Clamping flange
  • Maximum resistant against magnetic fields
  • High connection flexibility thanks to flexible connector M12
ø48...59 mm
13 bit
BiSS C Certified
na dotaz
EN580E.ML-SC10.GB11B.13120.H
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Clamping flange
  • Maximum resistant against magnetic fields
  • Connection: flange connector M23, 12-pin, CCW
ø48...59 mm
13 bit
SSI
na dotaz
EN580E.ML-SC10.GB11G.13120.H
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Clamping flange
  • Maximum resistant against magnetic fields
  • Connection: flange connector M23, 12-pin, CCW
ø48...59 mm
13 bit
SSI
na dotaz
EN580E.ML-SC10.GB1B1.13120.H
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Clamping flange
  • Maximum resistant against magnetic fields
  • Connection: flange connector M23, 12-pin, CCW
ø48...59 mm
13 bit
BiSS C Certified
na dotaz
EN580E.ML-SC10.GE11B.13120.H
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Clamping flange
  • Maximum resistant against magnetic fields
  • High connection flexibility thanks to flylead connector
    M23
ø48...59 mm
13 bit
SSI
na dotaz
EN580E.ML-SC10.GE11G.13120.H
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Clamping flange
  • Maximum resistant against magnetic fields
  • High connection flexibility thanks to flylead connector
    M23
ø48...59 mm
13 bit
SSI
na dotaz
EN580E.ML-SC10.GE1B1.13120.H
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Clamping flange
  • Maximum resistant against magnetic fields
  • High connection flexibility thanks to flylead connector M23
ø48...59 mm
13 bit
BiSS C Certified
na dotaz
EN580E.ML-SU06.G$$1B.13120.H/11250118
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Synchro flange
  • Maximum resistant against magnetic fields
  • Connection: flange connector M23, 12-pin, CW (assignment according to option 3252)
ø48...59 mm
13 bit
SSI
na dotaz
EN580E.ML-SU06.G$$1B.13120.H/11250118
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Synchro flange
  • Maximum resistant against magnetic fields
  • Connection: flange connector M23, 12-pin, CW (assignment according to option 3252)
ø48...59 mm
13 bit
SSI
na dotaz
EN580E.ML-SU06.G$$1G.13120.H/11250119
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Synchro flange
  • Maximum resistant against magnetic fields
  • Connection: flange connector M23, 12-pin, CW (assignment according to option 3252)
ø48...59 mm
13 bit
SSI
na dotaz
EN580E.ML-SU06.G$$1G.13120.H/11250119
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Synchro flange
  • Maximum resistant against magnetic fields
  • Connection: flange connector M23, 12-pin, CW (assignment according to option 3252)
ø48...59 mm
13 bit
SSI
na dotaz
EN580E.ML-SU06.GA11B.13120.H
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Synchro flange
  • Maximum resistant against magnetic fields
  • High connection flexibility thanks to flexible connector M12
ø48...59 mm
13 bit
SSI
na dotaz
EN580E.ML-SU06.GA11G.13120.H
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Synchro flange
  • Maximum resistant against magnetic fields
  • High connection flexibility thanks to flexible connector M12
ø48...59 mm
13 bit
SSI
na dotaz
EN580E.ML-SU06.GA1B1.13120.H
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Synchro flange
  • Maximum resistant against magnetic fields
  • High connection flexibility thanks to flexible connector M12
ø48...59 mm
13 bit
BiSS C Certified
na dotaz
EN580E.ML-SU06.GB11B.13120.H
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Synchro flange
  • Maximum resistant against magnetic fields
  • Connection: flange connector M23, 12-pin, CCW
ø48...59 mm
13 bit
SSI
na dotaz
EN580E.ML-SU06.GB11G.13120.H
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Synchro flange
  • Maximum resistant against magnetic fields
  • Connection: flange connector M23, 12-pin, CCW
ø48...59 mm
13 bit
SSI
na dotaz
EN580E.ML-SU06.GB1B1.13120.H
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Synchro flange
  • Maximum resistant against magnetic fields
  • Connection: flange connector M23, 12-pin, CCW
ø48...59 mm
13 bit
BiSS C Certified
na dotaz
EN580E.ML-SU06.GE11B.13120.H
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Synchro flange
  • Maximum resistant against magnetic fields
  • High connection flexibility thanks to flylead connector
    M23
ø48...59 mm
13 bit
SSI
na dotaz
EN580E.ML-SU06.GE11G.13120.H
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Synchro flange
  • Maximum resistant against magnetic fields
  • High connection flexibility thanks to flylead connector
    M23
ø48...59 mm
13 bit
SSI
na dotaz
EN580E.ML-SU06.GE1B1.13120.H
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Synchro flange
  • Maximum resistant against magnetic fields
  • High connection flexibility thanks to flylead connector M23
ø48...59 mm
13 bit
BiSS C Certified
na dotaz
EN580E.ML-TT12.G$$1B.13120.H/11250130
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Maximum resistant against magnetic fields
  • Connection: flange connector M23, 12-pin, CW (assignment according to option 3252)
ø48...59 mm
13 bit
SSI
na dotaz
EN580E.ML-TT12.G$$1B.13120.H/11250130
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Maximum resistant against magnetic fields
  • Connection: flange connector M23, 12-pin, CW (assignment according to option 3252)
ø48...59 mm
13 bit
SSI
na dotaz
EN580E.ML-TT12.G$$1G.13120.H/11250131
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Maximum resistant against magnetic fields
  • Connection: flange connector M23, 12-pin, CW (assignment according to option 3252)
ø48...59 mm
13 bit
SSI
na dotaz
EN580E.ML-TT12.G$$1G.13120.H/11250131
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Maximum resistant against magnetic fields
  • Connection: flange connector M23, 12-pin, CW (assignment according to option 3252)
ø48...59 mm
13 bit
SSI
na dotaz
EN580E.ML-TT12.GA11B.13120.H
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Maximum resistant against magnetic fields
  • High connection flexibility thanks to flexible connector M12
ø48...59 mm
13 bit
SSI
na dotaz
EN580E.ML-TT12.GA11G.13120.H
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Maximum resistant against magnetic fields
  • High connection flexibility thanks to flexible connector M12
ø48...59 mm
13 bit
SSI
na dotaz
EN580E.ML-TT12.GA1B1.13120.H
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Maximum resistant against magnetic fields
  • High connection flexibility thanks to flexible connector M12
ø48...59 mm
13 bit
BiSS C Certified
na dotaz
EN580E.ML-TT12.GB11B.13120.H
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Maximum resistant against magnetic fields
  • Connection: flange connector M23, 12-pin, CCW
ø48...59 mm
13 bit
SSI
na dotaz
EN580E.ML-TT12.GB11G.13120.H
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Maximum resistant against magnetic fields
  • Connection: flange connector M23, 12-pin, CCW
ø48...59 mm
13 bit
SSI
na dotaz
EN580E.ML-TT12.GB1B1.13120.H
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Maximum resistant against magnetic fields
  • Connection: flange connector M23, 12-pin, CCW
ø48...59 mm
13 bit
BiSS C Certified
na dotaz
EN580E.ML-TT12.GE11B.13120.H
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Maximum resistant against magnetic fields
  • High connection flexibility thanks to flylead connector
    M23
ø48...59 mm
13 bit
SSI
na dotaz
EN580E.ML-TT12.GE11G.13120.H
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Maximum resistant against magnetic fields
  • High connection flexibility thanks to flylead connector
    M23
ø48...59 mm
13 bit
SSI
na dotaz
EN580E.ML-TT12.GE1B1.13120.H
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Maximum resistant against magnetic fields
  • High connection flexibility thanks to flylead connector M23
ø48...59 mm
13 bit
BiSS C Certified
na dotaz
EN580E.ML-TT14.G$$1B.13120.H/11250132
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Maximum resistant against magnetic fields
  • Connection: flange connector M23, 12-pin, CW (assignment according to option 3252)
ø48...59 mm
13 bit
SSI
na dotaz
EN580E.ML-TT14.G$$1B.13120.H/11250132
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Maximum resistant against magnetic fields
  • Connection: flange connector M23, 12-pin, CW (assignment according to option 3252)
ø48...59 mm
13 bit
SSI
na dotaz
EN580E.ML-TT14.G$$1G.13120.H/11250133
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Maximum resistant against magnetic fields
  • Connection: flange connector M23, 12-pin, CW (assignment according to option 3252)
ø48...59 mm
13 bit
SSI
na dotaz
EN580E.ML-TT14.G$$1G.13120.H/11250133
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Maximum resistant against magnetic fields
  • Connection: flange connector M23, 12-pin, CW (assignment according to option 3252)
ø48...59 mm
13 bit
SSI
na dotaz
EN580E.ML-TT14.GA11B.13120.H
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Maximum resistant against magnetic fields
  • High connection flexibility thanks to flexible connector M12
ø48...59 mm
13 bit
SSI
na dotaz
EN580E.ML-TT14.GA11G.13120.H
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Maximum resistant against magnetic fields
  • High connection flexibility thanks to flexible connector M12
ø48...59 mm
13 bit
SSI
na dotaz
EN580E.ML-TT14.GA1B1.13120.H
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Maximum resistant against magnetic fields
  • High connection flexibility thanks to flexible connector M12
ø48...59 mm
13 bit
BiSS C Certified
na dotaz
EN580E.ML-TT14.GB11B.13120.H
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Maximum resistant against magnetic fields
  • Connection: flange connector M23, 12-pin, CCW
ø48...59 mm
13 bit
SSI
na dotaz
EN580E.ML-TT14.GB11G.13120.H
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Maximum resistant against magnetic fields
  • Connection: flange connector M23, 12-pin, CCW
ø48...59 mm
13 bit
SSI
na dotaz
EN580E.ML-TT14.GB1B1.13120.H
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Maximum resistant against magnetic fields
  • Connection: flange connector M23, 12-pin, CCW
ø48...59 mm
13 bit
BiSS C Certified
na dotaz
EN580E.ML-TT14.GE11B.13120.H
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Maximum resistant against magnetic fields
  • High connection flexibility thanks to flylead connector
    M23
ø48...59 mm
13 bit
SSI
na dotaz
EN580E.ML-TT14.GE11G.13120.H
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Maximum resistant against magnetic fields
  • High connection flexibility thanks to flylead connector
    M23
ø48...59 mm
13 bit
SSI
na dotaz
EN580E.ML-TT14.GE1B1.13120.H
  • Absolute encoder multiturn
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Maximum resistant against magnetic fields
  • High connection flexibility thanks to flylead connector M23
ø48...59 mm
13 bit
BiSS C Certified
na dotaz
G0A2H
  • Encoder singleturn / SSI
  • Optical sensing method
  • Resolution: 14 bit
  • Through hollow shaft up to ø14 mm
  • High reliability by self-diagnostics
  • Counting direction input
  • Electronic setting of zero point
ø48...59 mm
14 bit
SSI
SSI + Inkrementální
na dotaz
G0AMH
  • Encoder singleturn / bus cover
  • Optical sensing method
  • Resolution: singleturn 13 bit
  • Through hollow shaft up to ø14 mm
  • CANopen®, EtherNet/IP, Profibus, PROFINET
  • High reliability by self-diagnostics
  • Encoder for parameterization
  • Maximum resistant against magnetic fields
ø48...59 mm
13 bit
CANopen®
EtherNet/IP
Profibus
PROFINET
na dotaz
G0M2H
  • Encoder multiturn / SSI
  • Optical sensing method
  • Resolution: singleturn 14 bit, multiturn 12 bit
  • Through hollow shaft up to ø14 mm
  • Compact design
  • Cost-efficient mounting
  • High reliability by self-diagnostics
  • Counting direction input
  • Available with additional incremental output
  • Maximum resistant against magnetic fields
ø48...59 mm
14 bit
SSI
SSI + Inkrementální
na dotaz
G0MMH
  • Encoder multiturn / bus cover
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 16 bit
  • Through hollow shaft up to ø14 mm
  • Interface: Profibus-DP
  • High reliability by self-diagnostics
  • Encoder for parameterization
  • Maximum resistant against magnetic fields
ø48...59 mm
13 bit
Profibus
na dotaz
G0P5H - CANopen®
  • Encoder multiturn / CANopen®
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 16 bit
  • Through hollow shaft up to ø14 mm
  • LED status indicator
  • Galvanic isolation
  • CANopen® Profile CIA DSP 406
  • Permanent check of code continuity
  • Maximum resistant against magnetic fields
ø48...59 mm
13 bit
CANopen®
na dotaz
G1M2H
  • Encoder multiturn / SSI
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Through hollow shaft of 1" diameter
  • Electronic setting of zero point
  • Counting direction input
  • High resistance to shock and vibrations
  • Suitable for high positive, negative accelerations
ø60...90 mm
13 bit
SSI
na dotaz
G1MMH
  • Encoder multiturn / bus cover
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 16 bit
  • Through hollow shaft of 1"
  • High flexibility in mounting and maintenance
  • Resolution, baud rate, node ID optionally selectable
  • Code continuity check optional by bus
ø60...90 mm
13 bit
CANopen®
Profibus
na dotaz
G2M2H
  • Encoder multiturn / SSI
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Through hollow shaft of 2" diameter
  • Electronic setting of zero point
  • Counting direction input
  • High resistance to shock and vibrations
  • Suitable for high positive, negative accelerations
ø90 - 160 mm
13 bit
SSI
na dotaz
G2MMH
  • Encoder multiturn / bus cover
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 16 bit
  • Through hollow shaft of 2" diameter
  • High flexibility in mounting and maintenance
  • Resolution, baud rate, node ID optionally selectable
  • Code continuity check optional by bus
ø90 - 160 mm
13 bit
CANopen®
Profibus
na dotaz
GA210 - parallel
  • Encoder singleturn / parallel
  • Optical sensing method
  • Resolution: 10 bit
  • Clamping or synchro flange
  • Low-cost encoder
  • Short-circuit proof push-pull outputs
  • Output release by enable signal
  • Extreme compact design
  • Reset input
ø48...59 mm
≤10 bit
Parallel
na dotaz
GA211 - parallel
  • Encoder singleturn / parallel
  • Optical sensing method
  • Resolution: 10 bit
  • Clamping or synchro flange
  • Low-cost encoder
  • Short-circuit proof push-pull outputs
  • Output release by enable signal
  • Extreme compact design
  • Reset input
ø48...59 mm
≤10 bit
Parallel
na dotaz
GA240 - parallel
  • Encoder singleturn / parallel
  • Optical sensing method
  • Resolution: 13 bit
  • Clamping flange
  • Short-circuit proof push-pull outputs
  • Output release by enable signal
  • Permanent check of code continuity
ø48...59 mm
13 bit
Parallel
na dotaz
GA240 - SSI
  • Encoder singleturn / SSI
  • Optical sensing method
  • Resolution: 14 bit
  • Clamping flange
  • Electronic setting of zero point
  • Available with additional incremental output
ø48...59 mm
14 bit
SSI
SSI + Inkrementální
na dotaz
GA241 - parallel
  • Encoder singleturn / parallel
  • Optical sensing method
  • Resolution: 13 bit
  • Synchro flange
  • Short-circuit proof push-pull outputs
  • Output release by enable signal
  • Permanent check of code continuity
ø48...59 mm
13 bit
Parallel
na dotaz
GA241 - SSI
  • Encoder singleturn / SSI
  • Optical sensing method
  • Resolution: 14 bit
  • Synchro flange
  • Electronic setting of zero point
  • Available with additional incremental output
ø48...59 mm
14 bit
SSI
SSI + Inkrementální
na dotaz
GBA2H
  • High resolution encoder singleturn / SSI
  • Optical sensing method
  • Resolution: max. 19 bit
  • Through hollow shaft up to ø14 mm
  • High reliability by self-diagnostics
  • Counting direction input
  • Electronic setting of zero point
  • Available with additional incremental output
ø48...59 mm
19 Bit
SSI
SSI + Inkrementální
na dotaz
GBA2S
  • High resolution encoder singleturn / SSI
  • Optical sensing method
  • Resolution: max. 19 bit
  • Blind hollow shaft ø12...ø15 mm
  • Electronic setting of zero point
  • Counting direction input
  • Suitable for high positive, negative accelerations
  • Available with additional incremental output
ø48...59 mm
19 Bit
SSI
SSI + Inkrementální
na dotaz
GBA2W
  • High resolution encoder singleturn / SSI
  • Optical sensing method
  • Resolution: max. 19 bit
  • Clamping or synchro flange
  • Electronic setting of zero point
  • Counting direction input
  • Suitable for high positive, negative accelerations
  • Available with additional incremental output
ø48...59 mm
19 Bit
SSI
SSI + Inkrementální
na dotaz
GBAMH
  • Encoder singleturn / bus cover
  • Optical sensing method
  • Total resolution up to 18 bit
  • Through hollow shaft up to ø14 mm
  • CANopen®, EtherNet/IP, Profibus, PROFINET
  • Cost-efficient mounting
  • Code continuity check optional by bus
  • Maximum resistant against magnetic fields
ø48...59 mm
18 bit
CANopen®
EtherNet/IP
Profibus
PROFINET
na dotaz
GBAMS
  • Encoder singleturn / bus cover
  • Optical sensing method
  • Total resolution up to 18 bit
  • Blind hollow shaft ø12...ø15 mm
  • CANopen®, EtherCAT, EtherNet/IP, SAEJ1939, PROFINET, Profibus, SSI
  • Cost-efficient mounting
  • Code continuity check optional by bus
  • Maximum resistant against magnetic fields
ø48...59 mm
18 bit
CANopen®
EtherCAT
EtherNet/IP
Profibus
PROFINET
SAE J1939
SSI
na dotaz
GBAMW
  • Encoder multiturn / bus cover
  • Optical sensing method
  • Total resolution up to 18 bit
  • Clamping or synchro flange
  • High resistance to shock and vibrations
  • CANopen®, EtherCAT, EtherNet/IP, SAEJ1939, PROFINET, Profibus, SSI
  • Code continuity check optional by bus
  • Maximum resistant against magnetic fields
ø48...59 mm
18 bit
CANopen®
EtherCAT
EtherNet/IP
Profibus
PROFINET
SAE J1939
SSI
na dotaz
GBM2H
  • High resolution encoder multiturn / SSI
  • Optical sensing method
  • Resolution: singleturn 18 bit, multiturn 12 bit
  • Through hollow shaft up to ø14 mm
  • High reliability by self-diagnostics
  • Counting direction input
  • Electronic setting of zero point
  • Available with additional incremental output
  • Maximum resistant against magnetic fields
ø48...59 mm
18 bit
SSI
SSI + Inkrementální
na dotaz
GBM2S
  • High resolution encoder multiturn / SSI
  • Optical sensing method
  • Resolution: singleturn 18 bit, multiturn 12 bit
  • Blind hollow shaft ø12...ø15 mm
  • High reliability by self-diagnostics
  • Counting direction input
  • Electronic setting of zero point
  • Available with additional incremental output
  • Maximum resistant against magnetic fields
ø48...59 mm
18 bit
SSI
SSI + Inkrementální
na dotaz
GBM2W
  • High resolution encoder multiturn / SSI
  • Optical sensing method
  • Resolution: singleturn 18 bit, multiturn 12 bit
  • Electronic setting of zero point
  • Counting direction input
  • Available with additional incremental output
  • Maximum resistant against magnetic fields
ø48...59 mm
18 bit
SSI
SSI + Inkrementální
na dotaz
GBMMH
  • Encoder multiturn / bus cover
  • Optical sensing method
  • Total resolution up to 31 bit
  • Through hollow shaft up to ø14 mm
  • CANopen®, EtherNet/IP, Profibus, PROFINET
  • Cost-efficient mounting
  • Code continuity check optional by bus
  • Maximum resistant against magnetic fields
ø48...59 mm
18 bit
CANopen®
EtherNet/IP
Profibus
PROFINET
na dotaz
GBMMS
  • Encoder multiturn / bus cover
  • Optical sensing method
  • Total resolution up to 31 bit
  • Blind hollow shaft ø12...ø15 mm
  • CANopen®, EtherCAT, EtherNet/IP, SAEJ1939, PROFINET, Profibus, SSI
  • Cost-efficient mounting
  • Code continuity check optional by bus
  • Maximum resistant against magnetic fields
ø48...59 mm
18 bit
CANopen®
EtherCAT
EtherNet/IP
Profibus
PROFINET
SAE J1939
SSI
na dotaz
GBMMW
  • Encoder multiturn / bus cover
  • Optical sensing method
  • Total resolution up to 31 bit
  • Clamping or synchro flange
  • High resistance to shock and vibrations
  • CANopen®, EtherCAT, EtherNet/IP, SAEJ1939, PROFINET, Profibus, SSI
  • Code continuity check optional by bus
  • Maximum resistant against magnetic fields
ø48...59 mm
18 bit
CANopen®
EtherCAT
EtherNet/IP
Profibus
PROFINET
SAE J1939
SSI
na dotaz
GBP5H - CANopen®
  • Encoder multiturn / CANopen®
  • Optical sensing method
  • Resolution: singleturn 18 bit, multiturn 14 bit
  • Through hollow shaft up to ø14 mm
  • High resistance to shock and vibrations
  • LED status indicator
  • CANopen® Profile CIA DSP 406
  • Permanent check of code continuity
  • Maximum resistant against magnetic fields
ø48...59 mm
18 bit
CANopen®
na dotaz
GBP5S - CANopen®
  • Encoder multiturn / CANopen®
  • Optical sensing method
  • Resolution: singleturn 18 bit, multiturn 14 bit
  • Blind hollow shaft up to ø15 mm
  • High resistance to shock and vibrations
  • LED status indicator
  • CANopen® Profile CIA DSP 406
  • Permanent check of code continuity
  • Maximum resistant against magnetic fields
ø48...59 mm
18 bit
CANopen®
na dotaz
GBP5W - CANopen®
  • Encoder multiturn / CANopen®
  • Optical sensing method
  • Resolution: singleturn 18 bit, multiturn 14 bit
  • Clamping or synchro flange
  • High resistance to shock and vibrations
  • LED status indicator
  • CANopen® Profile CIA DSP 406
  • Permanent check of code continuity
  • Maximum resistant against magnetic fields
ø48...59 mm
18 bit
CANopen®
na dotaz
GBU5W - CANopen®
  • Encoder singleturn / CANopen®
  • Optical sensing method
  • Resolution: singleturn 18 bit
  • Clamping or synchro flange
  • High resistance to shock and vibrations
  • LED status indicator
  • CANopen® Profile CIA DSP 406
  • Permanent check of code continuity
ø48...59 mm
18 bit
CANopen®
na dotaz
GE244
  • Encoder singleturn / SSI
  • Stainless steel design V4A
  • Optical sensing method
  • Resolution: max. 14 bit
  • Clamping flange
  • Extreme resistance to shock and vibration
  • Electronic setting of zero point
  • Available with additional incremental output
  • Viton sealing resistant against chemical agents
ø48...59 mm
14 bit
SSI
SSI + Inkrementální
na dotaz
GE404
  • Encoder multiturn / SSI
  • Stainless steel design V4A
  • Optical sensing method
  • Resolution: singleturn 14 bit, multiturn 12 bit
  • Electronic setting of zero point
  • Counting direction input
  • Available with additional incremental output
  • Viton sealing resistant against chemical agents
  • Maximum resistant against magnetic fields
ø48...59 mm
14 bit
SSI
na dotaz
GEMMH
  • Encoder multiturn / bus cover
  • Stainless steel design
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 16 bit
  • Through hollow shaft up to ø14 mm
  • CANopen®, EtherNet/IP, Profibus-DP, PROFINET
  • High reliability by self-diagnostics
  • Encoder for parameterization
  • Resistant against magnetic fields
ø48...59 mm
13 bit
CANopen®
EtherNet/IP
Profibus
PROFINET
na dotaz
GEMMW
  • Encoder multiturn / bus cover
  • Stainless steel design
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 16 bit
  • Clamping or synchro flange
  • CANopen®, Profibus-DP
  • Material: stainless steel 1.4305
  • Maximum resistant against magnetic fields
ø48...59 mm
13 bit
CANopen®
Profibus
na dotaz
GFMMW
  • Encoder multiturn / bus cover
  • Stainless steel design V4A
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 16 bit
  • Clamping flange
  • CANopen®, EtherNet/IP, Profibus-DP, PROFINET
  • Material: stainless steel 1.4404
  • Maximum resistant against magnetic fields
ø48...59 mm
13 bit
CANopen®
EtherNet/IP
Profibus
PROFINET
na dotaz
GM400.010A102
  • Encoder multiturn / SSI
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Clamping flange
  • Electronic setting of zero point
  • Counting direction input
  • Maximum resistant against magnetic fields
ø48...59 mm
13 bit
SSI
na dotaz
GM400.010A102
  • Encoder multiturn / SSI
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Clamping flange
  • Electronic setting of zero point
  • Counting direction input
  • Maximum resistant against magnetic fields
ø48...59 mm
13 bit
SSI
na dotaz
GM400.010A304
  • Encoder multiturn / SSI
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Clamping flange
  • Electronic setting of zero point
  • Counting direction input
  • Maximum resistant against magnetic fields
ø48...59 mm
13 bit
SSI
na dotaz
GM400.010A304
  • Encoder multiturn / SSI
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Clamping flange
  • Electronic setting of zero point
  • Counting direction input
  • Maximum resistant against magnetic fields
ø48...59 mm
13 bit
SSI
na dotaz
GM400.010A324
  • Encoder multiturn / SSI
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Clamping flange
  • Electronic setting of zero point
  • Counting direction input
  • Maximum resistant against magnetic fields
ø48...59 mm
13 bit
SSI
na dotaz
GM400.010A324
  • Encoder multiturn / SSI
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Clamping flange
  • Electronic setting of zero point
  • Counting direction input
  • Maximum resistant against magnetic fields
ø48...59 mm
13 bit
SSI
na dotaz
GM401
  • Encoder multiturn / SSI
  • Optical sensing method
  • Resolution: max. singleturn 14 bit, multiturn 16 bit
  • Synchro flange
  • Electronic setting of zero point
  • Counting direction input
  • Available with additional incremental output
  • Maximum resistant against magnetic fields
ø48...59 mm
14 bit
SSI
SSI + Inkrementální
na dotaz
GXA1W - parallel
  • Encoder singleturn / parallel
  • Optical sensing method
  • Clamping or synchro flange
  • Encoder with capped gray code
  • Short-circuit proof push-pull outputs
  • Output release by enable signal
ø48...59 mm
12 bit
Parallel
na dotaz
GXA2S
  • Encoder singleturn / SSI
  • Optical sensing method
  • Resolution: 14 bit
  • Blind hollow shaft ø12...ø15 mm
  • Electronic setting of zero point
  • Counting direction input
  • Suitable for high positive, negative accelerations
  • Available with additional incremental output
ø48...59 mm
14 bit
SSI
SSI + Inkrementální
na dotaz
GXAMS
  • Encoder singleturn / bus cover
  • Optical sensing method
  • Resolution: 13 bit
  • Blind hollow shaft ø12...15 mm
  • Extreme compact design
  • CANopen®, EtherCAT, EtherNet/IP, SAEJ1939, PROFINET, Profibus, SSI
  • Code continuity check optional by bus
  • Maximum resistant against magnetic fields
ø48...59 mm
13 bit
CANopen®
EtherCAT
EtherNet/IP
Profibus
PROFINET
SAE J1939
SSI
na dotaz
GXAMW
  • Encoder singleturn / bus cover
  • Optical sensing method
  • Resolution: 13 bit
  • Clamping or synchro flange
  • CANopen®, EtherCAT, EtherNet/IP, SAEJ1939, PROFINET, Profibus, SSI
  • Code continuity check optional by bus
  • Maximum resistant against magnetic fields
ø48...59 mm
13 bit
CANopen®
EtherCAT
EtherNet/IP
Profibus
PROFINET
SAE J1939
SSI
na dotaz
GXM2S
  • Encoder multiturn / SSI
  • Optical sensing method
  • Resolution: singleturn 14 bit, multiturn 12 bit
  • Blind hollow shaft ø12...ø15 mm
  • Electronic setting of zero point
  • Counting direction input
  • Suitable for high positive, negative accelerations
  • Available with additional incremental output
  • Maximum resistant against magnetic fields
ø48...59 mm
14 bit
SSI
SSI + Inkrementální
na dotaz
GXM7S - RS485
  • Encoder multiturn / RS485
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Blind hollow shaft ø12 mm / ø14 mm
  • Fieldbus protocol
  • Up to 4 bus users
  • Bus access according to master/slave principle
  • Maximum resistant against magnetic fields
ø48...59 mm
13 bit
RS485
na dotaz
GXM7W - RS485
  • Encoder multiturn / RS485
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Clamping or synchro flange
  • Fieldbus protocol
  • Up to 4 bus users
  • Bus access according to master/slave principle
  • Maximum resistant against magnetic fields
ø48...59 mm
13 bit
RS485
na dotaz
GXM7W - SLIN
  • Encoder multiturn / SLIN
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 12 bit
  • Clamping or synchro flange
  • SLIN protocol
  • Up to 8 bus users
  • Bus access according to master/slave principle
  • Permanent check of code continuity
  • Maximum resistant against magnetic fields
ø48...59 mm
13 bit
RS485
na dotaz
GXMMS
  • Encoder multiturn / bus cover
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 16 bit
  • Blind hollow shaft ø12...15 mm
  • Extreme compact design
  • Interface: Profibus-DP
  • Code continuity check optional by bus
  • Maximum resistant against magnetic fields
ø48...59 mm
13 bit
Profibus
na dotaz
GXMMS + incremental
  • Encoder multiturn / bus cover
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 16 bit
  • Blind hollow shaft ø12...ø15 mm
  • High resistance to shock and vibrations
  • CANopen®, EtherCAT, EtherNet/IP, SAEJ1939, PROFINET, Profibus, SSI
  • Code continuity check optional by bus
  • Two incremental tracks A and B
  • Maximum resistant against magnetic fields
ø48...59 mm
13 bit
CANopen®
EtherCAT
EtherNet/IP
Profibus
PROFINET
SAE J1939
SSI
na dotaz
GXMMW
  • Encoder multiturn / bus cover
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 16 bit
  • Clamping or synchro flange
  • Interface: Profibus-DP
  • Code continuity check optional by bus
  • Maximum resistant against magnetic fields
ø48...59 mm
13 bit
Profibus
na dotaz
GXMMW + incremental
  • Encoder multiturn / bus cover
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 16 bit
  • Clamping or synchro flange
  • High resistance to shock and vibrations
  • CANopen®, EtherCAT, EtherNet/IP, SAEJ1939, PROFINET, Profibus, SSI
  • Code continuity check optional by bus
  • Two incremental tracks A and B
  • Maximum resistant against magnetic fields
ø48...59 mm
13 bit
CANopen®
EtherCAT
EtherNet/IP
Profibus
PROFINET
SAE J1939
SSI
na dotaz
GXN1H
  • Encoder multiturn / parallel
  • Optical sensing method
  • Resolution: singleturn 12 bit, multiturn 12 bit
  • Through hollow shaft ø14 mm
  • 250 cams freely programmable
  • 16 parallel outputs
  • Encoder programming by Windows software
  • RS232 encoder programming interface
  • Electronic setting to preset
ø60...90 mm
12 bit
Parallel
na dotaz
GXN1W
  • Encoder multiturn / parallel
  • Optical sensing method
  • Resolution: singleturn 12 bit, multiturn 12 bit
  • Clamping or synchro flange
  • 250 cams freely programmable
  • 16 parallel outputs
  • Encoder programming by Windows software
  • RS232 encoder programming interface
ø48...59 mm
12 bit
Parallel
na dotaz
GXP1H - parallel
  • Encoder multiturn / parallel
  • Optical sensing method
  • Resolution: singleturn 12 bit, multiturn 12 bit
  • Through hollow shaft ø14 mm
  • Resolution, code and preset programmable
  • RS232 encoder programming interface
  • Electronic setting to preset
  • Cost-efficient mounting
ø60...90 mm
12 bit
Parallel
na dotaz
GXP1W - parallel
  • Encoder multiturn / parallel
  • Optical sensing method
  • Resolution: singleturn 12 bit, multiturn 12 bit
  • Clamping or synchro flange
  • Resolution, code and preset programmable
  • RS232 encoder programming interface
ø48...59 mm
12 bit
Parallel
na dotaz
GXP5S - CANopen®
  • Encoder multiturn / CANopen®
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 16 bit
  • Blind hollow shaft ø12...ø15 mm
  • LED status indicator
  • CANopen® Profile CIA DSP 406
  • Permanent check of code continuity
  • Maximum resistant against magnetic fields
ø48...59 mm
13 bit
CANopen®
na dotaz
GXP5W - CANopen®
  • Encoder multiturn / CANopen®
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 16 bit
  • Clamping or synchro flange
  • LED status indicator
  • CANopen® Profile CIA DSP 406 / DSP 417 Lift
  • Permanent check of code continuity
  • Maximum resistant against magnetic fields
ø48...59 mm
13 bit
CANopen®
na dotaz
GXU5W - CANopen®
  • Encoder singleturn / CANopen®
  • Optical sensing method
  • Resolution: singleturn 13 bit
  • Clamping or synchro flange
  • LED status indicator
  • CANopen® Profile CIA DSP 406
  • Permanent check of code continuity
ø48...59 mm
13 bit
CANopen®
na dotaz
X 700 - CANopen®
  • Encoder multiturn / CANopen® / ATEX
  • Optical sensing method
  • Resolution: singleturn 18 bit, multiturn 14 bit
  • Clamping flange with solid shaft ø10 mm
  • Explosion protection per Ex II 2D/2G (ATEX)
  • Device class 2 / zone 1 (gas), zone 21 (dust)
  • Galvanic isolation
  • Maximum resistant against magnetic fields
ø60...90 mm
18 bit
CANopen®
na dotaz
X 700 - Profibus
  • Encoder multiturn / Profibus / ATEX
  • Optical sensing method
  • Resolution: singleturn 13 bit, multiturn 16 bit
  • Clamping flange with solid shaft ø10 mm
  • Explosion protection per Ex II 2D/2G (ATEX)
  • Device class 2 / zone 1 (gas), zone 21 (dust)
  • Maximum resistant against magnetic fields
ø60...90 mm
13 bit
Profibus
na dotaz
X 700 - SSI - Multiturn
  • Encoder multiturn / SSI / ATEX
  • Optical sensing method
  • Resolution: multiturn 13 + 12 bit
  • Clamping flange with solid shaft ø10 mm
  • Explosion protection per Ex II 2D/2G (ATEX)
  • Device class 2 / zone 1 (gas), zone 21 (dust)
  • Electronic setting of zero point
  • Counting direction input
  • Maximum resistant against magnetic fields
ø60...90 mm
14 bit
SSI
na dotaz
X 700 - SSI - Singleturn
  • Encoder singleturn / SSI / ATEX
  • Optical sensing method
  • Resolution: singleturn 14 bit
  • Clamping flange with solid shaft ø10 mm
  • Explosion protection per Ex II 2D/2G (ATEX)
  • Device class 2 / zone 1 (gas), zone 21 (dust)
  • Electronic setting of zero point
  • Counting direction input
  • Maximum resistant against magnetic fields
ø60...90 mm
14 bit
SSI
na dotaz
