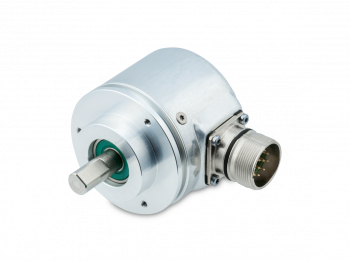

GBM2W

GBM2W
  • High resolution encoder multiturn / SSI
  • Optical sensing method
  • Resolution: singleturn 18 bit, multiturn 12 bit
  • Electronic setting of zero point
  • Counting direction input
  • Available with additional incremental output
  • Maximum resistant against magnetic fields
Výrobce: Baumer Electric AG
Dostupnost: na dotaz



Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ondřej Štěpánek
Ondřej Štěpánek
Produktový manažer
BAUMER
Ondřej Štěpánek - QR Kontakt
+420 733 101 651
ondrej.stepanek@ajptech.cz
Parametry
Nákresy
Ke stažení
Příslušenství
Podpora
Podobné produkty

Parametry

Elektrické vlastnosti

Napájecí napětí: 10...30 VDC
Ochrana proti přepólování: Yes
Spotřeba: ≤50 mA (24 VDC)
Čas inicializace: 20 ms after power on
Rozhraní:
  • SSI
  • Incremental A 90° B (optional)
Funkce: Multiturn
Kroků na otáčku: 262144 / 18 bit
Počet otáček: 4096 / 12 bit
Absolutní přesnost: ±0.01 °
Typ snímání: Optical
Typ kódu: Gray or binary
Průběh kódu: CW/CCW coded by connection
Vstupy:
  • SSI clock
  • Control signals UP/DOWN inv. and zero
Výstupní signál | rozhraní:
  • SSI data: Linedriver RS422
  • Diagnostic outputs push-pull
Inkrementální výstup: 2048 pulses A90°B + inverted
Odolnost proti rušení dle: EN 61000-6-2
Vyzařované rušení dle: EN 61000-6-4
Testovací funkce:
  • Self-diagnosis
  • Multiturn sensing
Schválení: UL approval / E63076

Mechanické provedení

Rozměr (příruby): ø58 mm
Typ hřídele:
  • ø10 mm solid shaft (clamping flange)
  • ø6 mm solid shaft (synchro flange)
Příruba: Clamping or synchro flange
Ochrana EN 60529:
  • IP 54 (without shaft seal)
  • IP 65 (with shaft seal)
Provozní rychlost:
  • ≤10000 rpm (mechanical)
  • ≤6000 rpm (electric)
Angular acceleration:
  • ≤2500 rad/s² (UB = 0 VDC)
  • ≤500000 rad/s² (UB = 10...30 VDC)
Rozběhový točivý moment:
  • ≤0.015 Nm (+25 °C, IP 54)
  • ≤0.03 Nm (+25 °C, IP 65)
Moment setrvačnosti rotoru: 20 gcm²
Přípustné zatížení hřídele:
  • ≤20 N axial
  • ≤40 N radial
Materiál:
  • Housing: aluminium
  • Flange: aluminium
Pracovní teplota:
  • -25...+85 °C
  • -40...+85 °C (optional)
Relativní vlhkost: 95 % non-condensing
Odolnost:
  • EN 60068-2-6
  • Vibration ±0.75 mm - 10-58 Hz, 10 g - 58-2000 Hz
  • EN 60068-2-27
  • Shock 200 g, 6 ms
Přibližná hmotnost: 400 g
Připojení:
  • Connector M23, 12-pin
  • Connector M12, 8-pin
  • Cable 1 m

Nákresy

Výkresy

  • GBM2W-MZ-X-06.png - GBM2W
    GBM2W-MZ-X-06.png | stáhnout (png, 2025-07-12 02:43:10)
  • GBM2W-MZ-X-07.png - GBM2W
    GBM2W-MZ-X-07.png | stáhnout (png, 2025-07-12 02:44:27)
  • GBM2W-MZ-X-04.png - GBM2W
    GBM2W-MZ-X-04.png | stáhnout (png, 2025-07-12 02:43:35)
  • GBM2W-MZ-X-08.png - GBM2W
    GBM2W-MZ-X-08.png | stáhnout (png, 2025-07-12 02:44:15)
  • GBM2W-MZ-X-09.png - GBM2W
    GBM2W-MZ-X-09.png | stáhnout (png, 2025-07-12 02:58:11)
  • GBM2W-MZ-X-05.png - GBM2W
    GBM2W-MZ-X-05.png | stáhnout (png, 2025-07-12 02:44:00)

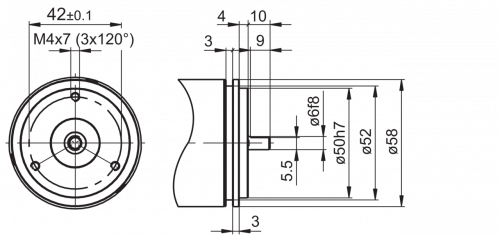

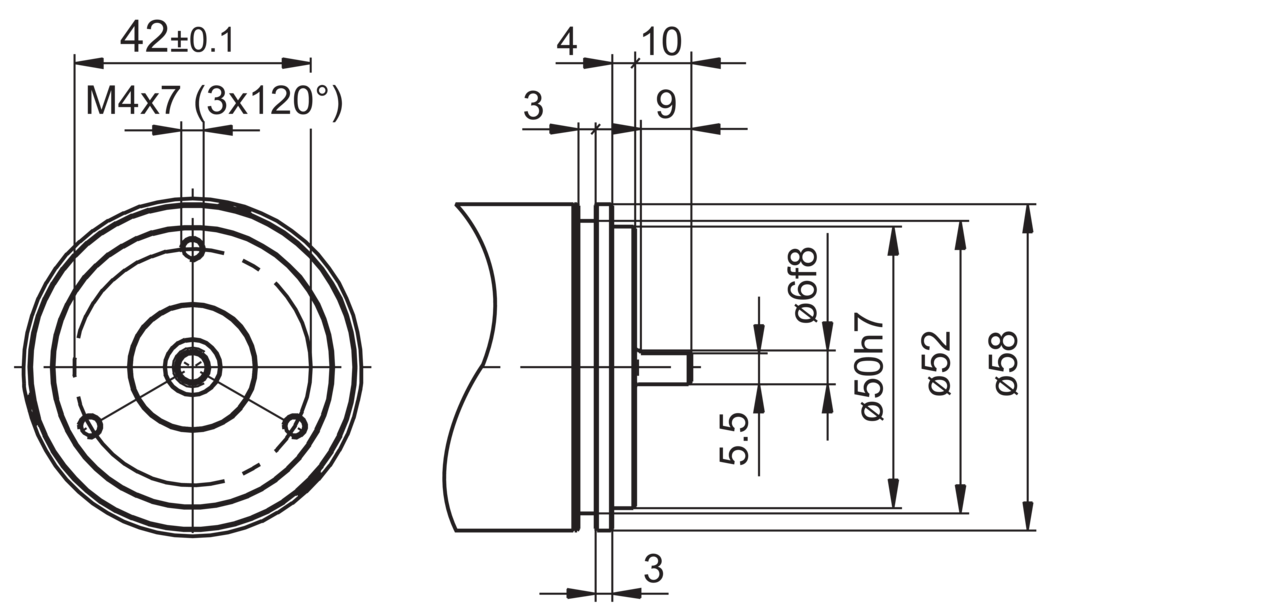

  • Servoflansch-MZ-X-01.png - GBM2W
    Servoflansch-MZ-X-01.png | stáhnout (png, 2025-07-11 22:45:21)

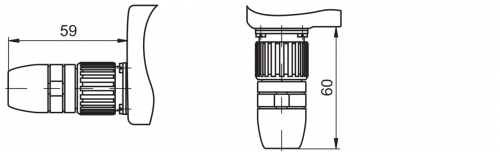

  • Steckeranschl-MZ-X-01.png - GBM2W
