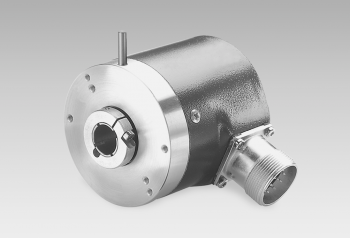

GBP5H - CANopen®

GBP5H - CANopen®
  • Encoder multiturn / CANopen®
  • Optical sensing method
  • Resolution: singleturn 18 bit, multiturn 14 bit
  • Through hollow shaft up to ø14 mm
  • High resistance to shock and vibrations
  • LED status indicator
  • CANopen® Profile CIA DSP 406
  • Permanent check of code continuity
  • Maximum resistant against magnetic fields
Výrobce: Baumer Electric AG
Dostupnost: na dotaz



Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ondřej Štěpánek
Ondřej Štěpánek
Produktový manažer
BAUMER
Ondřej Štěpánek - QR Kontakt
+420 733 101 651
ondrej.stepanek@ajptech.cz
Parametry
Nákresy
Ke stažení
Příslušenství
Podpora
Podobné produkty

Parametry

Elektrické vlastnosti

Napájecí napětí: 10...30 VDC
Ochrana proti přepólování: Yes
Spotřeba: ≤50 mA (24 VDC)
Čas inicializace: 250 ms after power on
Rozhraní: CANopen®
Funkce: Multiturn
Přenosová rychlost: 10 - 1000 kBaud
Kompatibilita: CANopen® CiA DSP 406 V 3.0
Pracovní režim: Event-triggered / Time-triggered Remotely-requested Sync (cyclic) / Sync (acyclic)
Identifikátor: 11 bit
Kroků na otáčku: ≤262144 / 18 bit
Počet otáček: ≤16384 / 14 bit
Absolutní přesnost: ±0.01 °
Typ snímání: Optical
Typ kódu: Binary
Průběh kódu: CW/CCW programmable
Výstupní signál | rozhraní: CAN bus standard ISO / DIS 11898
Odolnost proti rušení dle: EN 61000-6-2
Vyzařované rušení dle: EN 61000-6-4
Programovatelné parametry:
  • Operating modes
  • Total resolution
  • Scaling
  • Rotation speed monitoring
Testovací funkce:
  • Position or parameter error
  • Multiturn sensing
Indikátor stavu: DUO-LED integrated in housing
Schválení: UL approval / E63076

Mechanické provedení

Rozměr (příruby): ø58 mm
Typ hřídele: ø10...14 mm (through hollow shaft)
Ochrana EN 60529:
  • IP 54
  • IP 65 (optional)
Provozní rychlost:
  • ≤6000 rpm (mechanical)
  • ≤6000 rpm (electric)
Rozběhové zrychlení: ≤1000 U/s²
Rozběhový točivý moment: ≤0.015 Nm (+25 °C, IP 54)
Moment setrvačnosti rotoru: 20 gcm²
Materiál:
  • Housing: steel
  • Flange: aluminium
Pracovní teplota:
  • -25...+85 °C
  • -40...+85 °C (optional)
Relativní vlhkost: 95 % non-condensing
Odolnost:
  • EN 60068-2-6
  • Vibration 10 g, 16-2000 Hz
  • EN 60068-2-27
  • Shock 100 g, 4 ms
Přibližná hmotnost: 500 g
Připojení:
  • Connector M12, 5-pin
  • Connector M23, 12-pin

Nákresy

Výkresy

  • GBP5H-MZ-X-01.png - GBP5H - CANopen®
    GBP5H-MZ-X-01.png | stáhnout (png, 2025-07-11 22:45:15)

Ke stažení

Datový list

Rychlý start

Příručka k softwaru

  • Toolsuite - CANopen | stáhnout (EN, zip, 2025-07-11 18:02:28)
  • G0-GB-GXP5W/S/H-GXU5W/S - CANopen | stáhnout | zobrazit (DE, pdf, 2025-04-11 11:28:40)
  • G0-GB-GXP5W/S/H-GXU5W/S - CANopen | stáhnout | zobrazit (EN, pdf, 2025-04-11 11:28:40)

Certifikáty/ osvědčení

Prohlášení o shodě

  • DoC / CoC - G0P5H, GBP5H, GBP5S, GBP5W, GXP5S, GXP5W | stáhnout | zobrazit (EN/DE/BG/CZ/DK/ES/FI/FR/GR/HU/IT/LT/LV/NL/NO/PL/PT/RO/SK/SI, pdf, 2025-04-11 11:29:02)

Software

  • Toolsuite - CANopen | stáhnout (zip, 2025-07-11 18:02:37)
