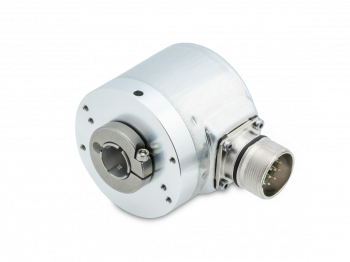

GBA2H - Absolutní enkodér Baumer

GBA2H
  • High resolution encoder singleturn / SSI
  • Optical sensing method
  • Resolution: max. 19 bit
  • Through hollow shaft up to ø14 mm
  • High reliability by self-diagnostics
  • Counting direction input
  • Electronic setting of zero point
  • Available with additional incremental output
Výrobce: Baumer Electric AG
Dostupnost: na dotaz



Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

Mail
Mám dotaz
+Order
Přidat do nezávazné poptávky

Poradím vám

Ing. Pavel Solar
Ing. Pavel Solar
Aplikační inženýr
BAUMER
Ing. Pavel Solar - QR Kontakt
+420 733 101 651
pavel.solar@ajptech.cz
Parametry
Nákresy
Ke stažení
Příslušenství
Podpora
Podobné produkty

Parametry

Elektrické vlastnosti

Napájecí napětí: 10...30 VDC
Ochrana proti přepólování: Yes
Spotřeba: ≤50 mA (24 VDC)
Čas inicializace: 20 ms after power on
Rozhraní:
  • SSI
  • Incremental A 90° B (optional)
Funkce: Singleturn
Kroků na otáčku: ≤524288 / 19 bit
Absolutní přesnost: ±0.01 °
Typ snímání: Optical
Typ kódu: Gray or binary
Průběh kódu: CW/CCW coded by connection
Vstupy:
  • SSI clock
  • Control signals UP/DOWN inv. and zero
Výstupní signál | rozhraní:
  • SSI data: linedriver RS485
  • Diagnostic and incremental outputs
Inkrementální výstup: 2048 pulses A90°B + inverted
Odolnost proti rušení dle: EN 61000-6-2
Vyzařované rušení dle: EN 61000-6-4
Testovací funkce: Self-diagnosis
Schválení: UL approval / E63076

Mechanické provedení

Rozměr (příruby): ø58 mm
Typ hřídele: ø10...14 mm (through hollow shaft)
Ochrana EN 60529:
  • IP 54
  • IP 65 (optional)
Provozní rychlost:
  • ≤6000 rpm (mechanical)
  • ≤6000 rpm (electric)
Rozběhový točivý moment: ≤0.04 Nm (+25 °C, IP 54)
Moment setrvačnosti rotoru: 20 gcm²
Materiál:
  • Housing: aluminium
  • Flange: aluminium
Pracovní teplota:
  • -25...+85 °C
  • -40...+85 °C (optional)
Relativní vlhkost: 95 % non-condensing
Odolnost:
  • EN 60068-2-6
  • Vibration ±0.75 mm - 10-58 Hz, 10 g - 58-2000 Hz
  • EN 60068-2-27
  • Shock 200 g, 6 ms
Přibližná hmotnost: 400 g
Připojení:
  • Connector M23, 12-pin
  • Cable 1 m

Nákresy

Výkresy

  • GBA2H-MZ-X-01.png - GBA2H
    GBA2H-MZ-X-01.png | stáhnout (png, 2025-07-11 22:42:35)

Ke stažení

Datový list

Rychlý start

  • G0A2H, G0L2H, G0M2H, GBA2H, GBM2H - SSI | stáhnout | zobrazit (DE/EN, pdf, 2025-04-11 11:28:40)

Certifikáty/ osvědčení

Prohlášení o shodě

  • DoC / CoC - GA240, GA241, G0A2H, GBA2x, GXA2S | stáhnout | zobrazit (EN/DE/BG/CZ/DK/ES/FI/FR/GR/HU/IT/LT/LV/NL/NO/PL/PT/RO/SK/SI, pdf, 2025-04-11 11:28:43)

Příslušenství

Obsahuje:Montážní příslušenstvíKonektory a kabely

Montážní příslušenství

FotoProdukt (8)
Clamping ring set 16/30x6 - stainless steel (Z 119.092)
Clamping ring set 16/30x6 - stainless steel (Z 119.092)
Obj. číslo: 11098229
Spring coupling for encoders with ø58 mm housing, hole distance 63 mm (Z 119.082)
Spring coupling for encoders with ø58 mm housing, hole distance 63 mm (Z 119.082)
Obj. číslo: 11003562
Spring coupling for encoders with ø58 mm housing, hole distance 68 mm (Z 119.073)
Spring coupling for encoders with ø58 mm housing, hole distance 68 mm (Z 119.073)
Obj. číslo: 11034121
Spring coupling for encoders with ø58 mm housing, hole distance 73 mm (Z 119.072)
Spring coupling for encoders with ø58 mm housing, hole distance 73 mm (Z 119.072)
Obj. číslo: 10165157
Spring coupling for motor’s fan guard (Z 119.053)
Spring coupling for motor’s fan guard (Z 119.053)
Obj. číslo: 11034106
Spring coupling for one-side attachment, length 115 mm (Z 119.076)
Spring coupling for one-side attachment, length 115 mm (Z 119.076)
Obj. číslo: 11034123
Spring coupling, hole distance 32.5 mm (Z 119.101)
Spring coupling, hole distance 32.5 mm (Z 119.101)
Obj. číslo: 11201396
Torque arm, 1-arm (mounting kit 056)
Torque arm, 1-arm (mounting kit 056)
Obj. číslo: 11066120

Konektory a kabely

Další podobné produkty naleznete v kategorii: Konektory M23 / kabely
