IWRR 18I97T4/S14 - Inductive distance sensors - outdoor and washdown

0 … 7 mm
current output
connector M12
-40 … 70 °C
IP 68/69K & proTect+

Objednací číslo: 11016445
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák

Technik specialista pro průmyslové snímače
BAUMER

+420 733 533 400

jaroslav.dancak@ajptech.cz

Parametry

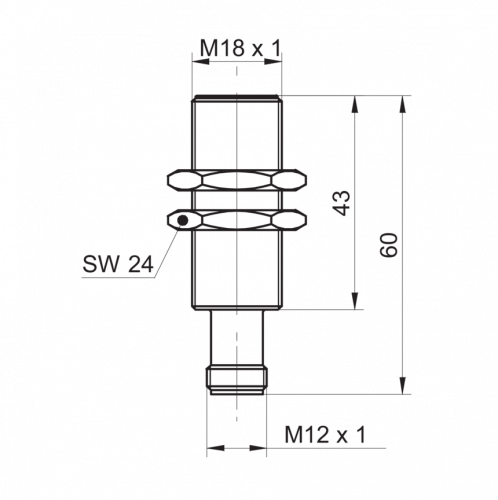

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Montážní typ:	Quasi-flush
Speciální typ:	Outdoor design Washdown design
Měřicí vzdálenost Sd:	0 - 7 mm
Rozlišení:	< 0.005 mm (stat.) < 0.01 mm (dynam.)
Opakovatelnost:	0.015 mm
Chyba linearity:	± 350 µm
Teplotní drift:	± 10 % (Full Scale)
Schválení \| Osvědčení:	Ecolab

Elektrické parametry

Čas odezvy:	< 2 ms
Rozsah napájecího napětí +Vs:	15 - 30 VDC
Maximální spotřeba proudu (bez zátěže):	40 mA

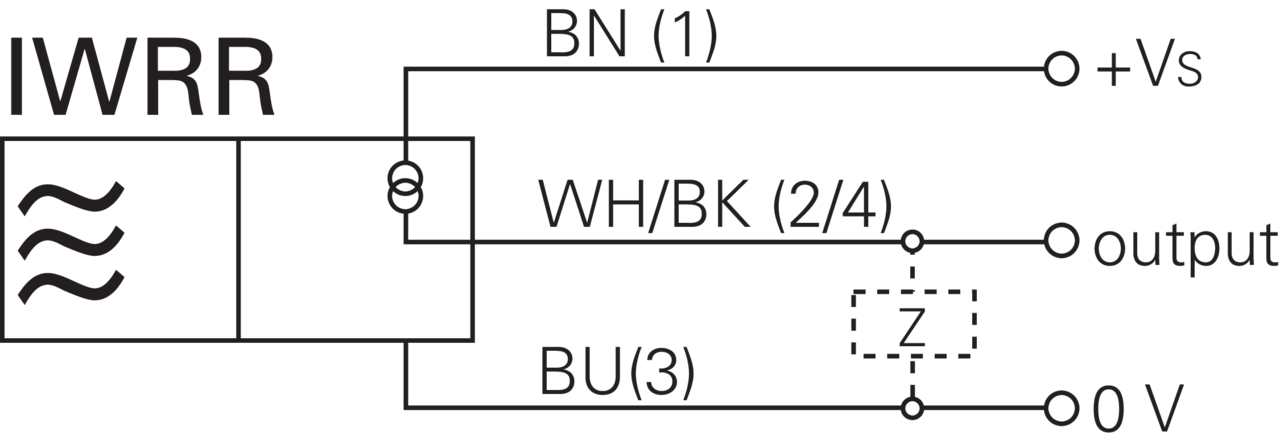

Výstupní obvod:	Current output
Výstupní signál:	4 ... 20 mA
Odpor zátěže +Vs min.:	< 330 Ohm
Odpor zátěže +Vs max.:	< 1000 Ohm
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes

Mechanické parametry

Konstrukce:	Cylindrical threaded
Materiál aktivní části:	LCP
Materiál pouzdra:	Stainless steel 1.4404 (V4A)
Rozměry:	18 mm
Délka pouzdra:	60 mm
Způsoby připojení:	Connector M12
utahovací moment max.:	55 Nm (Front: 38 Nm)

Okolní podmínky

Pracovní teplota:	-40 - +70 °C
Čistící teplota:	70 - +85 °C (30 min/day)
Třída krytí:	IP 68/69K & proTect+
Odolnost vibracím:	EN 61373: 2010 (category 3), 5h per axis (14.4 gRMS, 10-500 Hz, EN 60068-2-64)
Odolnost vůči zkratu:	EN 61373: 2010 (category 3), 10 bumps per axis (100 g, 6 ms, EN 60068-2-27)

Příslušenství
