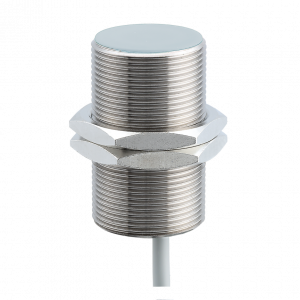

IWRM 30I9501 - Inductive distance sensors

IWRM 30I9501 - Inductive distance sensors
  • 5 … 10 mm
  • current output
  • cable, 2 m
  • 60 °C
  • IP 67
Objednací číslo: 10216777
Výrobce: Baumer Electric AG
Dostupnost: 2 ks (zobrazit skladovou dostupnost)

Můžete mít ihned. Možnost osobního odběru v pracovní dny od 8:00 do 16:00 na adrese firmy po předchozí telefonické dohodě.
Zboží odesíláme okamžitě. Zboží, které závazně objednáte v pracovních dnech do 11:00 hodin, vám odešleme ještě tentýž den.
+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák
Ing. Jaroslav Dančák
Technik specialista pro průmyslové snímače
BAUMER
Ing. Jaroslav Dančák - QR Kontakt
+420 733 533 400
jaroslav.dancak@ajptech.cz
Parametry
Nákresy
Ke stažení
Příslušenství
Podpora
Skladová dostupnost
Podobné produkty

Parametry

Základní parametry

Montážní typ: Flush
Měřicí vzdálenost Sd: 5 - 10 mm
Optimální snímací vzdálenost: 7.1 - 7.9 mm
Rychlost měření: < 1.5 mm / ms
Opakovatelnost: 0.02 mm
Chyba linearity: ± 200 µm
Teplotní koeficient: 1 µm / (K mm)

Elektrické parametry

Rozsah napájecího napětí +Vs: 15 - 30 VDC
Maximální spotřeba proudu (bez zátěže): 35 mA
Výstupní obvod: Current output
Výstupní signál: 4 ... 20 mA
Odpor zátěže +Vs min.: < 500 Ohm
Odpor zátěže +Vs max.: < 1000 Ohm
Zvlnění výstupu: < 0.5 % Vs
Ochrana proti zkratu: Yes
Ochrana proti přepólování: Yes

Mechanické parametry

Konstrukce: Cylindrical threaded
Materiál aktivní části: PBT
Materiál pouzdra: Brass nickel plated
Rozměry: 30 mm
Délka pouzdra: 60 mm
Způsoby připojení: Cable, L=2 m
utahovací moment max.: 200 Nm (Front: 140 Nm)

Okolní podmínky

Pracovní teplota: 0 - +60 °C
Třída krytí: IP 67
