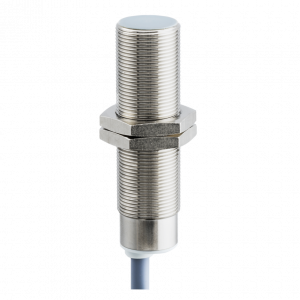

IWRM 18I9502 - Inductive distance sensors

IWRM 18I9502 - Inductive distance sensors
  • 2 … 4 mm
  • current output
  • cable, 2 m
  • 60 °C
  • IP 67
Objednací číslo: 10217599
Výrobce: Baumer Electric AG
Dostupnost: na dotaz



Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák
Ing. Jaroslav Dančák
Technik specialista pro průmyslové snímače
BAUMER
Ing. Jaroslav Dančák - QR Kontakt
+420 733 533 400
jaroslav.dancak@ajptech.cz
Parametry
Nákresy
Ke stažení
Příslušenství
Podpora
Podobné produkty

Parametry

Základní parametry

Montážní typ: Flush
Měřicí vzdálenost Sd: 2 - 4 mm
Optimální snímací vzdálenost: 2.8 - 3.2 mm
Rychlost měření: < 1 mm / ms
Opakovatelnost: 0.02 mm
Chyba linearity: ± 80 µm
Teplotní koeficient: 1 µm / (K mm)

Elektrické parametry

Rozsah napájecího napětí +Vs: 15 - 30 VDC
Maximální spotřeba proudu (bez zátěže): 35 mA
Výstupní obvod: Current output
Výstupní signál: 4 ... 20 mA
Odpor zátěže +Vs min.: < 500 Ohm
Odpor zátěže +Vs max.: < 1000 Ohm
Zvlnění výstupu: < 0.5 % Vs
Ochrana proti zkratu: Yes
Ochrana proti přepólování: Yes

Mechanické parametry

Konstrukce: Cylindrical threaded
Materiál aktivní části: PBT
Materiál pouzdra: Brass nickel plated
Rozměry: 18 mm
Délka pouzdra: 65 mm
Způsoby připojení: Cable, L=2 m
utahovací moment max.: 40 Nm (Front: 28 Nm)

Okolní podmínky

Pracovní teplota: 0 - +60 °C
Třída krytí: IP 67
