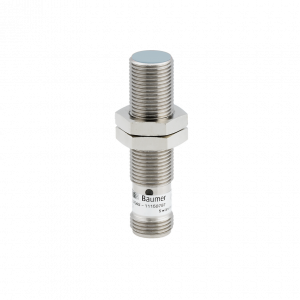

IWRM 12U9705/S14 - Inductive distance sensors

IWRM 12U9705/S14 - Inductive distance sensors
  • 0 … 4 mm
  • voltage output
  • connector M12
  • -10 … 70 °C
  • IP 67
Objednací číslo: 10146391
Výrobce: Baumer Electric AG
Dostupnost: na dotaz



Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák
Ing. Jaroslav Dančák
Technik specialista pro průmyslové snímače
BAUMER
Ing. Jaroslav Dančák - QR Kontakt
+420 733 533 400
jaroslav.dancak@ajptech.cz
Parametry
Nákresy
Ke stažení
Příslušenství
Podpora
Podobné produkty

Parametry

Základní parametry

Montážní typ: Quasi-flush
Měřicí vzdálenost Sd: 0 - 4 mm
Rozlišení:
  • < 0.0005 mm (stat.)
  • < 0.001 mm (dynam.)
Opakovatelnost: 0.005 mm
Chyba linearity: ± 160 µm
Teplotní drift: ± 4 % (Full Scale)

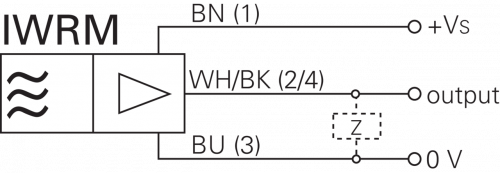

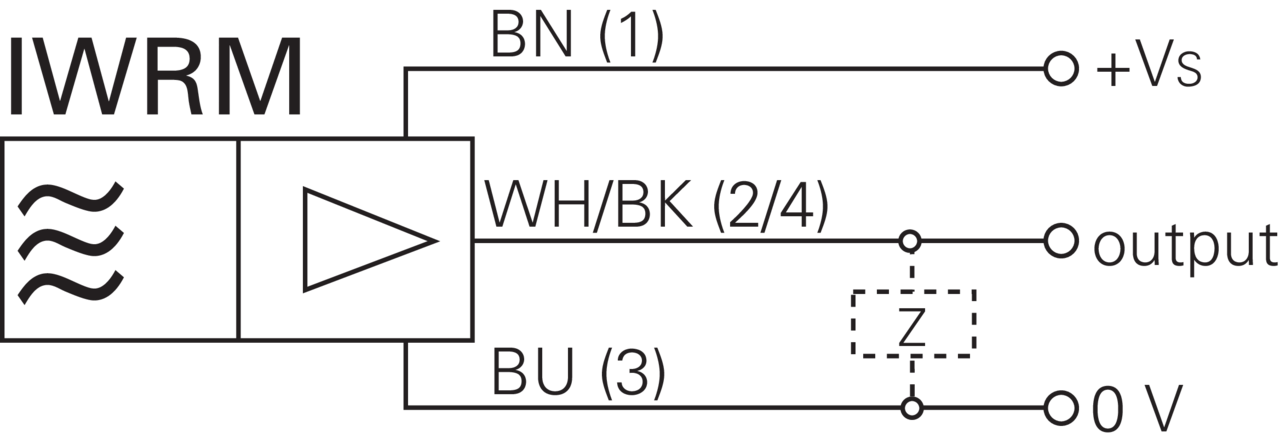

Elektrické parametry

Čas odezvy: < 30 ms
Rozsah napájecího napětí +Vs: 15 - 30 VDC
Maximální spotřeba proudu (bez zátěže): 20 mA
Výstupní obvod: Analog 0 ... 10 VDC
Odpor zátěže: > 1000 Ohm
Ochrana proti zkratu: Yes
Ochrana proti přepólování: Yes

Mechanické parametry

Konstrukce: Cylindrical threaded
Materiál aktivní části: PBT
Materiál pouzdra: Brass nickel plated
Rozměry: 12 mm
Délka pouzdra: 50 mm
Způsoby připojení: Connector M12
utahovací moment max.: 15 Nm (Front: 10 Nm)

Okolní podmínky

Pracovní teplota: -10 - +70 °C
Třída krytí: IP 67
