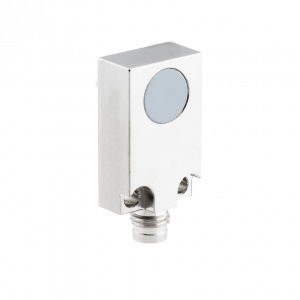

IWFM 18U7504/S35A - Inductive distance sensors

0 … 4 mm
voltage output
connector M8
-10 … 70 °C
IP 67

Objednací číslo: 10146855
Výrobce: Baumer Electric AG

Dostupnost: 1 ks (zobrazit skladovou dostupnost)

Můžete mít ihned. Možnost osobního odběru v pracovní dny od 8:00 do 16:00 na adrese firmy po předchozí telefonické dohodě.

Zboží odesíláme okamžitě. Zboží, které závazně objednáte v pracovních dnech do 11:00 hodin, vám odešleme ještě tentýž den.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Martin Bulenínec

Vedoucí oddělení průmyslových snímačů a kamerových systémů
BAUMER | IOSS

+420 734 153 954

martin.buleninec@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Skladová dostupnost

Podobné produkty

Parametry

Základní parametry

Montážní typ:	Flush
Speciální typ:	Linearized
Měřicí vzdálenost Sd:	0 - 4 mm
Rozlišení:	< 0.005 mm
Opakovatelnost:	0.01 mm
Chyba linearity:	± 160 µm
Teplotní drift:	± 5 % (Full Scale)

Elektrické parametry

Čas odezvy:	< 2.5 ms
Rozsah napájecího napětí +Vs:	15 - 30 VDC
Maximální spotřeba proudu (bez zátěže):	20 mA
Výstupní obvod:	Voltage output
Výstupní signál:	0 ... 10 VDC
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes

Mechanické parametry

Konstrukce:	Rectangular
Materiál aktivní části:	PBT
Materiál pouzdra:	Brass nickel plated
Rozměry:	18 mm
Délka pouzdra:	30 mm
Způsoby připojení:	Connector M8

Okolní podmínky

Pracovní teplota:	-10 - +70 °C
Třída krytí:	IP 67
