IR18.D08L-Q60.UA1E.7BO - Inductive distance sensors - linearized

0 … 8 mm
voltage output
external Teach-in
connector M12
-25 … 75 °C
IP 67

Objednací číslo: 11141092
Výrobce: Baumer Electric AG

Dostupnost: 5 ks (zobrazit skladovou dostupnost)

Můžete mít ihned. Možnost osobního odběru v pracovní dny od 8:00 do 16:00 na adrese firmy po předchozí telefonické dohodě.

Zboží odesíláme okamžitě. Zboží, které závazně objednáte v pracovních dnech do 11:00 hodin, vám odešleme ještě tentýž den.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Martin Bulenínec

Vedoucí oddělení průmyslových snímačů a kamerových systémů
BAUMER | IOSS

+420 734 153 954

martin.buleninec@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Skladová dostupnost

Podobné produkty

Parametry

Základní parametry

Montážní typ:	Quasi-flush
Speciální typ:	Linearized
Měřicí vzdálenost Sd:	0 - 8 mm
Citlivost:	1,25 V/mm
Rozlišení:	< 0.002 mm (stat.) < 0.006 mm (dynam.)
Opakovatelnost:	0.015 mm
Nastavení:	External Teach-in
nastavitelné módy:	1-point analog, 2-point analog, factory reset
Chyba linearity:	± 32 µm
Teplotní drift:	± 3 % (Full Scale)
Zpětná vazba pro učení:	LED yellow

Elektrické parametry

Čas odezvy:	< 1 ms
Rozsah napájecího napětí +Vs:	12 - 36 VDC
Maximální spotřeba proudu (bez zátěže):	15 mA

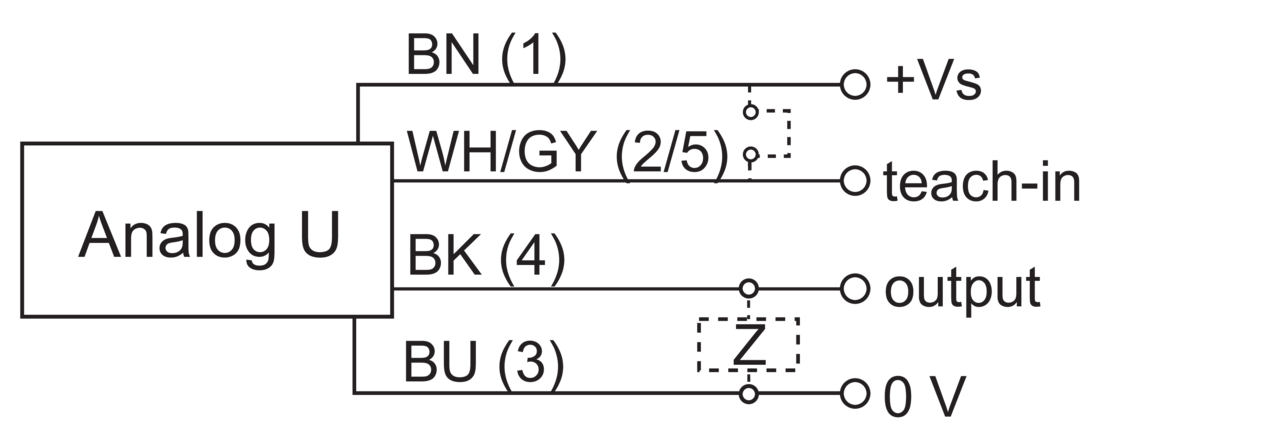

Výstupní obvod:	Voltage output
Výstupní signál:	0 ... 10 VDC
Odpor zátěže:	> 4000 Ohm
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes

Mechanické parametry

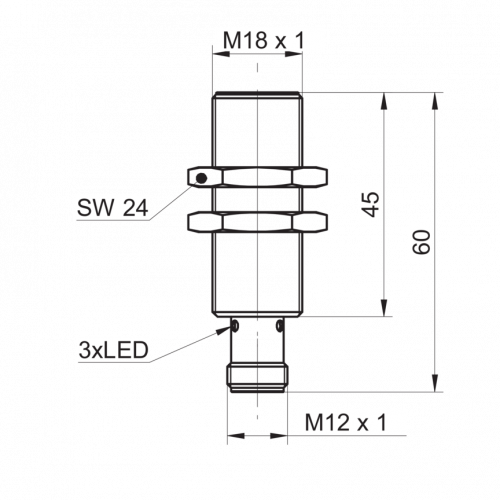

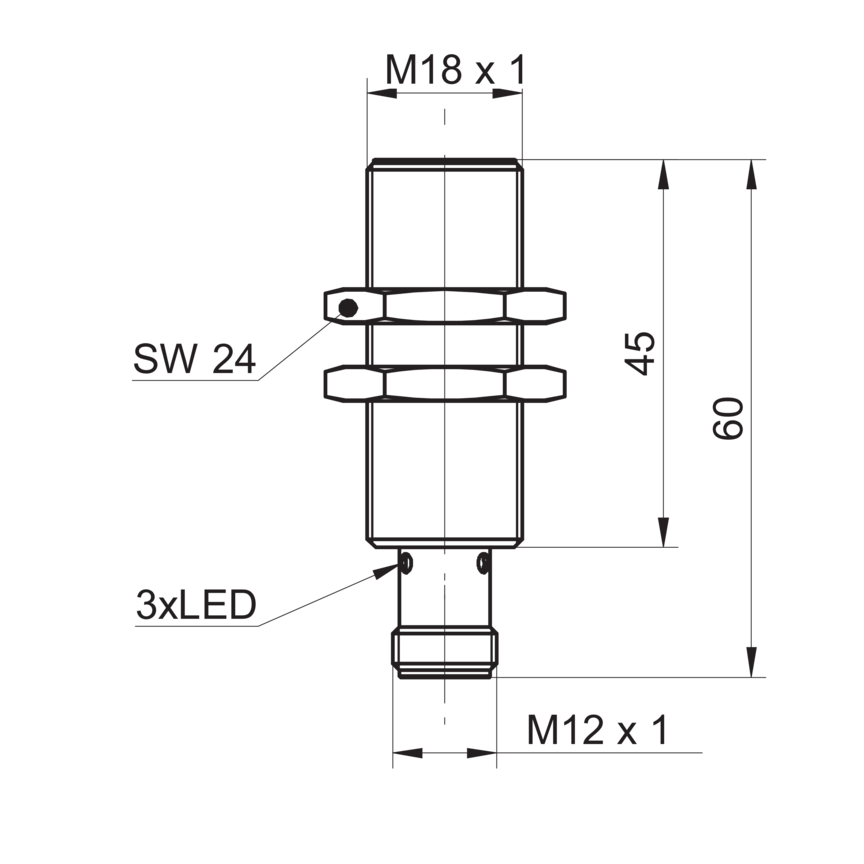

Konstrukce:	Cylindrical threaded
Materiál aktivní části:	PBT
Materiál pouzdra:	Brass nickel plated
Rozměry:	18 mm
Délka pouzdra:	60 mm

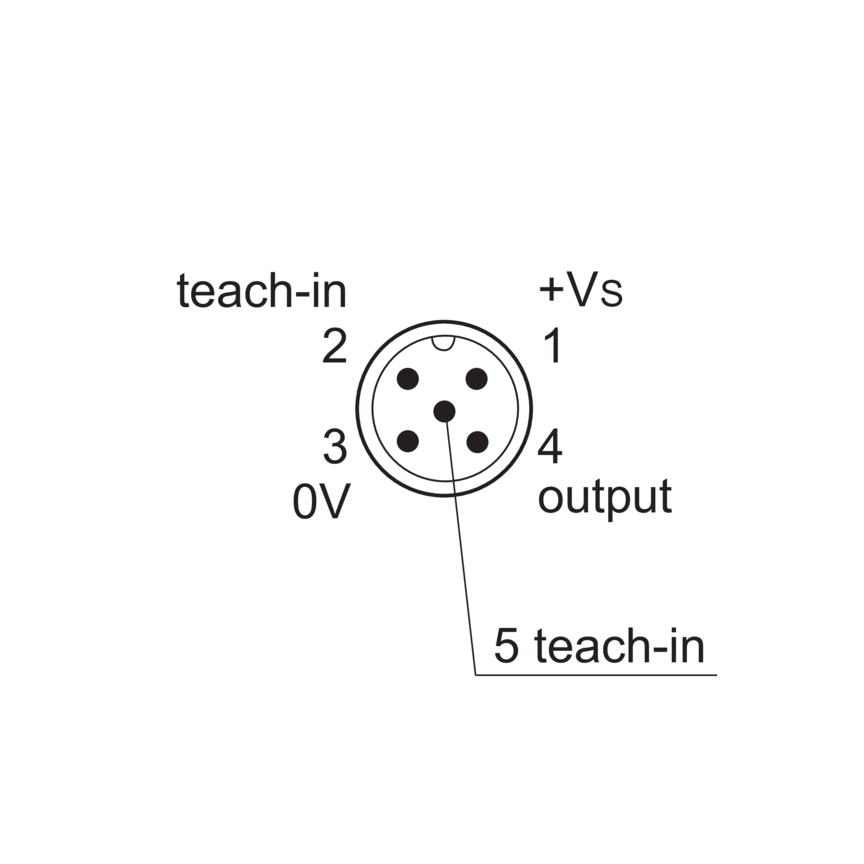

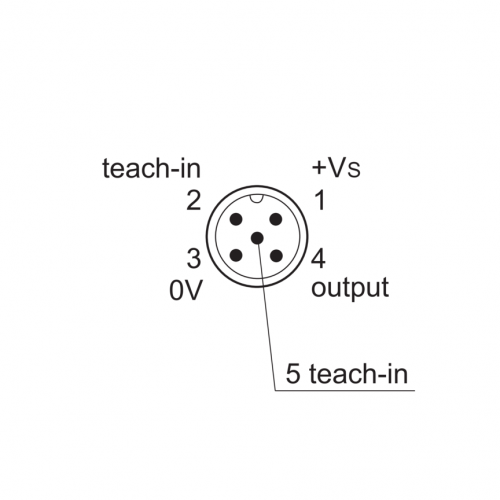

Způsoby připojení:	Connector M12
utahovací moment max.:	40 Nm

Okolní podmínky

Pracovní teplota:	-25 - +75 °C
Třída krytí:	IP 67
