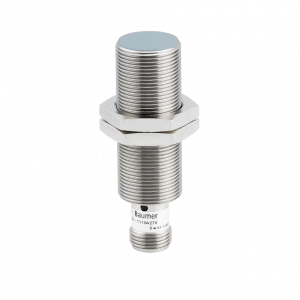

IR18.D05S-F60.UA1Z.7BO/B007 - Inductive distance sensors

IR18.D05S-F60.UA1Z.7BO/B007 - Inductive distance sensors
  • 2 … 5 mm
  • voltage output
  • connector M12
  • -10 … 70 °C
  • IP 67
Objednací číslo: 11140166
Výrobce: Baumer Electric AG
Dostupnost: na dotaz



Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák
Ing. Jaroslav Dančák
Technik specialista pro průmyslové snímače
BAUMER
Ing. Jaroslav Dančák - QR Kontakt
+420 733 533 400
jaroslav.dancak@ajptech.cz
Parametry
Nákresy
Ke stažení
Příslušenství
Podpora
Podobné produkty

Parametry

Základní parametry

Montážní typ: Flush
Měřicí vzdálenost Sd: 2 - 5 mm
Rozlišení:
  • < 0.005 mm (stat.)
  • < 0.01 mm (dynam.)
Opakovatelnost: 0.015 mm
Chyba linearity: ± 350 µm
Teplotní drift:
  • ± 2 % (Full Scale: 0 ... +60 °C)
  • ± 4 % (Full Scale: -10 ... +70 °C)

Elektrické parametry

Čas odezvy: < 2 ms
Rozsah napájecího napětí +Vs: 12 - 36 VDC
Maximální spotřeba proudu (bez zátěže): 10 mA

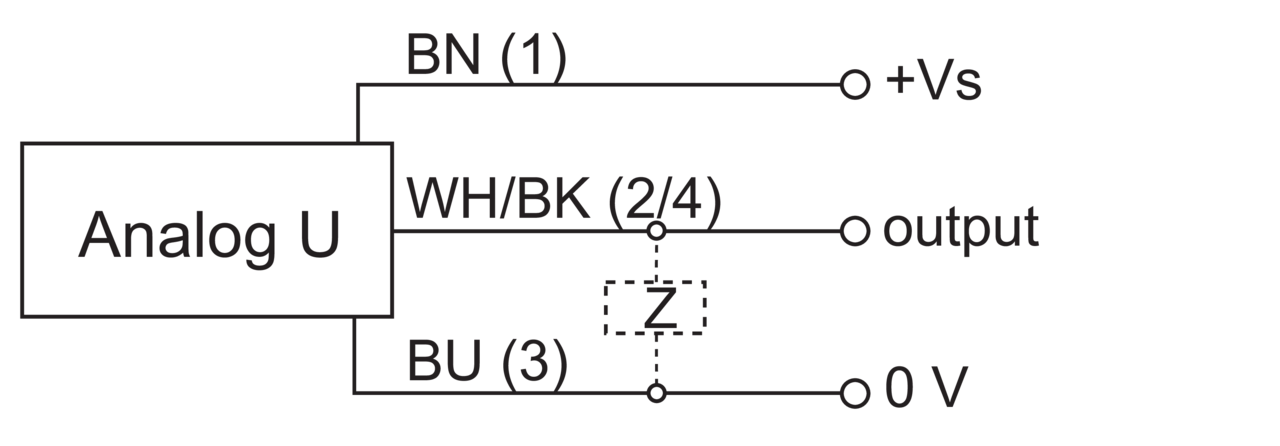

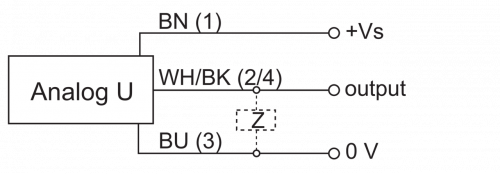

Výstupní obvod: Analog 1 ... 9 VDC
Odpor zátěže: > 4000 Ohm
Ochrana proti zkratu: Yes
Ochrana proti přepólování: Yes

Mechanické parametry

Konstrukce: Cylindrical threaded
Materiál aktivní části: PBT
Materiál pouzdra: Brass nickel plated
Rozměry: 18 mm
Délka pouzdra: 60 mm
Způsoby připojení: Connector M12
utahovací moment max.: 40 Nm

Okolní podmínky

Pracovní teplota: -10 - +70 °C
Třída krytí: IP 67
