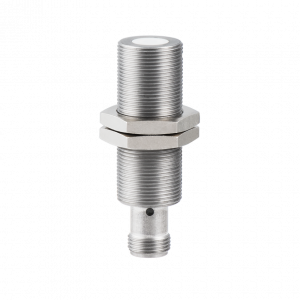

IR18.D03K-F60.UA1E.7FO/B015 - Inductive distance sensors - high sensitivity

IR18.D03K-F60.UA1E.7FO/B015 - Inductive distance sensors - high sensitivity
  • 2,75 … 3 mm
  • voltage output
  • external Teach-in
  • connector M12
  • -10 … 60 °C
  • IP 67
Objednací číslo: 11158155
Výrobce: Baumer Electric AG
Dostupnost: na dotaz



Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák
Ing. Jaroslav Dančák
Technik specialista pro průmyslové snímače
BAUMER
Ing. Jaroslav Dančák - QR Kontakt
+420 733 533 400
jaroslav.dancak@ajptech.cz
Parametry

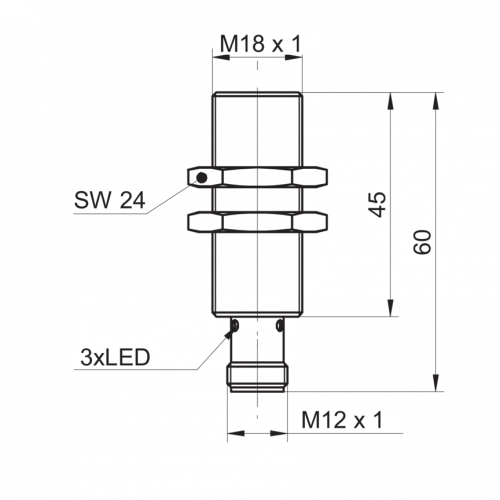

Nákresy
Ke stažení
Příslušenství
Podpora
Podobné produkty

Parametry

Základní parametry

Montážní typ: Flush
Speciální typ:
  • Linearized
  • High sensitivity
Měřicí vzdálenost Sd: 2.75 - 3 mm
Citlivost: 40 V/mm (Range: 0,25 mm)
Rozlišení:
  • < 0.00025 mm (stat.)
  • < 0.0005 mm (dynam.)
Opakovatelnost: 0.001 mm
Nastavení: External Teach-in
nastavitelné módy: 1-point analog, factory reset
Chyba linearity: ± 5 µm
Teplotní drift:
  • ± 4 % (Full Scale: +10 ... +30 °C)
  • ± 12 % (Full Scale: -10 ... +60 °C)
Zpětná vazba pro učení: LED yellow

Elektrické parametry

Čas odezvy: < 3 ms
Rozsah napájecího napětí +Vs: 12 - 30 VDC
Maximální spotřeba proudu (bez zátěže): 15 mA
Výstupní obvod: Voltage output
Výstupní signál: 0 ... 10 VDC
Odpor zátěže: > 4000 Ohm
Ochrana proti zkratu: Yes
Ochrana proti přepólování: Yes

Mechanické parametry

Konstrukce: Cylindrical threaded
Materiál aktivní části: Ceramic
Materiál pouzdra: Steel nickel plated
Rozměry: 18 mm
Délka pouzdra: 60 mm
Způsoby připojení: Connector M12
utahovací moment max.: 40 Nm

Okolní podmínky

Pracovní teplota: -10 - +60 °C
Třída krytí: IP 67
