IR12.D06S-Q50.IA1Z.7BO - Inductive distance sensors

0 … 6 mm
current output
connector M12
-25 … 75 °C
IP 67

Objednací číslo: 11141039
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Martin Bulenínec

Vedoucí oddělení průmyslových snímačů a kamerových systémů
BAUMER | IOSS

+420 734 153 954

martin.buleninec@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Montážní typ:	Quasi-flush
Měřicí vzdálenost Sd:	0 - 6 mm
Rozlišení:	< 0.005 mm (stat.) < 0.01 mm (dynam.)
Opakovatelnost:	0.01 mm
Chyba linearity:	± 300 µm (S = 1,5 ... 4,5 mm) ± 720 µm (S = 0 ... 6 mm)
Teplotní drift:	± 4 % (Full Scale: 0 ... +60 °C) ± 6 % (Full Scale: -25 ... +75 °C)

Elektrické parametry

Čas odezvy:	< 1 ms
Rozsah napájecího napětí +Vs:	8 - 36 VDC
Maximální spotřeba proudu (bez zátěže):	10 mA

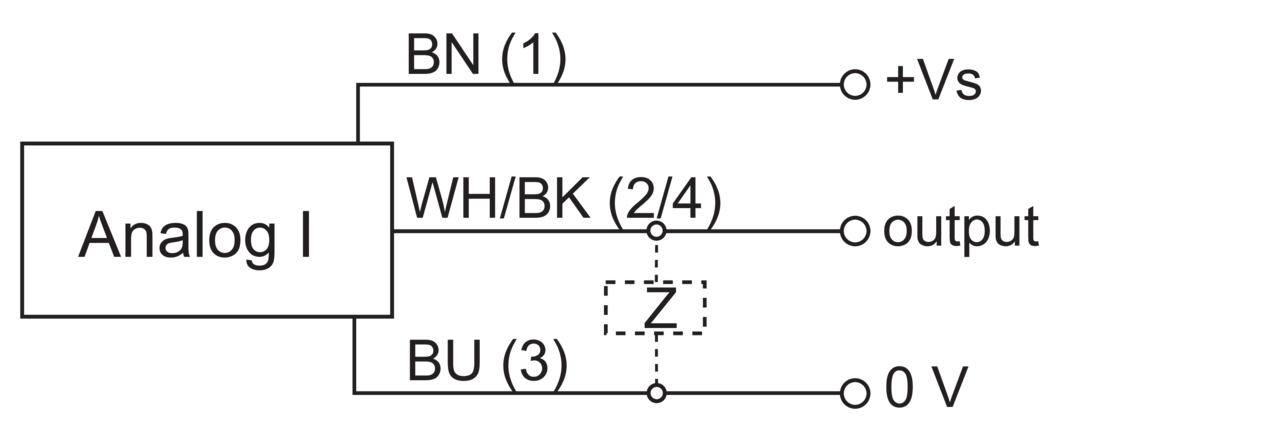

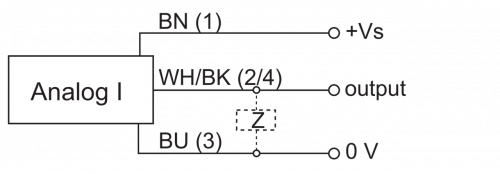

Výstupní obvod:	Current output
Výstupní signál:	4 ... 20 mA
Odpor zátěže:	< 50 Ohm/V * Vs - 150 Ohm > 500 Ohm (Vs = 30 - 36 VDC)
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes

Mechanické parametry

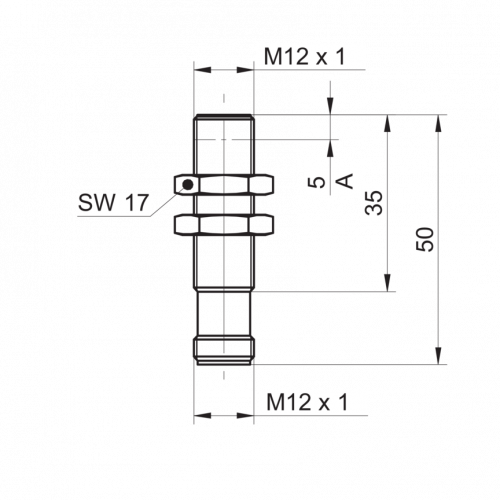

Konstrukce:	Cylindrical threaded
Materiál aktivní části:	PBT
Materiál pouzdra:	Brass nickel plated
Rozměry:	12 mm
Délka pouzdra:	50 mm

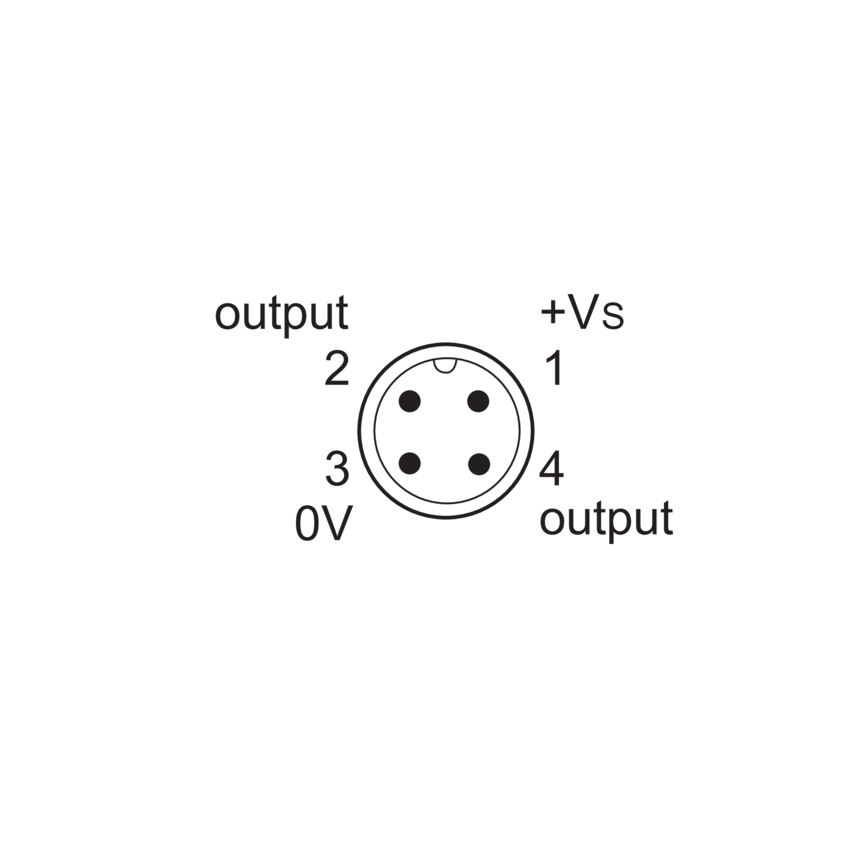

Způsoby připojení:	Connector M12
utahovací moment max.:	15 Nm (A: 10 Nm)

Okolní podmínky

Pracovní teplota:	-25 - +75 °C
Třída krytí:	IP 67

Příslušenství

Obsahuje:Periferie Montážní příslušenství Kabely s volným koncem LED-Kabely s volným koncem
