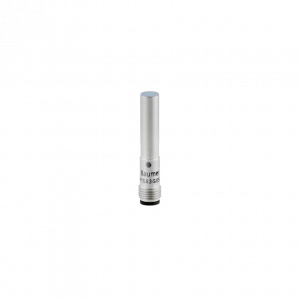

IWRM 04U9701/S05 - Inductive distance sensors - subminiature

IWRM 04U9701/S05 - Inductive distance sensors - subminiature
  • 0 … 1 mm
  • voltage output
  • connector M5
  • 10 … 60 °C
  • IP 67
Objednací číslo: 10154686
Výrobce: Baumer Electric AG
Dostupnost: 9 ks (zobrazit skladovou dostupnost)

Můžete mít ihned. Možnost osobního odběru v pracovní dny od 8:00 do 16:00 na adrese firmy po předchozí telefonické dohodě.
Zboží odesíláme okamžitě. Zboží, které závazně objednáte v pracovních dnech do 11:00 hodin, vám odešleme ještě tentýž den.
+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák
Ing. Jaroslav Dančák
Technik specialista pro průmyslové snímače
BAUMER
Ing. Jaroslav Dančák - QR Kontakt
+420 733 533 400
jaroslav.dancak@ajptech.cz
Parametry
Nákresy
Ke stažení
Příslušenství
Podpora
Skladová dostupnost
Podobné produkty

Parametry

Základní parametry

Montážní typ: Quasi-flush
Měřicí vzdálenost Sd: 0 - 1 mm
Rozlišení:
  • < 0.001 mm (stat.)
  • < 0.005 mm (dynam.)
Opakovatelnost: 0.005 mm
Chyba linearity: ± 100 µm
Teplotní drift: ± 5 % (Full Scale)

Elektrické parametry

Čas odezvy: < 0.5 ms
Rozsah napájecího napětí +Vs: 15 - 30 VDC
Maximální spotřeba proudu (bez zátěže): 15 mA
Výstupní obvod: Analog 0 ... 10 VDC
Odpor zátěže: > 1000 Ohm
Ochrana proti zkratu: Yes
Ochrana proti přepólování: Yes

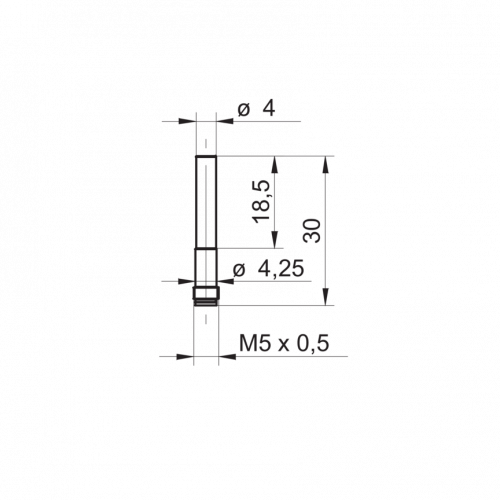

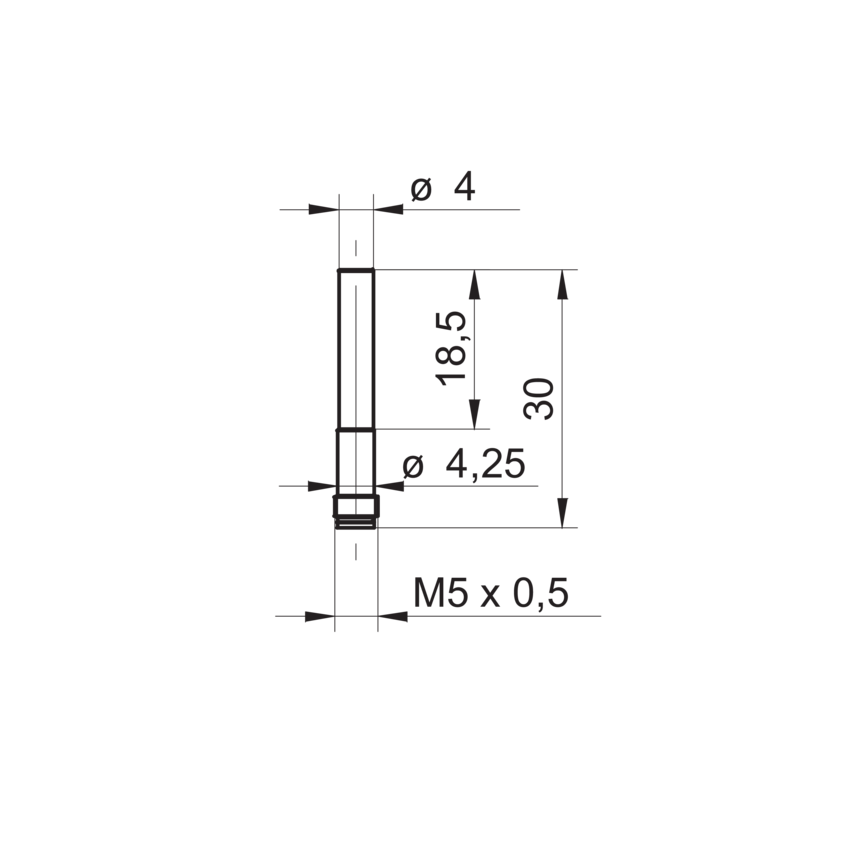

Mechanické parametry

Konstrukce: Cylindrical smooth
Materiál aktivní části: LCP
Materiál pouzdra: Stainless steel
Rozměry: 4 mm
Délka pouzdra: 30 mm
Způsoby připojení: Connector M5

Okolní podmínky

Pracovní teplota: 10 - +60 °C
Třída krytí: IP 67
