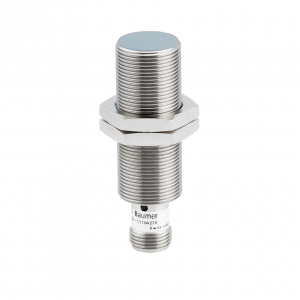

IWRM 18Z8704/S14C - Inductive distance sensors - linearized

Name: AJP-tech spol. s.r.o.
Address: Hudcova 533/78c, Medlánky, Brno, 61200, CZ
Telephone: +420 544 525 210
Price range: $$

IWRM 18Z8704/S14C - Inductive distance sensors - linearized

0 … 8 mm
voltage output / PNP
external Teach-in
connector M12
-10 … 70 °C
IP 67

Objednací číslo: 10156471
Výrobce: Baumer Electric AG

Dostupnost: 1 ks

Můžete mít ihned. Možnost osobního odběru v pracovní dny od 8:00 do 16:00 na adrese firmy po předchozí telefonické dohodě.

Zboží odesíláme okamžitě. Zboží, které závazně objednáte v pracovních dnech do 11:00 hodin, vám odešleme ještě tentýž den.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák

Technik specialista pro průmyslové snímače
BAUMER

+420 733 533 400

jaroslav.dancak@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Montážní typ:	Quasi-flush
Speciální typ:	2 adjust. switching points Linearized
Měřicí vzdálenost Sd:	0 - 8 mm
Rozlišení:	< 0.01 mm (stat.) < 0.01 mm (dynam.)
Opakovatelnost:	0.015 mm
Nastavení:	External Teach-in
Chyba linearity:	± 32 µm
Teplotní drift:	± 5 % (Full Scale)
Výstupní indikátor:	LED red
Zpětná vazba pro učení:	LED yellow

Elektrické parametry

Čas odezvy:	< 2 ms
Doba odezvy:	< 3.1 ms
Rozsah napájecího napětí +Vs:	15 - 30 VDC
Maximální spotřeba proudu (bez zátěže):	20 mA
Výstupní obvod:	Analog 0 ... 10 VDC PNP
Odpor zátěže:	> 1000 Ohm
Výstupní proud:	10 mA (PNP)
Pokles napětí Vd:	<5 VDC (PNP)
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes

Mechanické parametry

Konstrukce:	Cylindrical threaded
Materiál aktivní části:	PBT
Materiál pouzdra:	Brass nickel plated
Rozměry:	18 mm
Délka pouzdra:	60 mm
Způsoby připojení:	Connector M12
utahovací moment max.:	40 Nm (Front: 28 Nm)

Okolní podmínky

Pracovní teplota:	-10 - +70 °C
Třída krytí:	IP 67
