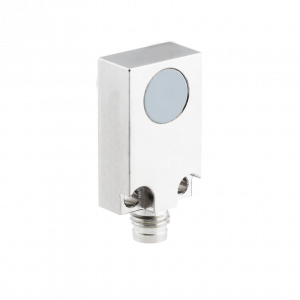

IWFM 18L9504/S35A - Inductive distance sensors - linearized

Objednací číslo: 10147042, Výrobce: Baumer Electric AG

0 … 4 mm
voltage - / current output
connector M8
-10 … 70 °C
IP 67

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do poptávky

Poradím vám

Ing. Martin Bulenínec

Produktový specialista
Průmyslové snímače Baumer

+420 734 153 954

martin.buleninec@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Montážní typ:	Flush
Měřicí vzdálenost Sd:	0 - 4 mm
Rozlišení:	< 0.005 mm
Opakovatelnost:	0.01 mm
Chyba linearity:	± 160 µm
Teplotní drift:	± 4 % (Full Scale)

Elektrické parametry

Čas odezvy:	< 2 ms
Rozsah napájecího napětí +Vs:	15 - 30 VDC
Maximální spotřeba proudu (bez zátěže):	40 mA
Výstupní obvod:	Voltage - / current output
Výstupní signál:	0 ... 10 V / 4 ... 20 mA
Odpor zátěže:	> 1000 Ohm (Uout ) / 330 ... 1000 Ohm (Iout)
Pokles napětí Vd:	< 7.2 VDC (Iout)
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes

Mechanické parametry

Typ:	Rectangular
Materiál pouzdra:	Brass nickel plated
Rozměry:	18 mm
Délka pouzdra:	30 mm
Způsoby připojení:	Connector M8

Okolní podmínky

Pracovní teplota:	-10 - +70 °C
Třída krytí:	IP 67
