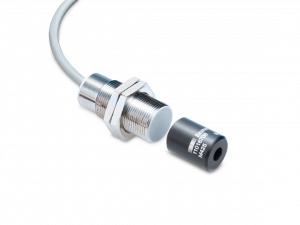

MDRM 18U9501/KS35P - Magnetic angle sensors

Voltage output
Flylead Connector PUR M8, L=200 mm
-40 … 85 °C
IP 67
Magnetic rotor not included in delivery

Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ondřej Štěpánek

Vedoucí oddělení průmyslových snímačů a kamerových systémů
BAUMER

+420 733 101 651

ondrej.stepanek@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Úhlový rozsah:	160° linear
Rozlišení:	0.09 °
Systémová odchylka:	± 0,25 %
Teplotní drift:	± 0,2 % (Full Scale)
Maximální snímací vzdálenost:	5 mm, with magnet rotor MSFS
Osová nesouměrnost (max.):	0.4 mm

Elektrické parametry

Čas odezvy:	< 4 ms
Rozsah napájecího napětí +Vs:	5 VDC
Maximální spotřeba proudu (bez zátěže):	10 mA
Výstupní signál:	0,5 ... 4,5 VDC
Odpor zátěže:	> 1000 Ohm
Výstupní obvod:	Voltage output
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	No

Mechanické parametry

Způsoby připojení:	Flylead connector PUR M8, L=200 mm
Konstrukce:	Cylindrical threaded
Materiál pouzdra:	Brass nickel plated
Rozměry:	18 mm
Materiál aktivní části:	PBTP

Okolní podmínky

Pracovní teplota:	-40 - +85 °C
Třída krytí:	IP 67

Příslušenství

Obsahuje:Magnetické stupnice Periferie Montážní příslušenství Kabely s volným koncem LED-Kabely s volným koncem Kabely

Magnetické stupnice

Další podobné produkty naleznete v kategorii: Montážní příslušenství

Produkt (4) / Popis	Produktová skupina	Skladová dostupnost
MMFN AA01X06 - On-axis magnet for bearingless encoders For cost-efficient adhesive mounting Operating temperature -40...+100 °C Packing unit: 10 pieces	Magnety	na dotaz
MMFS AA03X08 - On-axis magnet for bearingless encoders For cost-efficient adhesive mounting Operating temperature -40...+180 °C Packing unit: 10 pieces	Magnety	na dotaz
MSFN AA01X06 - Magnetic rotor for bearingless encoder Simple screw mounting For 6 mm shaft diameter Operating temperature -40...+85 °C	Magnety	na dotaz
MSFS AA03X08 - Magnetic rotor for bearingless encoder Simple screw mounting For 6 mm shaft diameter Operating temperature -40...+125 °C	Magnety	na dotaz

Periferie

Další podobné produkty naleznete v kategorii: Periferie

Foto	Produkt (2)	Produktová skupina	Skladová dostupnost
	ZPOWS-ALL.24V - Test unit for sensors	Periferie	na dotaz
	ZTEST-ALL.ANALOG - Test unit for sensors analog & digital	Periferie	na dotaz

Montážní příslušenství

Další podobné produkty naleznete v kategorii: Montážní příslušenství

Produkt (4) / Popis	Produktová skupina	Skladová dostupnost
Sensofix series 18 - Sensofix series 18 Clamps made of stainless steel Ball pivots made of galvanized steel Mounting panel made of stainless steel	Montážní příslušenství	na dotaz
ZADAP-M18.LONG - Mounting bracket long series 18 (L design) Material: Steel galvanized	Montážní příslušenství	10 ks
ZADAP-M18.SHORT - Mounting bracket short series 18 (L design) Material: Steel galvanized	Montážní příslušenství	na dotaz
ZADAP-M18.STANDARD - Mounting bracket series 18 Material: Steel galvanized	Montážní příslušenství	na dotaz

Kabely s volným koncem

Další podobné produkty naleznete v kategorii: Kabely a konektory

Produkt (35) / Popis	Délka kabelu	Skladová dostupnost
CAM8.A3-11230322 M8, female, A-coded, 3-poles; PUR, 200 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	> 15 ks
CAM8.A3-11230323 M8, female, A-coded, 3-poles; PUR, 300 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM8.A3-11230324 M8, female, A-coded, 3-poles; PUR, 500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	> 15 ks
CAM8.A3-11230325 M8, female, A-coded, 3-poles; PUR, 1000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	5 ks
CAM8.A3-11230326 M8, female, A-coded, 3-poles; PUR, 200 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	> 15 ks
CAM8.A3-11230327 M8, female, A-coded, 3-poles; PUR, 500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	> 15 ks
CAM8.A3-11230328 M8, female, A-coded, 3-poles; PUR, 1000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz
CAM8.A3-11230329 M8, female, A-coded, 3-poles; PUR, 500 cm, shielded, free cable end Dragchain capable Head A: IP65, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM8.A3-11230330 M8, female, A-coded, 3-poles; PUR, 500 cm, shielded, free cable end Dragchain capable Head A: IP65, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM8.A3-11230388 M8, female, A-coded, 3-poles; PUR, 100 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM8.A3-11230389 M8, female, A-coded, 3-poles; PUR, 100 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM8.A3-11230396 M8, female, A-coded, 3-poles; PUR, 100 cm, shielded, free cable end Dragchain capable Head A: IP65, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM8.A3-11230397 M8, female, A-coded, 3-poles; PUR, 100 cm, shielded, free cable end Dragchain capable Head A: IP65, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM8.A3-11231026 M8, female, A-coded, 3-poles; PUR, 1500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM8.A3-11231027 M8, female, A-coded, 3-poles; PUR, 300 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM8.A3-11231028 M8, female, A-coded, 3-poles; PUR, 1500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM8.A3-11231042 M8, female, A-coded, 3-poles; PUR, 200 cm, shielded, free cable end Dragchain capable Head A: IP65, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM8.A3-11231043 M8, female, A-coded, 3-poles; PUR, 300 cm, shielded, free cable end Dragchain capable Head A: IP65, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM8.A3-11231044 M8, female, A-coded, 3-poles; PUR, 1000 cm, shielded, free cable end Dragchain capable Head A: IP65, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz
CAM8.A3-11231046 M8, female, A-coded, 3-poles; PUR, 1500 cm, shielded, free cable end Dragchain capable Head A: IP65, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM8.A3-11231047 M8, female, A-coded, 3-poles; PUR, 200 cm, shielded, free cable end Dragchain capable Head A: IP65, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM8.A3-11231049 M8, female, A-coded, 3-poles; PUR, 300 cm, shielded, free cable end Dragchain capable Head A: IP65, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM8.A3-11231050 M8, female, A-coded, 3-poles; PUR, 1000 cm, shielded, free cable end Dragchain capable Head A: IP65, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz
CAM8.A3-11231053 M8, female, A-coded, 3-poles; PUR, 1500 cm, shielded, free cable end Dragchain capable Head A: IP65, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM8.A3-11231067 M8, female, A-coded; 3-poles; PUR, 500 cm, shielded, free cable end Dragchain capable Head A: IP65, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM8.A3-11233192 M8, female, A-coded, 3-poles; PUR, 2000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz
CAM8.A3-11233194 M8, female, A-coded, 3-poles; PUR, 2000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz
CAM8.A3-11233210 M8, female, A-coded, 3-poles; PUR, 2000 cm, shielded, free cable end Dragchain capable Head A: IP65, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz
CAM8.A3-11233212 M8, female, A-coded, 3-poles; PUR, 2000 cm, shielded, free cable end Dragchain capable Head A: IP65, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz
CAM8.A3-11233214 M8, female, A-coded; 3-poles; PUR, 100 cm, shielded, free cable end Dragchain capable Head A: IP65, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM8.A3-11233215 M8, female, A-coded; 3-poles; PUR, 200 cm, shielded, free cable end Dragchain capable Head A: IP65, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM8.A3-11233216 M8, female, A-coded; 3-poles; PUR, 300 cm, shielded, free cable end Dragchain capable Head A: IP65, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM8.A3-11233217 M8, female, A-coded; 3-poles; PUR, 1000 cm, shielded, free cable end Dragchain capable Head A: IP65, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz
CAM8.A3-11233218 M8, female, A-coded; 3-poles; PUR, 1500 cm, shielded, free cable end Dragchain capable Head A: IP65, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM8.A3-11233219 M8, female, A-coded; 3-poles; PUR, 2000 cm, shielded, free cable end Dragchain capable Head A: IP65, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz

LED-Kabely s volným koncem

Další podobné produkty naleznete v kategorii: Kabely a konektory

Produkt (14) / Popis	Délka kabelu	Skladová dostupnost
CAM8.A3-11230390 M8, female, A-coded, 3-poles; PUR, 100 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	1 m	na dotaz
CAM8.A3-11230391 M8, female, A-coded, 3-poles; PUR, 500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	5 m	na dotaz
CAM8.A3-11230392 M8, female, A-coded, 3-poles; PUR, 100 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	1 m	na dotaz
CAM8.A3-11230393 M8, female, A-coded, 3-poles; PUR, 500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	5 m	na dotaz
CAM8.A3-11231029 M8, female, A-coded, 3-poles; PUR, 200 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	2 m	na dotaz
CAM8.A3-11231030 M8, female, A-coded, 3-poles; PUR, 300 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	3 m	na dotaz
CAM8.A3-11231031 M8, female, A-coded, 3-poles; PUR, 1000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	10 m	na dotaz
CAM8.A3-11231032 M8, female, A-coded, 3-poles; PUR, 1500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	15 m	na dotaz
CAM8.A3-11231033 M8, female, A-coded, 3-poles; PUR, 200 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	2 m	na dotaz
CAM8.A3-11231034 M8, female, A-coded, 3-poles; PUR, 300 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	3 m	na dotaz
CAM8.A3-11231035 M8, female, A-coded, 3-poles; PUR, 1000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	10 m	na dotaz
CAM8.A3-11231036 M8, female, A-coded, 3-poles; PUR, 1500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	15 m	na dotaz
CAM8.A3-11233196 M8, female, A-coded, 3-poles; PUR, 2000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	20 m	na dotaz
CAM8.A3-11233198 M8, female, A-coded, 3-poles; PUR, 2000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	20 m	na dotaz

Kabely

Další podobné produkty naleznete v kategorii: Kabely a konektory

Produkt (42) / Popis	Délka kabelu	Skladová dostupnost
CAM12.A3-11230363 M12, male, A-coded, 3-poles; PUR, 100 cm; M8, female, A-coded, 3-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM12.A3-11230426 M12, male, A-coded, 3-poles; PUR, 200 cm; M8, female, A-coded, 3-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM12.A3-11230427 M12, male, A-coded, 3-poles; PUR, 500 cm; M8, female, A-coded, 3-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM12.A3-11230437 M12, male, A-coded, 3-poles; PUR, 500 cm; M8, female, A-coded, 3-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM12.A3-11230438 M12, male, A-coded, 3-poles; PUR, 500 cm; M8, female, A-coded, 3-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM12.A3-11230866 M12, male, A-coded, 3-poles; PUR, 300 cm; M8, female, A-coded, 3-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM12.A3-11230867 M12, male, A-coded, 3-poles; PUR, 1000 cm; M8, female, A-coded, 3-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz
CAM12.A3-11230878 M12, male, A-coded, 3-poles; PUR, 200 cm; M8, female, A-coded, 3-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM12.A3-11230879 M12, male, A-coded, 3-poles; PUR, 300 cm; M8, female, A-coded, 3-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM12.A3-11230880 M12, male, A-coded, 3-poles; PUR, 1000 cm; M8, female, A-coded, 3-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz
CAM12.A3-11230881 M12, male, A-coded, 3-poles; PUR, 200 cm; M8, female, A-coded, 3-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM12.A3-11230882 M12, male, A-coded, 3-poles; PUR, 1000 cm; M8, female, A-coded, 3-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz
CAM12.A3-11232962 M12, male, A-coded, 3-poles; PUR, 1500 cm; M8, female, A-coded, 3-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM12.A3-11232963 M12, male, A-coded, 3-poles; PUR, 2000 cm; M8, female, A-coded, 3-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz
CAM12.A3-11232976 M12, male, A-coded, 3-poles; PUR, 100 cm; M8, female, A-coded, 3-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM12.A3-11232977 M12, male, A-coded, 3-poles; PUR, 1500 cm; M8, female, A-coded, 3-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM12.A3-11232978 M12, male, A-coded, 3-poles; PUR, 2000 cm; M8, female, A-coded, 3-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz
CAM12.A3-11232980 M12, male, A-coded, 3-poles; PUR, 100 cm; M8, female, A-coded, 3-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM12.A3-11232981 M12, male, A-coded, 3-poles; PUR, 300 cm; M8, female, A-coded, 3-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM12.A3-11232982 M12, male, A-coded, 3-poles; PUR, 1500 cm; M8, female, A-coded, 3-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM12.A3-11232983 M12, male, A-coded, 3-poles; PUR, 2000 cm; M8, female, A-coded, 3-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz
CAM8.A3-11230371 M8, male, A-coded, 3-poles; PUR, 100 cm; M8, female, A-coded, 3-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM8.A3-11230373 M8, male, A-coded, 3-poles; PUR, 500 cm; M8, female, A-coded, 3-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM8.A3-11230511 M8, male, A-coded, 3-poles; PUR, 100 cm; M8, female, A-coded, 3-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	1 m	na dotaz
CAM8.A3-11230512 M8, male, A-coded, 3-poles; PUR, 300 cm; M8, female, A-coded, 3-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	3 m	na dotaz
CAM8.A3-11230513 M8, male, A-coded, 3-poles; PUR, 500 cm; M8, female, A-coded, 3-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	5 m	na dotaz
CAM8.A3-11231054 M8, male, A-coded, 3-poles; PUR, 1000 cm; M8, female, A-coded, 3-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz
CAM8.A3-11231055 M8, male, A-coded, 3-poles; PUR, 1500 cm; M8, female, A-coded, 3-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM8.A3-11231060 M8, male, A-coded, 3-poles; PUR, 200 cm; M8, female, A-coded, 3-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	2 m	na dotaz
CAM8.A3-11231061 M8, male, A-coded, 3-poles; PUR, 1000 cm; M8, female, A-coded, 3-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	10 m	na dotaz
CAM8.A3-11231062 M8, male, A-coded, 3-poles; PUR, 1500 cm; M8, female, A-coded, 3-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	15 m	na dotaz
CAM8.A3-11231068 M8, male, A-coded, 3-poles; PUR, 200 cm; M8, female, A-coded, 3-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM8.A3-11231069 M8, male, A-coded, 3-poles; PUR, 300 cm; M8, female, A-coded, 3-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM8.A3-11233157 M8, male, A-coded, 3-poles; PUR, 200 cm; M8, female, A-coded, 3-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM8.A3-11233158 M8, male, A-coded, 3-poles; PUR, 300 cm; M8, female, A-coded, 3-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM8.A3-11233159 M8, male, A-coded, 3-poles; PUR, 2000 cm; M8, female, A-coded, 3-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz
CAM8.A3-11233166 M8, male, A-coded, 3-poles; PUR, 2000 cm; M8, female, A-coded, 3-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	20 m	na dotaz
CAM8.A3-11233173 M8, male, A-coded, 3-poles; PUR, 100 cm; M8, female, A-coded, 3-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM8.A3-11233174 M8, male, A-coded, 3-poles; PUR, 500 cm; M8, female, A-coded, 3-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM8.A3-11233175 M8, male, A-coded, 3-poles; PUR, 1000 cm; M8, female, A-coded, 3-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz
CAM8.A3-11233176 M8, male, A-coded, 3-poles; PUR, 1500 cm; M8, female, A-coded, 3-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM8.A3-11233177 M8, male, A-coded, 3-poles; PUR, 2000 cm; M8, female, A-coded, 3-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz

Napište nám

V případě jakéhokoli dotazu nás neváhejte kontaktovat. Velice rádi Vám odpovíme.

ajptech.cz logo

Produkt (50)	Rozměr příruby	Kroků za otáčku	Pulsy/vlny na otáčku
BMMK 58 flexible	ø48...59 mm	12 bit
BMSK 58 flexible	ø48...59 mm	12 bit
EAM360-K - CANopen®	ø25...36 mm	14 bit
EAM360-K - SSI	ø25...36 mm	14 bit
EAM360R-K - Analog	ø25...36 mm
EAM360R-K - CANopen®/SAE J1939	ø25...36 mm	14 bit
EAM500R-KM6.7MC0.A3601.A	ø50 mm
EAM500R-KM6.7MV3.A3601.A	ø50 mm
EAM500R-KM6.KMC514000.A	ø50 mm	14 bit
EAM500R-KM6.KMC614000.A	ø50 mm	14 bit
EAM500R-KM6.KSC614000.A	ø50 mm	14 bit
EAM500R-KM7.7MC0.A3601.A	ø50 mm
EAM500R-KM7.7MV6.A3601.A	ø50 mm
EAM500R-KM7.KMC514000.A	ø50 mm	14 bit
EAM500R-KM7.KMC614000.A	ø50 mm	14 bit
EAM500R-KM7.KSC614000.A	ø50 mm	14 bit
EAM580-K - CANopen®	ø48...59 mm	14 bit
EAM580-K - EtherCAT	ø48...59 mm	14 bit
EAM580-K - EtherNet/IP	ø48...59 mm	14 bit
EAM580-K - PROFINET	ø48...59 mm	14 bit
EAM580-K - SSI	ø48...59 mm	14 bit
EAM580R-K - Analog	ø48...59 mm
EAM580R-K - CANopen®/SAE J1939	ø48...59 mm	14 bit
EB200E.IR-FN.8L2C2.008L			1 … 255 256 … 511 512 … 1023 1024 … 2047
EB200E.IR-FN.8L2C4.008L			1 … 255 256 … 511 512 … 1023 1024 … 2047
EB200E.IR-FN.8L2C5.008L			1 … 255 256 … 511 512 … 1023 1024 … 2047
EB200E.IR-FN.8L2E0.008L			1 … 255 256 … 511 512 … 1023 1024 … 2047
EB200E.IR-FN.8L2GN.008L			1 … 255 256 … 511 512 … 1023 1024 … 2047
EB360.MC-C.S012.V4GC1.13120N	ø25...36 mm	13 bit
EB360.MC-C.S012.V4GJN.13120N	ø25...36 mm	13 bit
EB360.MC-C.TM8A.V4GC1.13120N	ø25...36 mm	13 bit
EB360.MC-C.TM8A.V4GJN.13120N	ø25...36 mm	13 bit
EB360.SC-C.S012.V4GJN.13000N	ø25...36 mm	13 bit
EB360R.MC-C.S006.AC6HN.14180N	ø25...36 mm	14 bit
EB360R.MC-C.S012.AC6C1.14180N	ø25...36 mm	14 bit
EB360R.MC-C.S012.AC6HN.14180N	ø25...36 mm	14 bit
EB360R.MC-C.S012.AC6VN.14180N	ø25...36 mm	14 bit
EB360R.MC-C.TM8A.AC6C1.14180N	ø25...36 mm	14 bit
EB360R.MC-C.TM8A.AC6HN.14180N	ø25...36 mm	14 bit
EB360R.MC-C.TM8A.AC6VN.14180N	ø25...36 mm	14 bit
EB360R.MC-C.TM8A.AC9C1.14180N	ø25...36 mm	14 bit
EB360R.SC-C.S012.AC6HN.14000N	ø25...36 mm	14 bit
EB360R.SC-C.TM8A.AC6HN.14000N	ø25...36 mm	14 bit
EB360R.SC-C.TM8A.AC9C1.14000N	ø25...36 mm	14 bit
HMC16	ø90 - 160 mm
ITD49H00 - Rectangular signal			1 … 255 256 … 511 512 … 1023 1024 … 2047 2048 … 3600
ITD49H00 - Sine signal			1 … 255
ITD69H00 - Rectangular signal			1 … 255 256 … 511 512 … 1023 1024 … 2047 2048 … 3600 3601 … 5000
ITD69H00 - Sine signal			1 … 255
ITD69H02 - Rectangular signal			1 … 255 256 … 511 512 … 1023 1024 … 2047 2048 … 3600 3601 … 5000

MDRM 18U9501/KS35P - Magnetic angle sensors

Poradím vám

Parametry

Základní parametry

Elektrické parametry

Mechanické parametry

Okolní podmínky

Nákresy

Výkresy

Diagram připojení

Ke stažení

Datový list

Rychlý start

Certifikáty/ osvědčení

Další informace

CAD

Příslušenství

Magnetické stupnice

Periferie

Montážní příslušenství

Kabely s volným koncem

LED-Kabely s volným koncem

Kabely

Podpora

Zájem či dotaz na produkt

Podobné produkty

Napište nám

Informace o cookies

Nastavení

Technické cookies

Analytické cookies

Reklamní cookies
