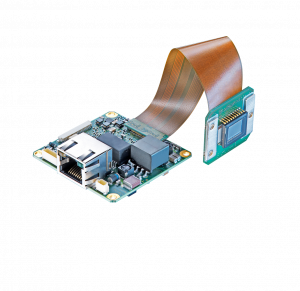

MXGC20

2040 × 1084 px
ams (CMOSIS) CMV2000
2/3″ CMOS
55 fps
Gigabit Ethernet

Objednací číslo: 11094942
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jakub Sedlmajer

Produktový specialista pro průmyslové čtečky a kamerové systémy
BAUMER | IOSS

+420 739 087 013

jakub.sedlmajer@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Informace o snímači

Snímač:	ams (CMOSIS) CMV2000
Mono/Color:	Mono
Typ snímače:	2/3″ CMOS
Typ závěrky:	Global shutter
Rozlišení:	2040 × 1084 px
Rozměry pixelu:	5.5 × 5.5 µm

Formáty obrazu

Formáty obrazu, max. frekvence snímků na komunikačním rozhraní:	Full Frame, 2040 × 1084 px, max. 55 fps
Formát pixelu:	Mono8 Mono12 Mono12 Packed

Předzpracování obrazu

Analogové ovládací prvky:	Gain (0 -18 dB) Offset (0 - 255 LSB 12 Bit)
Barevné modely:	Mono

Funkce kamery

Synchronizace:	free running trigger
Zdroje spouštěcího signálu (trigger):	Hardware Software ActionCommand
Zpoždění spouštěcího signálu (trigger):	0 - 2 sec, tracking and buffering of up to 512 trigger signals
Sequencer:	Automated control for series of images using different sets of parameters
Parametry sequenceru:	Exposure time gain factor output line ROI Offset x ROI Offset y
Digitální vstupy:	1 input line
Digitální výstupy:	3 output lines
Interní vyrovnávací paměť:	120 MB

Rozhraní a připojení

Datové rozhraní:	Gigabit Ethernet, Transfer rate 1000 Mbits/sec, Fast Ethernet, Transfer rate 100 Mbits/sec, Connector: 8P8C Modular Jack (RJ45)
Rozhraní:	JSTBM08B-SRSS-TB 8 pins
Napájení:	JSTBM03B-SRSS-TB 3 pins

Mechanické parametry

Závit objektivu:	C-mount / S-mount (adapter)
Šířka:	28.5 mm (sensor print) 48 mm (system print)
Výška:	28.5 mm (sensor print) 48 mm (system print)
Hmotnost:	≤ 30 g
Materiál:	without housing

Elektrické parametry

Rozsah napájecího napětí +Vs:	12 - 24 V DC (external power supply) 36 - 57 V DC (Power over Ethernet)
Spotřeba energie:	Approx. 3.5 W @ 12 VDC and 55.0 fps Approx. 3.8 W @ 48 VDC (PoE) and 55.0 fps

Nevolatilní paměť

Velikost flash paměti:

128 kB

Podmínky prostředí

Pracovní teplota:	Depends on the thermal encapsulation (T_max = 70 °C @ Measurement Point)
Vlhkost:	10 - 90 % (non-condensing)

Digitální vstupy|výstupy

Linky:

1 input line
3 output lines

Prohlášení o shodě

Prohlášení o shodě:

CE
RoHS
EAC

Příslušenství

Obsahuje:Napájení Starter Kit PCIe/Adapter Příslušenství k objektivu Objektiv Síťové prvky Kabel Držáky a chladiče

Napájení

Další podobné produkty naleznete v kategorii: Příslušenství

Foto	Produkt (1)
	Power Supply 24V/1,0A international MXG

Starter Kit

Další podobné produkty naleznete v kategorii: Starter kity

Foto	Produkt (1) / Popis	Skladová dostupnost
	MXGxx Starter Kit Gigabit Ethernet PCI Express interface board Gigabit Ethernet cable 3,0 m process interface cable 0,15 m international power supply 24V/1,0A MXG Heat Sink Kit MX C-mount kits (mono and color) Software (WINDOWS, LINUX, LINUX ARM) via Download camera not included	na dotaz

PCIe/Adapter

Další podobné produkty naleznete v kategorii: PCIe | Adaptéry

Foto	Produkt (3) / Popis	Skladová dostupnost
	PCIe Ethernet Server Adapter I210 Gigabit Ethernet network adapter PCIe x1 (single lane) server adapter single GigE port supports screw lock connectors	na dotaz
	ZVA-Intel_Eth_Serv Adaptr_I350-T2V2 Gigabit Ethernet network adapter PCIe x2 (dual lane) server adapter single GigE port	na dotaz
	ZVA-PCIe-1672E-AE Gigabit Ethernet interface board PCIe x4 (quad lane) Dual GigE port Note: 4 lane PCI Express connector required	na dotaz

Příslušenství k objektivu

Další podobné produkty naleznete v kategorii: Objektivy | Příslušenství k objektivům

Foto	Produkt (7) / Popis	Skladová dostupnost
	Close-up ring set ZVS-FP-RGST six-piece Close-up ring set ZVS-FP-RGST six-piece 0,5, 1, 5, 10, 20, 40 mm	1 ks
	Filter CL/27 (R2) ROT PENTAX Ricoh color filter (red)	na dotaz
	Filter Pol PENTAX PL27 Ricoh polarization filter linear filter thread	na dotaz
	MX C-Mount Kit Color content: C-mount adapter, sealings, screws, retaining bracket, spacers, IR Cut filter sealing depends on camera model	na dotaz
	MX S-Mount Kit Color content: S-mount adapter, sealings, screws, retaining bracket, spacers, IR Cut filter sealing depends on camera model	na dotaz
	ZVI-FILTER POL. PL30.5 C91353 Ricoh polarization filter linear filter thread M30.5	na dotaz
	ZVI-Filter Pol. PL40.5 C91301 Ricoh polarization filter linear filter thread M40.5	1 ks

Objektiv

Další podobné produkty naleznete v kategorii: Objektivy | Příslušenství k objektivům

Foto	Produkt (36) / Popis	Skladová dostupnost
	Obj Kowa LM12HC 12mm/f1,4 Kowa lens 12,5 mm F 1,4-16 format 1" M.O.D. 0,3 m C-mount	na dotaz
	Obj Kowa LM12HC-SW 12,5mm/f1,4 Kowa lens 12,5 mm F 1,4-16 format 1" locating screw for aperture and focus via RS485 interface M.O.D. 0,9 m C-mount	na dotaz
	Obj Kowa LM12XC 12mm/f2,0 Kowa lens 12 mm F 2,0-22 format 4/3" M.O.D. 0,1 m C-mount	na dotaz
	Obj Kowa LM16HC 16mm/f1,4 Kowa lens 16 mm F 1,4-16 format 1" M.O.D. 0,3 m C-mount	na dotaz
	Obj Kowa LM16XC 16mm/f2,0 Kowa lens 16 mm F 2,0-22 format 4/3" M.O.D. 0,1 m C-mount	na dotaz
	Obj Kowa LM25HC 25mm/f1,4 Kowa lens 25 mm F 1,4-16 format 1" M.O.D. 0,3 m C-mount	1 ks
	Obj Kowa LM25HC-SW 25mm/f1,4 Kowa lens 25 mm F 1,4-16 format 1" M.O.D. 0,3 m SWIR optimized C-mount	na dotaz
	Obj Kowa LM25XC 25mm/f2,0 Kowa lens 25 mm F 2,0-16 format 4/3" M.O.D. 0,15 m C-mount	na dotaz
	Obj Kowa LM35HC 35mm/f1,4 Kowa lens 35 mm F 1,4-16 format 1" M.O.D. 0,3 m C-mount	na dotaz
	Obj Kowa LM35HC-SW 35mm/f1,4 Kowa lens 35 mm F 1,4-16 format 1" M.O.D. 0,4 m SWIR optimized C-mount	na dotaz
	Obj Kowa LM35XC 35mm/f2,0 Kowa lens 35 mm F 2,0-22 format 4/3" M.O.D. 0,2 m C-mount	na dotaz
	Obj Kowa LM50HC 50mm/f1,4 Kowa lens 50 mm F 1,4-16 format 1" M.O.D. 0,5 m C-mount	na dotaz
	Obj Kowa LM50HC-SW 50mm/f1,4 Kowa lens 50mm F1,4-16 format 1" M.O.D. 0,6 m SWIR optimized C-mount	na dotaz
	Obj Kowa LM8HC 8mm/f1,4 Kowa lens 8 mm F 1,4-16 format 1" M.O.D. 0,1 m C-mount	na dotaz
	Obj LINOS MeVis C 25mm/f1,6 Linos lens 25 mm F 1,6-16 format 1" M.O.D. 0,26 m C-mount	na dotaz
	Obj TOURMALINE 2,8/50 C Schneider Kreuznach lens 50 mm F 2,8-16 format 1.3" M.O.D. 0,135 m C-mount	na dotaz
	Obj TURQUOISE 1,8/16 C Schneider Kreuznach lens 16 mm F 1,8-22 format 1" M.O.D. 0,155 m C-mount	na dotaz
	Obj TURQUOISE 1,9/10 C Schneider Kreuznach lens 10 mm F 1,9-16 format 1" M.O.D. 0,092 m C-mount	na dotaz
	ZVL-Dimension_2.8/8_C Carl Zeiss lens 8 mm F 2,8-22 format 4/3\'\' M.O.D. 0,102 m locating screw for aperture and focus C-mount	na dotaz
	ZVL-Dimension_2/12_C Carl Zeiss lens 12 mm F 2,0-22 format 4/3\'\' M.O.D. 0,101 m locating screw for aperture and focus C-mount	na dotaz
	ZVL-Dimension_2/18_C Carl Zeiss lens 18 mm F 2,0-22 format 4/3\'\' M.O.D. 0,090 m locating screw for aperture and focus C-mount	na dotaz
	ZVL-Dimension_2/25_C Carl Zeiss lens 25 mm F 2,0-22 format 4/3\'\' M.O.D. 0,152 m locating screw for aperture and focus C-mount	na dotaz
	ZVL-Dimension_2/35_C Carl Zeiss lens 35 mm F 2,0-22 format 4/3\'\' M.O.D. 0,209 m locating screw for aperture and focus C-mount	na dotaz
	ZVL-Dimension_2/50_C Carl Zeiss lens 50 mm F 2,0-22 format 4/3\'\' M.O.D. 0,311 m locating screw for aperture and focus C-mount	na dotaz
	ZVL-FL-BC1220-9M Ricoh Imaging lens 12 mm F 2.0-16 format 1,1" M.O.D. 0.08 m locating screw for aperture and focus C-mount	na dotaz
	ZVL-FL-BC1618-9M Ricoh Imaging lens 16 mm F 1.8-16 format 1,1" M.O.D. 0.08 m locating screw for aperture and focus C-mount	na dotaz
	ZVL-FL-BC2518-9M Ricoh Imaging lens 25 mm F 1,8-16 format 1,1" M.O.D. 0,1 m locating screw for aperture and focus C-mount	na dotaz
	ZVL-FL-BC3518-9M Ricoh Imaging lens 35 mm F 1,6-16 format 1,1" M.O.D. 0,15 m locating screw for aperture and focus C-mount	na dotaz
	ZVL-FL-BC5024-9M Ricoh Imaging lens 50 mm F 2,4-22 format 1,1" M.O.D. 0,2 m locating screw for aperture and focus C-mount	na dotaz
	ZVL-FL-BC7528-9M Ricoh Imaging lens 75 mm F 2,8-32 format 1,1" M.O.D. 0,25 m locating screw for aperture and focus C-mount	na dotaz
	ZVL-V0828-MPY Computar lens 8 mm F 2,8-16 format 1,1" M.O.D. 0,2 m locating screw for aperture and focus C-mount	na dotaz
	ZVL-V1228-MPY Computar lens 12 mm F 2,8-16 format 1,1" M.O.D. 0,3 m locating screw for aperture and focus C-mount	1 ks
	ZVL-V1628-MPY Computar lens 16 mm F 2,8-16 format 1,1" M.O.D. 0,3 m locating screw for aperture and focus C-mount	na dotaz
	ZVL-V2528-MPY Computar lens 25 mm F 2,8-16 format 1,1" M.O.D. 0,3 m locating screw for aperture and focus C-mount	na dotaz
	ZVL-V3528-MPY Computar lens 35 mm F 2,8-16 format 1,1" M.O.D. 0,3 m locating screw for aperture and focus C-mount	na dotaz
	ZVL-V5028-MPY Computar lens 50 mm F 2,8-16 format 1,1" M.O.D. 0,55 m locating screw for aperture and focus C-mount	na dotaz

Síťové prvky

Další podobné produkty naleznete v kategorii: Síťové prvky

Foto	Produkt (1) / Popis	Skladová dostupnost
	GigE Power Switch GigE switch PoE and Jumbo Frame support 4x 1000base-T DIN rail mounting operating voltage: 24-48 V; PoE requires 48 V	na dotaz

Kabel

Další podobné produkty naleznete v kategorii: Kabely

Foto	Produkt (11) / Popis	Skladová dostupnost
	Cable GigE RJ45/RJ45, 3,0 m Kabel rozhraní Gigabit Ethernet CAT7 Délka 3,0 m	na dotaz
	Cable GigE RJ45/RJ45, 6,0 m Kabel rozhraní Gigabit Ethernet CAT7 Délka 6,0 m	na dotaz
	Cable GigE RJ45s/RJ45, 10,0 m, flex v2 Kabel rozhraní Gigabit Ethernet CAT5e RJ45 (šroubovací) na RJ45 vhodné pro kabelové nosiče a torzní aplikace Délka 10,0 m	na dotaz
	Cable GigE RJ45s/RJ45, 20,0 m, flex v2 Kabel rozhraní Gigabit Ethernet CAT5e RJ45 (šroubovací) na RJ45 vhodné pro kabelové nosiče a torzní aplikace Délka 20 m	na dotaz
	Cable GigE RJ45s/RJ45, 30,0 m, flex v2 Kabel rozhraní Gigabit Ethernet CAT5e RJ45 (šroubovací) na RJ45 vhodné pro kabelové nosiče a torzní aplikace Délka 30 m	na dotaz
	Kabel GigE RJ45s/RJ45, 10,0 m, chain Gigabit Ethernet interface cable CAT6 RJ45 (screw lock) to RJ45 cable carrier compatible length 10,0 m	na dotaz
	Kabel GigE RJ45s/RJ45, 15,0 m, chain Gigabit Ethernet interface cable CAT6 RJ45 (screw lock) to RJ45 cable carrier compatible length 15,0 m	na dotaz
	Kabel GigE RJ45s/RJ45, 20,0 m, chain Gigabit Ethernet interface cable CAT6 RJ45 (screw lock) to RJ45 cable carrier compatible length 20,0 m	na dotaz
	Kabel GigE RJ45s/RJ45, 5,0 m, chain Gigabit Ethernet interface cable CAT6 RJ45 (screw lock) to RJ45 cable carrier compatible length 5,0 m	5 ks
	MX Flexprint 200 mm flexprint to connect system and sensor print of cameras of the MX series length 20 cm	na dotaz
	Z-ESG JSFV0015 process interface cable for Baumer board level cameras JST crimp connector, female, 8-pin to open wires AWG32 length 0,15 m	na dotaz

Držáky a chladiče

Další podobné produkty naleznete v kategorii: Držáky | Chladiče

Foto	Produkt (1) / Popis	Skladová dostupnost
	MXG Heat Sink Kit chladič pro kamery na úrovni desky GigE včetně šroubů (s inbusem), držáku a tepelně vodivých podložek	na dotaz

Produkt (3)	Senzor	Senzor typ	Snímkovací frekvence	Rozlišení kamery	Skladová dostupnost
MXGC20	ams (CMOSIS) CMV2000	2/3″ CMOS	51 … 100 fps	> 2 – 5 MP	na dotaz
MXGC40	ams (CMOSIS) CMV4000	1″ CMOS	21 … 30 fps	> 2 – 5 MP	na dotaz
MXGC40.2	ams (CMOSIS) CMV4000 V3	1″ CMOS	21 … 30 fps	> 2 – 5 MP	na dotaz
