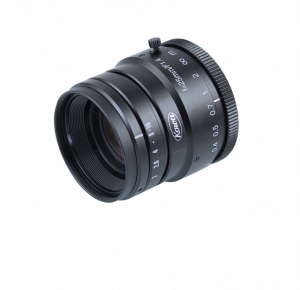

Obj Kowa LM25HC 25mm/f1,4

Kowa lens
25 mm
F 1,4-16
format 1"
M.O.D. 0,3 m
C-mount

Objednací číslo: 11092602
Výrobce: Baumer Electric AG

Dostupnost: 1 ks (zobrazit skladovou dostupnost)

Můžete mít ihned. Možnost osobního odběru v pracovní dny od 8:00 do 16:00 na adrese firmy po předchozí telefonické dohodě.

Zboží odesíláme okamžitě. Zboží, které závazně objednáte v pracovních dnech do 11:00 hodin, vám odešleme ještě tentýž den.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jakub Sedlmajer

Produktový specialista pro průmyslové čtečky a kamerové systémy
BAUMER | IOSS

+420 739 087 013

jakub.sedlmajer@ajptech.cz

Parametry

Ke stažení

Podpora

Skladová dostupnost

Podobné produkty

Parametry

Základní parametry

Výrobce:

Kowa

Mechanické parametry

Závit objektivu:	C-mount
Rozměry:	43 mm × 43 mm
Max. vnější průměr:	43 mm (without knurled screws) 53 mm (with knurled screws)
Max. délka (bez závitu):	43 mm
Hmotnost:	≤ 125 g
Závit pro filtr:	M 35,5 × 0,5

Parametry optiky

Rozlišení objektivu:	7 MP
Rozlišení v pixelech:	5 µm
Ohnisková vzdálenost:	25 mm
Formát (max. velikost snímače):	1″
Clona:	F1,4-16
Typ clony:	Manual
Minimální pracovní vzdálenost:	0.3 m
Horizontální obrazový úhel:	29.3 °
Vertikální obrazový úhel:	22 °
Diagonální obrazový úhel:	36.6 °
Ve formátu obrazu:	12,8 × 9,6 mm

Podmínky prostředí

Pracovní teplota:

-10 - +50 °C
