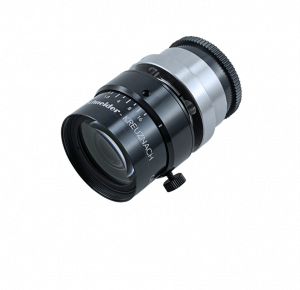

Obj TURQUOISE 1,8/16 C

Schneider Kreuznach lens
16 mm
F 1,8-22
format 1"
M.O.D. 0,155 m
C-mount

Objednací číslo: 11076106
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jakub Sedlmajer

Produktový specialista pro průmyslové čtečky a kamerové systémy
BAUMER | IOSS

+420 739 087 013

jakub.sedlmajer@ajptech.cz

Parametry

Ke stažení

Podpora

Podobné produkty

Parametry

Základní parametry

Výrobce:

Schneider Kreuznach

Mechanické parametry

Závit objektivu:	C-mount
Rozměry:	34 mm × 44,8 mm
Max. vnější průměr:	34 mm (without knurled screws) 44 mm (with knurled screws)
Max. délka (bez závitu):	40.9 mm
Hmotnost:	≤ 102 g
Závit pro filtr:	M 30,5 × 0,5

Parametry optiky

Rozlišení objektivu:	5 MP
Ohnisková vzdálenost:	16 mm
Formát (max. velikost snímače):	1″
Clona:	F1,8-22
Typ clony:	Manual
Minimální pracovní vzdálenost:	0.155 m

Podmínky prostředí

Skladovací teplota:

-25 - +70 °C
