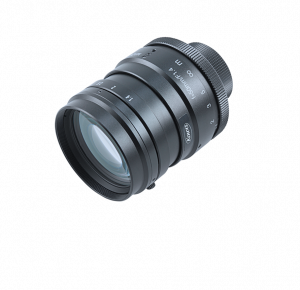

Obj Kowa LM50HC-SW 50mm/f1,4

Kowa lens
50mm
F1,4-16
format 1"
M.O.D. 0,6 m
SWIR optimized
C-mount

Objednací číslo: 11087250
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jakub Sedlmajer

Produktový specialista pro průmyslové čtečky a kamerové systémy
BAUMER | IOSS

+420 739 087 013

jakub.sedlmajer@ajptech.cz

Parametry

Ke stažení

Podpora

Podobné produkty

Parametry

Základní parametry

Výrobce:

Kowa

Mechanické parametry

Závit objektivu:	C-mount
Rozměry:	47,5 mm × 48 mm
Max. vnější průměr:	47.5 mm (without knurled screws) 57.5 mm (with knurled screws)
Max. délka (bez závitu):	48 mm
Hmotnost:	≤ 200 g
Závit pro filtr:	M 40,5 × 0,5

Parametry optiky

Rozlišení objektivu:	7 MP
Rozlišení v pixelech:	5 µm
Ohnisková vzdálenost:	50 mm
Formát (max. velikost snímače):	1″
Clona:	F1,4-16
Typ clony:	Manual
Minimální pracovní vzdálenost:	0.6 m
Horizontální obrazový úhel:	14.5 °
Vertikální obrazový úhel:	10.8 °
Diagonální obrazový úhel:	18 °
Ve formátu obrazu:	12,8 × 9,6 mm

Podmínky prostředí

Pracovní teplota:

-10 - +50 °C

Foto	Produkt (50) / Popis	Skladová dostupnost
	10102801 - Cap nut glass cover for sensors series 30 Materiál: Poniklovaná mosaz	na dotaz
	10103067 - Cap nut glass cover for sensors series 18 Materiál: Poniklovaná mosaz	na dotaz
	10103068 - Glass cover series 18 Materiál: Sklo	na dotaz
	10103226 - Glass cover series 30 Materiál: Sklo	1 ks
	10107250 - Doubling lens series 18 FZAM 18 Materiál: Termoplast (PBTP), sklo Pro dvojnásobnou snímací vzdálenost FZAM 18	na dotaz
	10107408 - Doubling lens series 30 FZAM 30 Materiál: Polykarbonát (PC), sklo Pro dvojnásobnou snímací vzdálenost FZAM 30	1 ks
	10115913 - Cap nut glass cover and doubling lens for sensors series 18 Materiál: Poniklovaná mosaz	na dotaz
	11704588 - Polarisation filter Snap-on function Size 44mm	1 ks
	Adapter CS- / C-Mount Adaptér pro upevnění objektivu CS- na C-Mount	na dotaz
	Adapter M58 / C-Mount Adaptér M58 / C-mount	na dotaz
	Adapter M58 / F-Mount Adaptér M58 / F-mount	na dotaz
	Adapter M58 / M42x1-Mount (16 mm) Adaptér M58 / M42x1-mount (16 mm)	na dotaz
	Adapter M58 / M42x1-Mount (18 mm) Adaptér M58 / M42x1-mount (18 mm)	na dotaz
	Adapter M58 / M42x1-Mount (26,8 mm) Adaptér M58 / M42x1-mount (26,8 mm)	na dotaz
	Adapter M58 / M42x1-Mount (45,5 mm) Adaptér M58 / M42x1-mount (45,5 mm)	na dotaz
	Adapter M58 / M42x1-Mount (9,9 mm) Adaptér M58 / M42x1-mount (26,8 mm)	na dotaz
	Adapter series 30 - Adapter series 30 Materiál: Termoplastický polymer (POM)	na dotaz
	Adapter series 30 for angeled fiber optics - Adapter series 30 for angeled fiber optics Materiál: Termoplastický polymer (POM)	na dotaz
	Adapter TFL-Mount / C-Mount Adaptér pro připojení objektivu z TFL-Mount (kamera) na C-Mount (objektiv)	na dotaz
	Adjusting plate series 18 - Adjusting plate series 18 Materiál: Polyester (PETP) Pro opětovné zadání při ztrátách Přiloženo ke každému skleněnému optickému vláknu typu A	na dotaz
	Close-up ring set ZVS-FP-RGST six-piece Close-up ring set ZVS-FP-RGST six-piece 0,5, 1, 5, 10, 20, 40 mm	1 ks
	Filter <780nm block 1“-32 H2,5mm daylight blocking filter up to 780nm screwable into C-mount housing (independend from lens)	1 ks
	Filter CL/27 (R2) ROT PENTAX Ricoh color filter (red)	na dotaz
	Filter IR block 1\'\'-32 H2,5mm IR - blocking filter, C-mount screwable into C-mount housing (independend from lens)	na dotaz
	Filter Pol PENTAX PL27 Ricoh polarization filter linear filter thread	na dotaz
	MX C-Mount Kit Color content: C-mount adapter, sealings, screws, retaining bracket, spacers, IR Cut filter sealing depends on camera model	na dotaz
	MX C-Mount Kit Mono content: C-mount adapter, sealings, screws, retaining bracket, spacers, cover glass sealing depends on camera model	na dotaz
	MX S-Mount Kit Color content: S-mount adapter, sealings, screws, retaining bracket, spacers, IR Cut filter sealing depends on camera model	na dotaz
	MX S-Mount Kit Mono content: S-mount adapter, sealings, screws, retaining bracket, spacers, cover glass sealing depends on camera model	na dotaz
	Obj CITRINE 1,4/12 C Schneider Kreuznach lens 12 mm F 1,4-11 format 2/3" M.O.D. 0,614 m C-mount	na dotaz
	Obj CITRINE 1,4/17 C Schneider Kreuznach lens 17 mm F 1,4-11 format 2/3" M.O.D. 0,16 m C-mount	na dotaz
	Obj CITRINE 1,4/23 C Schneider Kreuznach lens 23 mm F 1,4-11 format 2/3" M.O.D. 0,211 m C-mount	na dotaz
	Obj CITRINE 1,4/8 C Schneider Kreuznach lens 8 mm F 1.4-8 format 2/3" M.O.D. 0.072 m C-mount	na dotaz
	Obj CITRINE 1,8/4,8 C Schneider Kreuznach lens 4,8 mm F 1,8-8 format 2/3" M.O.D. 0,037 m C-mount	na dotaz
	Obj Kowa LM12HC 12mm/f1,4 Kowa lens 12,5 mm F 1,4-16 format 1" M.O.D. 0,3 m C-mount	na dotaz
	Obj Kowa LM12HC-SW 12,5mm/f1,4 Kowa lens 12,5 mm F 1,4-16 format 1" locating screw for aperture and focus via RS485 interface M.O.D. 0,9 m C-mount	na dotaz
	Obj Kowa LM12XC 12mm/f2,0 Kowa lens 12 mm F 2,0-22 format 4/3" M.O.D. 0,1 m C-mount	na dotaz
	Obj Kowa LM16HC 16mm/f1,4 Kowa lens 16 mm F 1,4-16 format 1" M.O.D. 0,3 m C-mount	na dotaz
	Obj Kowa LM16XC 16mm/f2,0 Kowa lens 16 mm F 2,0-22 format 4/3" M.O.D. 0,1 m C-mount	na dotaz
	Obj Kowa LM25HC 25mm/f1,4 Kowa lens 25 mm F 1,4-16 format 1" M.O.D. 0,3 m C-mount	1 ks
	Obj Kowa LM25HC-SW 25mm/f1,4 Kowa lens 25 mm F 1,4-16 format 1" M.O.D. 0,3 m SWIR optimized C-mount	na dotaz
	Obj Kowa LM25XC 25mm/f2,0 Kowa lens 25 mm F 2,0-16 format 4/3" M.O.D. 0,15 m C-mount	na dotaz
	Obj Kowa LM35HC 35mm/f1,4 Kowa lens 35 mm F 1,4-16 format 1" M.O.D. 0,3 m C-mount	na dotaz
	Obj Kowa LM35HC-SW 35mm/f1,4 Kowa lens 35 mm F 1,4-16 format 1" M.O.D. 0,4 m SWIR optimized C-mount	na dotaz
	Obj Kowa LM35XC 35mm/f2,0 Kowa lens 35 mm F 2,0-22 format 4/3" M.O.D. 0,2 m C-mount	na dotaz
	Obj Kowa LM50HC 50mm/f1,4 Kowa lens 50 mm F 1,4-16 format 1" M.O.D. 0,5 m C-mount	na dotaz
	Obj Kowa LM50HC-SW 50mm/f1,4 Kowa lens 50mm F1,4-16 format 1" M.O.D. 0,6 m SWIR optimized C-mount	na dotaz
	Obj Kowa LM50XC 50mm/f2.0 Kowa lens 50 mm F 2,0-22 format 4/3" M.O.D. 0,3 m C-mount	na dotaz
	Obj Kowa LM8HC 8mm/f1,4 Kowa lens 8 mm F 1,4-16 format 1" M.O.D. 0,1 m C-mount	na dotaz
	Obj Kowa LM8JC10M 8,5mm/1,8 Kowa lens 8,5 mm F 1,6-22 format 2/3" M.O.D. 0,1 m locating screw for aperture and focus C-mount	na dotaz
