 | Adapter Cable TX to VCXG VCXU | - Adapter to connect VCXG and VCXU cameras to existing TXG cabling
- Split cable M8/8-pin female connector to 1x M8/3-pin male connector (power) and 1x M8/4-pin male connector (I/Os)
- Protection class IP65/IP67
- Length 0.4 m
| na dotaz |
 | Adapter Cable TX to VCXG.I VLXT | - Adapter to connect VCXG.I or VLXT cameras to existing TXG cabling
- Split cable M12/12-pin male connector to 1x M8/3-pin female connector (power) and 1x M8/4-pin female connector (I/Os)
- Protection class IP65/IP67
- Length 0.4 m
| na dotaz |
 | Cable GigE M12X/RJ45, STP 10.0m, flex | - Gigabit Ethernet interface cable
- CAT6A
- M12/8-pin connector, X-coded (screw lock) to RJ45
- cable carrier compatible
- length 10,0 m
| 2 ks |
 | Cable GigE M12X/RJ45, STP 15.0m, flex | - Gigabit Ethernet interface cable
- CAT6A
- M12/8-pin connector, X-coded (screw lock) to RJ45
- cable carrier compatible
- length 15,0 m
| na dotaz |
 | Cable GigE M12X/RJ45, STP 2.0m, flex | - Gigabit Ethernet interface cable
- CAT6A
- M12/8-pin connector, X-coded (screw lock) to RJ45
- cable carrier compatible
- length 2,0 m
| na dotaz |
 | Cable GigE M12X/RJ45, STP 20.0m, flex | - Gigabit Ethernet interface cable
- CAT6A
- M12/8-pin connector, X-coded (screw lock) to RJ45
- cable carrier compatible
- length 20,0 m
| na dotaz |
 | Cable GigE M12X/RJ45, STP 30.0m, flex | - Gigabit Ethernet interface cable
- CAT6A
- M12/8-pin connector, X-coded (screw lock) to RJ45
- cable carrier compatible
- length 30,0 m
| na dotaz |
 | Cable GigE M12X/RJ45, STP 5.0m, flex | - Gigabit Ethernet interface cable
- CAT6A
- M12/8-pin connector, X-coded (screw lock) to RJ45
- cable carrier compatible
- length 5,0 m
| 1 ks |
 | Cable GigE M12X/RJ45, STP, 10.0m, flex, 90° | - Gigabit Ethernet interface cable
- CAT6A
- M12/8-pin connector, X-coded (screw lock), 90° angled to RJ45
- cable carrier compatible
- suitable for robotic applications (+/- 180°/ 0.5 m, min. 1.000.000 torsion cycles)
- length 10,0 m
| na dotaz |
 | Cable GigE M12X/RJ45, STP, 5.0m, flex, 90° | - Gigabit Ethernet interface cable
- CAT6A
- M12/8-pin connector, X-coded (screw lock), 90° angled to RJ45
- cable carrier compatible
- suitable for robotic applications (+/- 180°/ 0.5 m, min. 1.000.000 torsion cycles)
- length 5,0 m
| na dotaz |
 | Cable GigE RJ45/RJ45, 3,0 m | - Gigabit Ethernet interface cable
- CAT7
- length 3,0 m
| na dotaz |

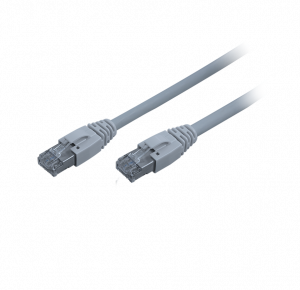

 | Cable GigE RJ45/RJ45, 6,0 m | - Gigabit Ethernet interface cable
- CAT7
- length 6,0 m
| na dotaz |
 | Cable GigE RJ45s/RJ45, 10,0 m, flex v2 | - Gigabit Ethernet interface cable
- CAT5e
- RJ45 (screw lock) to RJ45
- suitable for cable carrier and torsion applications
- length 10,0 m
| na dotaz |
 | Cable GigE RJ45s/RJ45, 20,0 m, flex v2 | - Gigabit Ethernet interface cable
- CAT5e
- RJ45 (screw lock) to RJ45
- suitable for cable carrier and torsion applications
- length 20,0 m
| na dotaz |
 | Cable GigE RJ45s/RJ45, 30,0 m, flex v2 | - Gigabit Ethernet interface cable
- CAT5e
- RJ45 (screw lock) to RJ45
- suitable for cable carrier and torsion applications
- length 30,0 m
| na dotaz |
 | Cable Mini CL SDR/SDR 5,0 m | - Camera Link® interface cable
- SDR to SDR connector
- length 5,0 m
- up to 80MHz pixel clock
| na dotaz |
 | Cable Power Adapter M12/DC Connector | - shielded adapter connection cable
- M12/12-pin male connector to confectioned DC connector
- length 2,0 m
- manufactured cable: 11201118 ESG 34JP0200GS
| 1 ks |
 | ESG 34JP0200GS | - shielded process interface cable
- M12/12-pin female connector to open wires
- cable carrier compatible
- suitable for robotic applications (+/- 180°/m, min. 500.000 torsion cycles)
- length 2,0 m
| na dotaz |
 | ESG 34JP0500GS | - shielded process interface cable
- M12/12-pin female connector to open wires
- cable carrier compatible
- suitable for robotic applications (+/- 180°/m, min. 500.000 torsion cycles)
- length 5,0 m
| 2 ks |
 | ESG 34JP1000GS | - shielded process interface cable
- M12/12-pin female connector to open wires
- cable carrier compatible
- suitable for robotic applications (+/- 180°/m, min. 500.000 torsion cycles)
- length 10,0 m
| na dotaz |
 | ESG 34JP2000GS | - shielded process interface cable
- M12/12-pin female connector to open wires
- cable carrier compatible
- suitable for robotic applications (+/- 180°/m, min. 500.000 torsion cycles)
- length 20,0 m
| na dotaz |
 | ESW 33JP0200GS | - shielded process interface cable
- 90° angled M12/12-pin female connector to open wires
- cable carrier compatible
- suitable for robotic applications (+/- 180°/m, min. 500.000 torsion cycles)
- length 2,0 m
| na dotaz |
 | ESW 33JP0500GS | - shielded process interface cable
- 90° angled M12/12-pin female connector to open wires
- cable carrier compatible
- suitable for robotic applications (+/- 180°/m, min. 500.000 torsion cycles)
- length 5,0 m
| na dotaz |
 | ESW 33JP1000GS | - shielded process interface cable
- 90° angled M12/12-pin female connector to open wires
- cable carrier compatible
- suitable for robotic applications (+/- 180°/m, min. 500.000 torsion cycles)
- length 10,0 m
| na dotaz |
 | ESW 33JP2000GS | - shielded process interface cable
- 90° angled M12/12-pin female connector to open wires
- cable carrier compatible
- suitable for robotic applications (+/- 180°/m, min. 500.000 torsion cycles)
- length 20,0 m
| na dotaz |
 | Fiber Optical Cable SFP+/SFP+, 10,0 m | - Fiber Optical cable for 10-GigE connection
- SFP+ module to SFP+ module (direct attached)
- length 10.0 m
- Juniper Coding
| na dotaz |
 | Fiber Optical Cable SFP+/SFP+, 10,0 m, flex | - Fiber Optical cable for 10-GigE connection
- SFP+ module to SFP+ module (direct attached)
- cable carrier compatible
- suitable for robotic applications
- length 10.0 m
- Juniper Coding
| na dotaz |
 | Fiber Optical Cable XSsh/LC, IP67, 20,0m | - Fiber Optical cable for 10-GigE connection, multi mode
- SFP+ module to SFP+ module (SFP+ modules are not included and have to be ordered separately)
- high robustness - crush resistance 2100 N/cm
- length 20.0m
- IP65/67 in combination with “Housing Cable Adapter SFP+/IP67”
| na dotaz |
 | Housing Cable Adapter SFP+/IP67 | - Housing adapter for VLXT.FO cameras
- use in combination with Harting fiber optical cable IP67 (11213911) to reach IP 65/67 protection class
| na dotaz |
 | Kabel GigE RJ45s/RJ45, 10,0 m, chain | - Gigabit Ethernet interface cable
- CAT6
- RJ45 (screw lock) to RJ45
- cable carrier compatible
- length 10,0 m
| na dotaz |
 | Kabel GigE RJ45s/RJ45, 15,0 m, chain | - Gigabit Ethernet interface cable
- CAT6
- RJ45 (screw lock) to RJ45
- cable carrier compatible
- length 15,0 m
| na dotaz |
 | Kabel GigE RJ45s/RJ45, 20,0 m, chain | - Gigabit Ethernet interface cable
- CAT6
- RJ45 (screw lock) to RJ45
- cable carrier compatible
- length 20,0 m
| na dotaz |
 | Kabel GigE RJ45s/RJ45, 5,0 m, chain | - Gigabit Ethernet interface cable
- CAT6
- RJ45 (screw lock) to RJ45
- cable carrier compatible
- length 5,0 m
| 2 ks |
 | KSG 34A/KSG45AR0200G/E | - M12, male;, D-coded, 4-poles PUR, 200 cm, shielded; RJ45, male, A-coded, 4-poles
- Suitable for robotics ± 180 °/m
- Head A: IP67; Head B: IP20
- Cable: good resistance against flames, oils
| na dotaz |
 | KSG 34A/KSG45AR0500G/E | - M12, male, D-coded, 4-poles; PUR, 500 cm, shielded; RJ45, male, 4-poles
- Suitable for robotics ± 180 °/m
- Head A: IP67; Head B: IP20
- Cable: good resistance against flames, oils
| 13 ks |
 | KSG 34A/KSG45AR1000G/E | - M12, male, D-coded, 4-poles; PUR, 1000 cm, shielded; RJ45, male, 4-poles
- Suitable for robotics ± 180 °/m
- Head A: IP67; Head B: IP20
- Cable: good resistance against flames, oils
| na dotaz |
 | KSG U2/KSGU6GC0300G | - USB 3.0 interface cable
- screw lock Micro-B connector to type A (optional screw lock) connector, both connectors with die-cast housing
- length 3.0 m
| na dotaz |
 | KSG U2/KSGU6GC0500G | - USB 3.0 interface cable
- screw lock Micro-B connector to type A (optional screw lock) connector, both connectors with die-cast housing
- length 5.0 m
| na dotaz |
 | MX Flexprint 200 mm | - flexprint to connect system and sensor print of cameras of the MX series
- length 20 cm
| na dotaz |
 | Shielded cable 3 wires, 10,0 m | - shielded power cable
- M8/3-pin female connector to open wires
- cable carrier compatible
- length 10,0 m
| na dotaz |
 | Shielded cable 4 wires, 10,0 m | - shielded process interface cable (trigger and flash)
- M8/4-pin female connector to open wires
- cable carrier compatible
- length 10,0 m
| na dotaz |
 | Shielded cable 4 wires, 5,0 m | - shielded process interface cable (trigger and flash)
- M8/4-pin female connector to open wires
- cable carrier compatible
- length 5,0 m
| na dotaz |
 | Z-ESG 32DH0500G | - shielded process interface and power cable for Baumer VisiLine® cameras
- M8/6-pin female connector to open wires
- cable carrier compatible
- length 5,0 m
| na dotaz |
 | Z-ESG 32DH1000G | - shielded process interface and power cable for Baumer VisiLine® cameras
- M8/6-pin female connector to open wires
- cable carrier compatible
- length 10,0 m
| na dotaz |
 | Z-ESG 32FP0500G | - shielded process interface cable
- M8/8-pin female connector to open wires
- cable carrier compatible
- length 5,0 m
| na dotaz |
 | Z-ESG JSFV0015 | - process interface cable for Baumer board level cameras
- JST crimp connector, female, 8-pin to open wires
- AWG32
- length 0,15 m
| na dotaz |
 | Z-ESW 31DH0500G | - shielded process interface and power cable for Baumer VisiLine® cameras
- 90° angled M8/6-pin female connector to open wires
- cable carrier compatible
- length 5,0 m
| na dotaz |
 | Z-ESW 31FH0500 | - process interface cable
- 90° angled M8/8-pin female connector to open wires
- length 5,0 m
- alternative article: CAM8.A8-11232605
| na dotaz |
 | Z-KSG 32FP0500G | - shielded process interface cable
- M8/8-pin male connector to open wires
- cable carrier compatible
- length 5,0 m
| na dotaz |
 | Z-KSG 32SH0500G | - shielded process interface cable for Baumer VisiLine® cameras
- M8/3-pin male connector to open wires
- cable carrier compatible
- length 5,0 m
| na dotaz |
