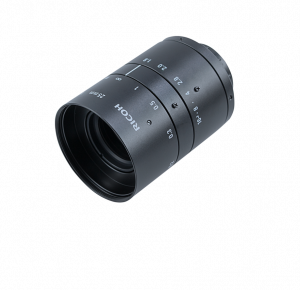

ZVL-FL-BC2518-9M

Ricoh Imaging lens
25 mm
F 1,8-16
format 1,1"
M.O.D. 0,1 m
locating screw for aperture and focus
C-mount

Objednací číslo: 11154325
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jakub Sedlmajer

Produktový specialista pro průmyslové čtečky a kamerové systémy
BAUMER | IOSS

+420 739 087 013

jakub.sedlmajer@ajptech.cz

Parametry

Ke stažení

Podpora

Podobné produkty

Parametry

Základní parametry

Výrobce:

Ricoh Imaging

Mechanické parametry

Závit objektivu:	C-mount
Rozměry:	42 mm × 57,5 mm
Max. vnější průměr:	42 mm (without knurled screws) 52 mm (with knurled screws)
Max. délka (bez závitu):	57.5 mm
Hmotnost:	≤ 149 g
Závit pro filtr:	M 40,5 × 0,5

Parametry optiky

Rozlišení objektivu:	12 MP
Ohnisková vzdálenost:	25 mm
Formát (max. velikost snímače):	1,1″
Clona:	F1,8-16
Typ clony:	Manual
Minimální pracovní vzdálenost:	0.1 m
