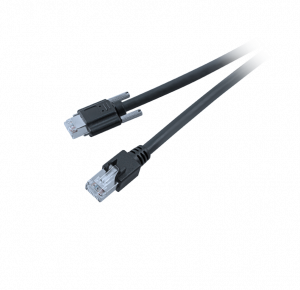

Kabel GigE RJ45s/RJ45, 10,0 m, chain

Gigabit Ethernet interface cable
CAT6
RJ45 (screw lock) to RJ45
cable carrier compatible
length 10,0 m

Objednací číslo: 11150302
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jakub Sedlmajer

Produktový specialista pro průmyslové čtečky a kamerové systémy
BAUMER | IOSS

+420 739 087 013

jakub.sedlmajer@ajptech.cz

Parametry

Diagramy

Ke stažení

Podpora

Podobné produkty

Parametry

Elektrické parametry

Počet pinů konektoru:	8
Konektory:	RJ45, screw lock TYPE090 (according to GigE Vision Mechanical Supplement) RJ45

Mechanické parametry

instalace s nejmenším poloměrem ohybu:	60 mm
Počet ohybových cyklů:	1000000
použitelné pro pohyblivé vedení:	yes
Délka kabelu [m]:	10 m
Materiál:	PVC, lead-free

Rozhraní

Datové rozhraní:

GigE

Podmínky prostředí

Ohnivzdornost:

UL20276 80°C / 30V
