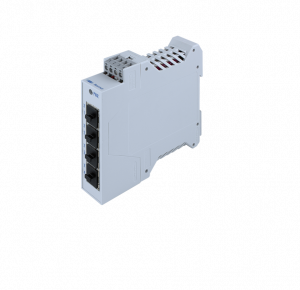

GigE Power Switch

GigE switch
PoE and Jumbo Frame support
4x 1000base-T
DIN rail mounting
operating voltage: 24-48 V; PoE requires 48 V

Objednací číslo: 11008795
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jakub Sedlmajer

Produktový specialista pro průmyslové čtečky a kamerové systémy
BAUMER | IOSS

+420 739 087 013

jakub.sedlmajer@ajptech.cz

Parametry

Ke stažení

Podpora

Podobné produkty

Parametry

Elektrické parametry

Napájení:	48 VDC
Spotřeba energie:	approx. 6 W
Třída PoE:	class 0 (at 48 V PoE)
napájení:	up to 15,4 Watt
Ochranné funkce:	protection against polarity reversal disconnection on overload / overtemperature

Funkce

Podporovaná velikost paketů:

Jumbo Frames up to 10 kByte

Mechanické parametry

Montážní:	DIN Rail
Rozměry:	22,5 mm × 99 mm × 113,5 mm
Materiál pouzdra:	plastic
Hmotnost:	≤ 148 g

Rozhraní

Datové rozhraní:	GigE
Ethernet - typ:	1000base-T, 100base-TX, 10base-T
Počet portů:	4
Porty:	4x RJ45
Standard:	IEEE802.3
Přenosová rychlost:	10 / 100 / 1000 MBit/sec
Vzdálenost:	max. 100 m

Podmínky prostředí

Pracovní teplota:	+5 - +40 °C
Prohlášení o shodě:	CE FCC RoHS
Skladovací teplota:	-10 - -70 °C
Vlhkost:	10 - 90 % (non-condensing)
Třída krytí:	IP 20

Foto	Produkt (3) / Popis	Skladová dostupnost
	GigE Power Switch GigE switch PoE and Jumbo Frame support 4x 1000base-T DIN rail mounting operating voltage: 24-48 V; PoE requires 48 V	na dotaz
	ZVN-Transceiver SPF+ FS Multi Mode 10 GigE SFP+ Transceiver SFP+ module type: Multi Mode Fiber SFP-10GSR-85 max. cable distance 300 m via OM3 multi mode fiber wavelength 850 nm	na dotaz
	ZVN-Transceiver SPF+ FS Single Mode 10 GigE SFP+ Transceiver SFP+ module type: Single Mode Fiber SFP-10GLR-31 max. cable distance 10 km via single mode fiber wavelength 1310 nm	na dotaz
