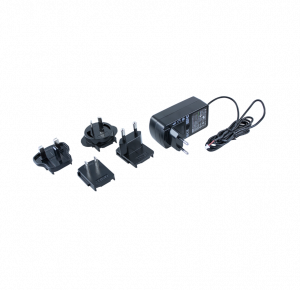

Power Supply 24V/1,0A international MXG

Power Supply 24V/1,0A international MXG
  • universal power supply 24V/1,0A international with adapters for EU, US, UK, AU, KR
  • for MXG
Objednací číslo: 11102189
Výrobce: Baumer Electric AG
Dostupnost: na dotaz



Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jakub Sedlmajer
Ing. Jakub Sedlmajer
Produktový specialista pro průmyslové čtečky a kamerové systémy
BAUMER | IOSS
Ing. Jakub Sedlmajer - QR Kontakt
+420 739 087 013
jakub.sedlmajer@ajptech.cz
Parametry
Ke stažení
Podpora
Podobné produkty

Parametry

Elektrické parametry

Vstup:

adapter: EU, US, UK, AU, KR (changeable)



Vstupní napětí: 90 VAC .. 264 VAC
Frekvence sítě:

47 Hz .. 63 Hz



Výstup:

JST-3pin Plug (SHR-03V-S-B)



Pracovní napětí: 24 VDC
Proud: 1 A
tolerance: 5 %
Zvlnění:

240 mV p-p



Třída účinnosti:

Level V



max. výkon: 24 W

Mechanické parametry

Rozměry: 93,5 × 46,0 × 36,2 mm
Délka kabelu [m]: 1.6 m
Hmotnost: ≤ 170 g
Materiál: plastic

Podmínky prostředí

Pracovní teplota: 0 - +40 °C
Skladovací teplota: -20 - +85 °C
Vlhkost: 8 - 90 % (non-condensing)
