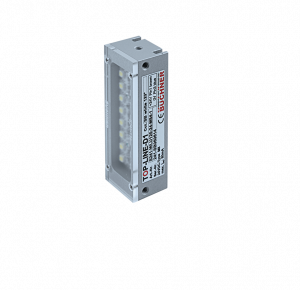

ZVI-TOPLINED1_24VDC_ROT617NM_30°

flashable LED bar light
red (617 nm)
radiation angle 30°
24 V
voltage-driven (equipped with integrated pre-resistor)
M8/4-pin connector (cable has to be ordered separately)
dimensions: 78 mm × 25 mm × 23 mm housing

Objednací číslo: 11130187
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jakub Sedlmajer

Produktový specialista pro průmyslové čtečky a kamerové systémy
BAUMER | IOSS

+420 739 087 013

jakub.sedlmajer@ajptech.cz

Parametry

Nákresy

Diagramy

Ke stažení

Podpora

Podobné produkty

Parametry

Základní parametry

Výrobce:

Büchner Lichtsysteme GmbH

Vlastnosti osvětlení

Barva:	Red / 617 nm
Druh osvětlení:	direct
Mód osvětlení:	flashable

Elektrické parametry

Konektory:	M8/4-pin male connector
Kontrola iluminace:	voltage-driven (equipped with integrated pre-resistor)
Proud:	0.2 A
Proud při zábleskovém režimu:	≤ 0.2 A
Napětí při zábleskovém režimu:	≤ 48 V DC
Střída:	0-10%
Max. délka trvání záblesku:	1 ms

Mechanické parametry

Typ osvětlení:	bar light
Rozměry:	78 mm × 25 mm × 23 mm
Materiál krycího skla:	acrylic
Hmotnost:	≤ 80 g
Materiál:	aluminum (anodized)

Podmínky prostředí

Pracovní teplota:

max. 50 °C
