 | FFPR-i100-W | - flashable LED dark field illumination
- white
- diffuse
- 24 V
- voltage-driven (equipped with integrated pre-resistor)
- cable length: 0,3 m
- diameter: 100 mm
| 1 ks |
 | FLDL-i150x15-W | - flashable LED bar light
- white
- diffuse
- 24 V
- voltage-driven (equipped with integrated pre-resistor)
- cable length: 1 m
- dimensions: 158 mm × 17 mm × 20 mm housing
| na dotaz |
 | FLDL-TP-Si200x100-W | - flashable LED back light
- white
- diffuse
- 24 V
- voltage-driven (equipped with integrated pre-resistor)
- cable length: 1 m
- dimensions: 116 mm × 228 mm × 23,5 mm housing
| na dotaz |
 | FLDL-TP-Si36-W | - flashable LED back light
- white
- diffuse
- 24 V
- voltage-driven (equipped with integrated pre-resistor)
- cable length: 1 m
- dimensions: 47 mm × 47 mm × 15 mm housing
| na dotaz |
 | FLDL-TP-Si85x77-W | - flashable LED back light
- white
- diffuse
- 24 V
- voltage-driven (equipped with integrated pre-resistor)
- cable length: 1 m
- dimensions: 95 mm × 95 mm × 15 mm housing
| na dotaz |
 | FLDM-i100-W | - flashable LED dome light
- white
- 24 V
- voltage-driven (equipped with integrated pre-resistor)
- cable length: 0,3 m
- diameter: 130 mm
| 1 ks |
 | FLDR-i90B-IR24 | - flashable LED ring light
- IR 875 nm
- 24 V
- voltage-driven (equipped with integrated pre-resistor)
- cable length: 0,3 m
- diameter: 94 mm
| na dotaz |
 | FLDR-i90B-SR24 | - flashable LED ring light
- red (626 nm)
- 24 V
- voltage-driven (equipped with integrated pre-resistor)
- cable length: 0,3 m
- diameter: 94 mm
| na dotaz |
 | FLDR-i90B-W | - flashable LED ring light
- white
- 24 V
- voltage-driven (equipped with integrated pre-resistor)
- cable length: 0,3 m
- diameter: 94 mm
| na dotaz |
 | FLFL-Si60-IR24 | - flashable LED back light
- NIR
- diffuse
- 24 V
- voltage-driven (equipped with integrated pre-resistor)
- cable length: 1 m
- dimensions: 94 mm × 94 mm × 10 mm housing
| 1 ks |
 | Multi headed cable Type A4 | - Split cable M12/12-pin female connector to 1x M8/3-pin male connector for power the camera, 1x M8/4-pin male connector to power the I/Os and illuminations and 4x M8/4-pin female connectors for four illuminations
- Separate powering of camera and illumination. Double version of Output 1.
- Protection class IP65/IP67
- Length 40 cm (M12/12-pin cable 20 cm, M8 cables 20 cm)
| na dotaz |
 | Multi headed cable Type B1 | - Split cable M12/12-pin female connector to 1x M8/3-pin male connector (to power the camera and I/Os, enable hardware trigger via input) and 1x M8/3-pin female connector for one illumination
- The I/O voltage is directly distributed to the illuminations.
- Protection class IP65/IP67
- Length 100 cm (M12/12-pin cable 80 cm, M8 cables 20 cm)
| na dotaz |
 | Multi headed cable Type B2 | - Split cable M12/12-pin female connector to 1x M8/3-pin male connector (to power the camera and I/Os, enable hardware trigger via input) and 2x M8/3-pin female connectors for two illuminations
- The I/O voltage is directly distributed to the illuminations.
- Protection class IP65/IP67
- Length 100 cm (M12/12-pin cable 80 cm, M8 cables 20 cm)
| na dotaz |
 | Multi headed cable Type B4 | - Split cable M12/12-pin female connector to 1x M8/3-pin male connector (to power the camera and I/Os, enable hardware trigger via input) and 4x M8/3-pin female connectors for four illuminations
- The I/O voltage is directly distributed to the illuminations.
- Protection class IP65/IP67
- Length 100 cm (M12/12-pin cable 20 cm, M8 cables 80 cm)
| na dotaz |
 | Multi headed cable Type C4 | - Split cable M12/12-pin female connector to 1x M8/3-pin male connector (to power the camera, I/Os and illuminations; enable hardware trigger via input) and 4x M8/3-pin female connectors for four illuminations
- The I/O voltage is distributed to the illuminations through the camera as a normal trigger signal using the cameras power output.
- Protection class IP65/IP67
- Length: 40 cm (M12/12-pin cable 20 cm, M8 cables 20 cm)
| na dotaz |
 | Multi headed cable Type E1 | - Split cable M12/12-pin female connector to 1x M8/3-pin male connector (to power the camera and I/Os, enable hardware trigger via input) and 1x M8/4-pin female connector for one illumination
- The I/O voltage is directly distributed to the illuminations.
- Protection class IP65/IP67
- Length 100 cm (M12/12-pin cable 80 cm, M8 cables 20 cm)
| na dotaz |
 | Multi headed cable Type E2 | - Split cable M12/12-pin female connector to 1x M8/3-pin male connector (to power the camera and I/Os, enable hardware trigger via input) and 2x M8/4-pin female connectors for two illuminations
- The I/O voltage is directly distributed to the illuminations.
- Protection class IP65/IP67
- Length 100 cm (M12/12-pin cable 80 cm, M8 cables 20 cm)
| na dotaz |
 | Multi headed cable Type E4 | - Split cable M12/12-pin female connector to 1x M8/3-pin male connector (to power the camera and I/Os, enable hardware trigger via input) and 4x M8/4-pin female connectors for four illuminations
- The I/O voltage is directly distributed to the illuminations.
- Protection class IP65/IP67
- Length 100 cm (M12/12-pin cable 20 cm, M8 cables 80 cm)
| na dotaz |
 | VB Fix Kit FLDR-i90B large | - set of fixation brackets for LED ring light FLDR-i90B and VeriSens® XC series
- length: 93 mm
| na dotaz |
 | VB Fix Kit FLDR-i90B small | - set of fixation brackets for LED ring light FLDR-i90B and VeriSens® XC series
- length: 57 mm
| na dotaz |
 | VB Fix Kit RONDO-LX large | - set of fixation brackets for LED ring light RONDO-LX and VeriSens® XC series
- length: 93 mm
| na dotaz |
 | VB Fix Kit RONDO-LX small | - set of fixation brackets for LED ring light RONDO-LX and VeriSens® XC series
- length: 57 mm
| na dotaz |
 | ZVI-ARCUSM_24VDC_WEIß_120° | - flashable LED dark field illumination
- white
- radiation angle 120°
- 24 V
- voltage-driven (equipped with integrated pre-resistor)
- M8/4-pin connector (cable has to be ordered separately)
- diameter: 120 mm
| 1 ks |
 | ZVI-CONNECT_CameraExtension_CX.I_Type1 | - mounting adapter for illuminations Rondo LX and HELIOS-130 to VCXG.I cameras
- enables use of M62 tube system
| na dotaz |
 | ZVI-CONNECT_CameraExtension_VLXT.I_Type1 | - mounting adapter for illuminations Rondo LX and HELIOS-130 to VLXT.I cameras
- enables use of M62 tube system
| na dotaz |
 | ZVI-Fix_Kit_Adapter_Spot5W | - mounting adapter to mount LUMIMAX Spot5W illuminations to ZVI-VB_Fix_Kit_Industrial_Light (11076264)
| 1 ks |
 | ZVI-FLDL-i86x15-W | - flashable LED bar light
- white
- diffuse
- 24 V
- voltage-driven (equipped with integrated pre-resistor)
- cable length: 0,3 m
- dimensions: 18 mm × 95 mm × 20 mm housing
| na dotaz |
 | ZVI-FLDR_i90B_DP_Diffuser A1_421 | - Diffusor with drilling holes and screws for Falcon illumination FLDR-i90B
| na dotaz |
 | ZVI-HELIOS-130_IP65_weiß_80°_24VDC_M8 | - flashable LED ring light
- white
- radiation angle 80°
- 24 V
- voltage-driven (equipped with integrated pre-resistor)
- M8/4-pin connector (cable has to be ordered separately)
- diameter: 134 mm
- IP65 protection
| na dotaz |
 | ZVI-HILIGHT120_24VDC_WEIß | - flashable LED back light
- white
- diffuse
- radiation angle 120°
- diameter: 94 mm
- 24 V
- voltage-driven (equipped with integrated pre-resistor)
- M8/4-pin connector (cable has to be ordered separately)
- dimensions: 127 mm × 127 mm × 20 mm housing
| 1 ks |
 | ZVI-HILIGHT80_24VDC_WEIß | - flashable LED back light
- white
- diffuse
- radiation angle 80°
- diameter: 94 mm
- 24 V
- voltage-driven (equipped with integrated pre-resistor)
- M8/4-pin connector
- dimensions: 87 mm × 87 mm × 20 mm housing
| na dotaz |
 | ZVI-LED Spot5WFL-B/SPS-220 | - LED spot light
- blue
- 19… 30 V
- cable length: 0,15 m
- diameter: 34 mm
- adjustable glass optics for spot or broad light
- integrated flash controller and potentiometer (brightness and exposure time)
- direct connection to M12/12-pin connector thanks to T-adapter cable (ZVI-LUMIMAX T1-Adapter cable illumination (11175008))
- maximum exposure time 220 µs (maximum frequency 35 Hz)
| na dotaz |
 | ZVI-LED Spot5WFL-IR850/SPS-220 | - LED spot light
- infrared
- 19… 30 V
- cable length: 0,15 m
- diameter: 34 mm
- adjustable glass optics for spot or broad light
- integrated flash controller and potentiometer (brightness and exposure time)
- direct connection to M12/12-pin connector thanks to T-adapter cable (ZVI-LUMIMAX T1-Adapter cable illumination (11175008))
- maximum exposure time 220 µs (maximum frequency 35 Hz)
| na dotaz |

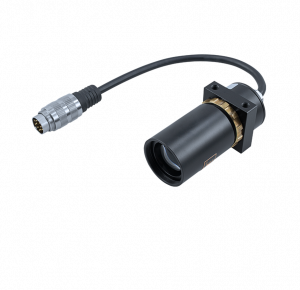

 | ZVI-LED Spot5WFL-W/SPS-220 | - LED spot light
- white
- 19… 30 V
- cable length: 0,15 m
- diameter: 34 mm
- adjustable glass optics for spot or broad light
- integrated flash controller and potentiometer (brightness and exposure time)
- direct connection to M12/12-pin connector thanks to T-adapter cable (ZVI-LUMIMAX T1-adapter cable illumination (11175008))
- maximum exposure time 220 µs (maximum frequency 35 Hz)
| 1 ks |
 | ZVI-LOGO2_24VDC_ROT617NM_30° | - flashable LED bar light
- red (617 nm)
- radiation angle 30°
- 24 V
- voltage-driven (equipped with integrated pre-resistor)
- M8/4-pin connector (cable has to be ordered separately)
- dimensions: 74 mm × 15 mm × 17 mm housing
| na dotaz |
 | ZVI-LUMIMAX T1 AdapterCable Illumination | - adapter cable to connect LUMIMAX Spot5W illuminations to M12/12-pin connector
- suitable for VeriSens, VCXG.I and VLXT
| 1 ks |
 | ZVI-Polarizer_FLDR_i90B | - Polarization filter for Falcon illumination FLDR-i90B
| na dotaz |
 | ZVI-Polarizer_holder_FLDR_i90B | - Mounting adapter for polarization filter for Falcon FLDR-i90B illuminations: ZVI-Polarizer_FLDR-i90B (11167410)
- incl. screws
| na dotaz |
 | ZVI-RONDOLX_24VDC_IR850NM_120° | - flashable LED ring light
- infrared (850 nm)
- radiation angle 120°
- 24 V
- voltage-driven (equipped with integrated pre-resistor)
- M8/4-pin connector (cable has to be ordered separately)
- diameter: 101 mm
| na dotaz |
 | ZVI-RONDOLX_24VDC_IR850NM_50° | - flashable LED ring light
- infrared (850 nm)
- radiation angle 50°
- 24 V
- voltage-driven (equipped with integrated pre-resistor)
- M8/4-pin connector (cable has to be ordered separately)
- diameter: 101 mm
| na dotaz |
 | ZVI-RONDOLX_24VDC_WEIß_120° | - flashable LED ring light
- white
- radiation angle 120°
- 24 V
- voltage-driven (equipped with integrated pre-resistor)
- M8/4-pin connector (cable has to be ordered separately)
- diameter: 101 mm
| na dotaz |
 | ZVI-TOPLIGHT80_24VDC_rot617nm_30° | - flashable LED incident light
- red (617 nm)
- radiation angle 30°
- 24 V
- voltage-driven (equipped with integrated pre-resistor)
- M8/4-pin connector (cable has to be ordered separately)
- dimensions: 87 mm × 87 mm × 20 mm housing
| na dotaz |
 | ZVI-TOPLINED1_24VDC_ROT617NM_30° | - flashable LED bar light
- red (617 nm)
- radiation angle 30°
- 24 V
- voltage-driven (equipped with integrated pre-resistor)
- M8/4-pin connector (cable has to be ordered separately)
- dimensions: 78 mm × 25 mm × 23 mm housing
| na dotaz |
 | ZVI-TOPLINED1_24VDC_SHWEIß_120° | - flashable LED bar light
- SH white
- radiation angle 120°
- 24 V
- voltage-driven (equipped with integrated pre-resistor)
- M8/4-pin connector (cable has to be ordered separately)
- dimensions: 78 mm × 25 mm × 23 mm housing
| na dotaz |
 | ZVI-TOPLINED1_24VDC_WEIß_120° | - flashable LED bar light
- white
- radiation angle 120°
- 24 V
- voltage-driven (equipped with integrated pre-resistor)
- M8/4-pin connector (cable has to be ordered separately)
- dimensions: 78 mm × 25 mm × 23 mm housing
| 2 ks |
 | ZVI-VB_Fix_Kit_Industrial_Light | - VeriSens® illumination fix kit
- Scales for the documentation of the application setup, also for its replication
- Use in combination with illumination adapter (for LUMIMAX Spot5W: ZVI-Fix_Kit_Adapter_Spot5W (11175009))
- Length: 130 mm
| 2 ks |
