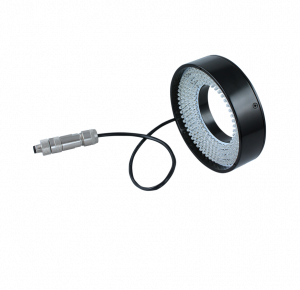

FLDR-i90B-IR24

flashable LED ring light
IR 875 nm
24 V
voltage-driven (equipped with integrated pre-resistor)
cable length: 0,3 m
diameter: 94 mm

Objednací číslo: 11090900
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jakub Sedlmajer

Produktový specialista pro průmyslové čtečky a kamerové systémy
BAUMER | IOSS

+420 739 087 013

jakub.sedlmajer@ajptech.cz

Parametry

Nákresy

Diagramy

Ke stažení

Podpora

Podobné produkty

Parametry

Základní parametry

Výrobce:

Falcon Illumination MV GmbH & Co.KG

Vlastnosti osvětlení

Barva:	Infrared
Druh osvětlení:	direct
Mód osvětlení:	flashable

Elektrické parametry

Konektory:	M8/4-pin male connector
Kontrola iluminace:	voltage-driven (equipped with integrated pre-resistor)
Proud:	0.35 A
Proud při zábleskovém režimu:	≤ 0.88 A
Napětí při zábleskovém režimu:	≤ 48 V DC
Střída:	0-10%
Max. délka trvání záblesku:	10 ms

Mechanické parametry

Typ osvětlení:	ring light
Rozměry:	Ø 93,5 mm
Výška:	24.6 mm
Rozměry osvětlené oblasti:	Ø external 87,5 mm Ø internal 50 mm
Délka kabelu [m]:	0.3 m
Hmotnost:	≤ 200 g
Materiál:	aluminum

Podmínky prostředí

Pracovní teplota:	0 - +35 °C
Vlhkost:	20% - 85%
Třída krytí:	IP 30
