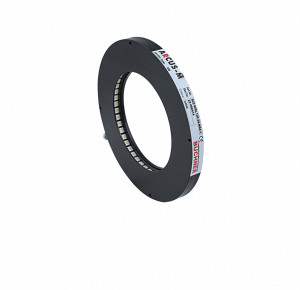

ZVI-ARCUSM_24VDC_WEIß_120°

flashable LED dark field illumination
white
radiation angle 120°
24 V
voltage-driven (equipped with integrated pre-resistor)
M8/4-pin connector (cable has to be ordered separately)
diameter: 120 mm

Objednací číslo: 11130183
Výrobce: Baumer Electric AG

Dostupnost: 1 ks (zobrazit skladovou dostupnost)

Můžete mít ihned. Možnost osobního odběru v pracovní dny od 8:00 do 16:00 na adrese firmy po předchozí telefonické dohodě.

Zboží odesíláme okamžitě. Zboží, které závazně objednáte v pracovních dnech do 11:00 hodin, vám odešleme ještě tentýž den.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jakub Sedlmajer

Produktový specialista pro průmyslové čtečky a kamerové systémy
BAUMER | IOSS

+420 739 087 013

jakub.sedlmajer@ajptech.cz

Parametry

Nákresy

Diagramy

Ke stažení

Podpora

Skladová dostupnost

Podobné produkty

Parametry

Základní parametry

Výrobce:

Büchner Lichtsysteme GmbH

Vlastnosti osvětlení

Barva:	white
Druh osvětlení:	direct
Mód osvětlení:	flashable

Elektrické parametry

Konektory:	M8/4-pin male connector
Kontrola iluminace:	voltage-driven (equipped with integrated pre-resistor)
Proud:	0.3 A
Proud při zábleskovém režimu:	≤ 0.6 A
Napětí při zábleskovém režimu:	≤ 48 V DC
Střída:	0-10%
Max. délka trvání záblesku:	1 ms

Mechanické parametry

Typ osvětlení:	dark field illumination
Rozměry:	Ø 120 mm
Rozměry osvětlené oblasti:	Ø external 74 mm Ø internal 68 mm
Materiál krycího skla:	acrylic
Hmotnost:	≤ 100 g
Materiál:	aluminum (anodized, black)

Podmínky prostředí

Pracovní teplota:

max. 50 °C

Název produktu	Počet na skladě
ZVI-ARCUSM_24VDC_weiß_120°	1 ks
