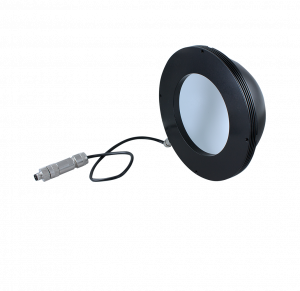

FLDM-i100-W

blikající LED kopulovité světlo
bílá
24 V
napěťově řízený (vybavený integrovaným předřadným rezistorem)
délka kabelu: 0,3 m
rozměr: 130 mm

Objednací číslo: 11086541
Výrobce: Baumer Electric AG

Dostupnost: 1 ks (zobrazit skladovou dostupnost)

Můžete mít ihned. Možnost osobního odběru v pracovní dny od 8:00 do 16:00 na adrese firmy po předchozí telefonické dohodě.

Zboží odesíláme okamžitě. Zboží, které závazně objednáte v pracovních dnech do 11:00 hodin, vám odešleme ještě tentýž den.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jakub Sedlmajer

Produktový specialista pro průmyslové čtečky a kamerové systémy
BAUMER | IOSS

+420 739 087 013

jakub.sedlmajer@ajptech.cz

Parametry

Nákresy

Diagramy

Ke stažení

Podpora

Skladová dostupnost

Podobné produkty

Parametry

Základní parametry

Výrobce:

Falcon Illumination MV GmbH & Co.KG

Vlastnosti osvětlení

Barva:	white
Mód osvětlení:	flashable

Elektrické parametry

Konektory:	M8/4-pin male connector
Kontrola iluminace:	voltage-driven (equipped with integrated pre-resistor)
Proud:	0.2 A
Proud při zábleskovém režimu:	≤ 1.25 A
Napětí při zábleskovém režimu:	≤ 48 V DC
Střída:	0-10%
Max. délka trvání záblesku:	10 ms

Mechanické parametry

Typ osvětlení:	dome light
Rozměry:	Ø 130 mm
Výška:	61 mm
Rozměry osvětlené oblasti:	Ø external 80 mm Ø internal 25 mm
Délka kabelu [m]:	0.3 m
Hmotnost:	≤ 230 g
Materiál:	aluminum

Podmínky prostředí

Pracovní teplota:	0 - +35 °C
Vlhkost:	20% - 85%
Třída krytí:	IP 30

Název produktu	Počet na skladě
FLDM-i100-W	1 ks
