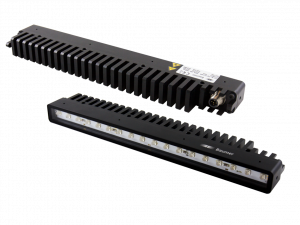

Baumer ZVI-BL-310/27-1650

Flashable SWIR LED bar light
Wavelength 1650 nm
Radiation angle 45°
Integrated LED controller with 4 operating modes
IP54

Objednací číslo: 11729039
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jakub Sedlmajer

Produktový specialista pro průmyslové čtečky a kamerové systémy
BAUMER | IOSS

+420 739 087 013

jakub.sedlmajer@ajptech.cz

Parametry

Nákresy

Diagramy

Ke stažení

Podpora

Podobné produkty

Parametry

Základní parametry

Výrobce:

Baumer

Vlastnosti osvětlení

Color / Peak wavelength:	SWIR / 1650 nm
Beam angle:	45°
Operating modes:	steady light steady light with brightness control flashed light with PNP sourcing flashed light with NPN sourcing
Radiation intensity:	1.6 W/sr ±7 %
Recommended illumination distance:	50 mm ... 400 mm

Elektrické parametry

Konektory:	M12/5-pin male connector
Pracovní napětí:	24 VDC
Max. délka trvání záblesku:	20 ms
Spotřeba energie:	approx. 18 W (steady light) approx. 34 W (flashed light)

Mechanické parametry

Typ osvětlení:	bar light
Rozměry:	27 mm x 310 mm x 53 mm
Rozměry osvětlené oblasti:	17 mm x 300 mm
Materiál krycího skla:	PMMA (acrylic glass)
Materiál pouzdra:	aluminum (anodized, black)
Hmotnost:	≤ 650 g

Podmínky prostředí

Pracovní teplota:	0 - +30 °C 0 - +45 °C with thermal connection
Prohlášení o shodě:	CE RoHS
Vlhkost:	30 - 70 %
Třída krytí:	IP 54
