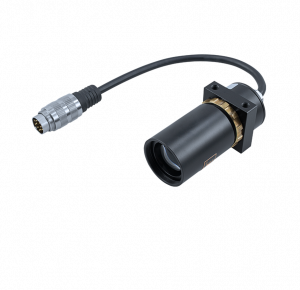

ZVI-LED Spot5WFL-IR850/SPS-220

LED spot light
infrared
19… 30 V
cable length: 0,15 m
diameter: 34 mm
adjustable glass optics for spot or broad light
integrated flash controller and potentiometer (brightness and exposure time)
direct connection to M12/12-pin connector thanks to T-adapter cable (ZVI-LUMIMAX T1-Adapter cable illumination (11175008))
maximum exposure time 220 µs (maximum frequency 35 Hz)

Objednací číslo: 11175035
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jakub Sedlmajer

Produktový specialista pro průmyslové čtečky a kamerové systémy
BAUMER | IOSS

+420 739 087 013

jakub.sedlmajer@ajptech.cz

Parametry

Nákresy

Diagramy

Ke stažení

Podpora

Podobné produkty

Parametry

Základní parametry

Výrobce:

iiM AG

Vlastnosti osvětlení

Barva:	infrared
Druh osvětlení:	direct
Mód osvětlení:	flashable

Elektrické parametry

Konektory:	M16/12-pin male connector
Kontrola iluminace:	integrated illumination control
Rozsah napájecího napětí +Vs:	19 - 30 VDC
Proud při zábleskovém režimu:	≤ 0.2 A
Max. délka trvání záblesku:	0.22 ms

Mechanické parametry

Typ osvětlení:	spot light
Max. vnější průměr:	36 mm
Výška:	75 mm
Max. délka (bez závitu):	92 mm
Rozměry osvětlené oblasti:	Ø 30 mm
Délka kabelu [m]:	0.15 m
Hmotnost:	≤ 150 g
Závit pro filtr:	M30,5 x 0,5
Materiál:	aluminum

Podmínky prostředí

Pracovní teplota:	5 ... +45 °C
Třída krytí:	IP 40
