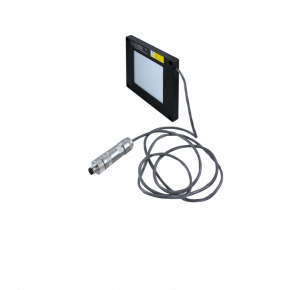

FLFL-Si60-IR24

flashable LED back light
NIR
diffuse
24 V
voltage-driven (equipped with integrated pre-resistor)
cable length: 1 m
dimensions: 94 mm × 94 mm × 10 mm housing

Objednací číslo: 11095910
Výrobce: Baumer Electric AG

Dostupnost: 1 ks (zobrazit skladovou dostupnost)

Můžete mít ihned. Možnost osobního odběru v pracovní dny od 8:00 do 16:00 na adrese firmy po předchozí telefonické dohodě.

Zboží odesíláme okamžitě. Zboží, které závazně objednáte v pracovních dnech do 11:00 hodin, vám odešleme ještě tentýž den.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jakub Sedlmajer

Produktový specialista pro průmyslové čtečky a kamerové systémy
BAUMER | IOSS

+420 739 087 013

jakub.sedlmajer@ajptech.cz

Parametry

Nákresy

Diagramy

Ke stažení

Podpora

Skladová dostupnost

Podobné produkty

Parametry

Základní parametry

Výrobce:

Falcon Illumination MV GmbH & Co.KG

Vlastnosti osvětlení

Barva:	Infrared
Druh osvětlení:	diffuse
Mód osvětlení:	flashable

Elektrické parametry

Konektory:	M8/4-pin male connector
Kontrola iluminace:	voltage-driven (equipped with integrated pre-resistor)
Proud:	0.1 A
Proud při zábleskovém režimu:	≤ 0.24 A
Napětí při zábleskovém režimu:	≤ 48 V DC
Střída:	0-10%
Max. délka trvání záblesku:	10 ms

Mechanické parametry

Typ osvětlení:	back light
Rozměry:	94 mm × 94 mm
Výška:	10 mm
Rozměry osvětlené oblasti:	60 x 60 mm
Materiál krycího skla:	acrylic
Délka kabelu [m]:	1 m
Hmotnost:	≤ 160 g
Materiál:	aluminum

Podmínky prostředí

Pracovní teplota:	0 - +35 °C
Vlhkost:	20% - 85%
Třída krytí:	IP 50

Název produktu	Počet na skladě
FLFL-Si60-IR24	1 ks
