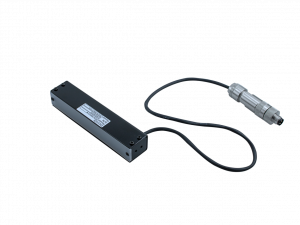

ZVI-FLDL-i86x15-W

flashable LED bar light
white
diffuse
24 V
voltage-driven (equipped with integrated pre-resistor)
cable length: 0,3 m
dimensions: 18 mm × 95 mm × 20 mm housing

Objednací číslo: 11197768
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jakub Sedlmajer

Produktový specialista pro průmyslové čtečky a kamerové systémy
BAUMER | IOSS

+420 739 087 013

jakub.sedlmajer@ajptech.cz

Parametry

Nákresy

Diagramy

Ke stažení

Podpora

Podobné produkty

Parametry

Základní parametry

Výrobce:

Falcon Illumination MV GmbH & Co.KG

Vlastnosti osvětlení

Barva:	White
Druh osvětlení:	diffuse
Mód osvětlení:	flashable

Elektrické parametry

Konektory:	M8/4-pin male connector
Kontrola iluminace:	voltage-driven (equipped with integrated pre-resistor)
Proud:	0.18 A
Proud při zábleskovém režimu:	≤ 0.45 A
Napětí při zábleskovém režimu:	≤ 48 V DC
Střída:	0-10%
Max. délka trvání záblesku:	10 ms

Mechanické parametry

Typ osvětlení:	bar light
Rozměry:	95 mm × 18 mm
Výška:	20 mm
Rozměry osvětlené oblasti:	86 mm × 15 mm
Materiál krycího skla:	acrylic
Délka kabelu [m]:	0.3 m
Hmotnost:	≤ 70 g
Materiál:	aluminum

Podmínky prostředí

Pracovní teplota:	0 - +35 °C
Vlhkost:	20% - 85%
Třída krytí:	IP 30
