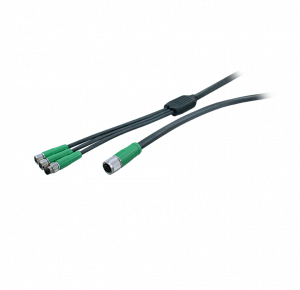

Multi headed cable Type B2

Split cable M12/12-pin female connector to 1x M8/3-pin male connector (to power the camera and I/Os, enable hardware trigger via input) and 2x M8/3-pin female connectors for two illuminations
The I/O voltage is directly distributed to the illuminations.
Protection class IP65/IP67
Length 100 cm (M12/12-pin cable 80 cm, M8 cables 20 cm)

Objednací číslo: 11214471
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jakub Sedlmajer

Produktový specialista pro průmyslové čtečky a kamerové systémy
BAUMER | IOSS

+420 739 087 013

jakub.sedlmajer@ajptech.cz

Parametry

Nákresy

Diagramy

Ke stažení

Podpora

Podobné produkty

Parametry

Elektrické parametry

Počet pinů konektoru:	12
Konektory:	M12/12-pin female connector M8/3-pin male connector 2x M8/3-pin female connector

Mechanické parametry

Montážní:	hole spacing 49 mm
Rozměry:	distribution part 50 mm x 26 mm x 13 mm
nejmenší poloměr ohybu:	85 mm (cable with M12/12-pin female connector) 44 mm (cable with M8/3-pin male connector) 44 mm (cable with M8/3-pin female connector)
instalace s nejmenším poloměrem ohybu:	42.5 mm (cable with M12/12-pin female connector) 22 mm (cable with M8/3-pin male connector) 22 mm (cable with M8/3-pin female connector)
Počet ohybových cyklů:	M12: 2000000 M8: 10000000
použitelné pro pohyblivé vedení:	yes
Délka kabelu [m]:	1 m
Průřez vodiče:	12 × 0.14mm² 3 × 0.25mm²
Materiál:	TPU PUR, halogen-free

Podmínky prostředí

Pracovní teplota (pohyblivá instalace):	-5 - +75 °C
Pracovní teplota:	-25 - +75 °C
Třída krytí:	IP 65/67 (mounted)
