FUE 200C2003 - Plastic fiber optic cable

Smooth sensing head

Objednací číslo: 10123465
Výrobce: Baumer Electric AG

Dostupnost: 3 ks (zobrazit skladovou dostupnost)

Můžete mít ihned. Možnost osobního odběru v pracovní dny od 8:00 do 16:00 na adrese firmy po předchozí telefonické dohodě.

Zboží odesíláme okamžitě. Zboží, které závazně objednáte v pracovních dnech do 11:00 hodin, vám odešleme ještě tentýž den.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák

Technik specialista pro průmyslové snímače
BAUMER

+420 733 533 400

jaroslav.dancak@ajptech.cz

Parametry

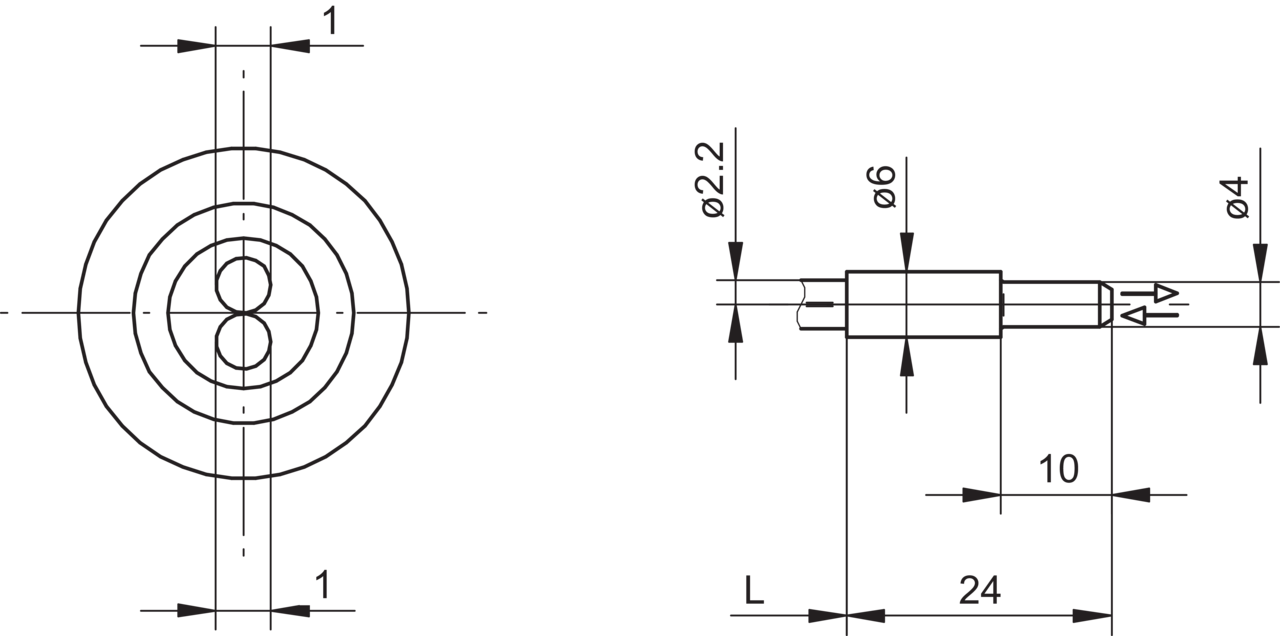

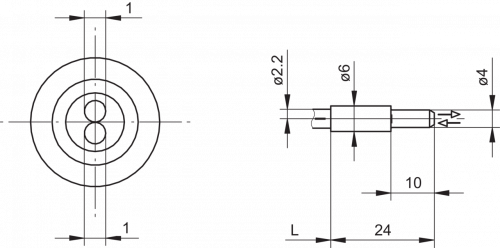

Nákresy

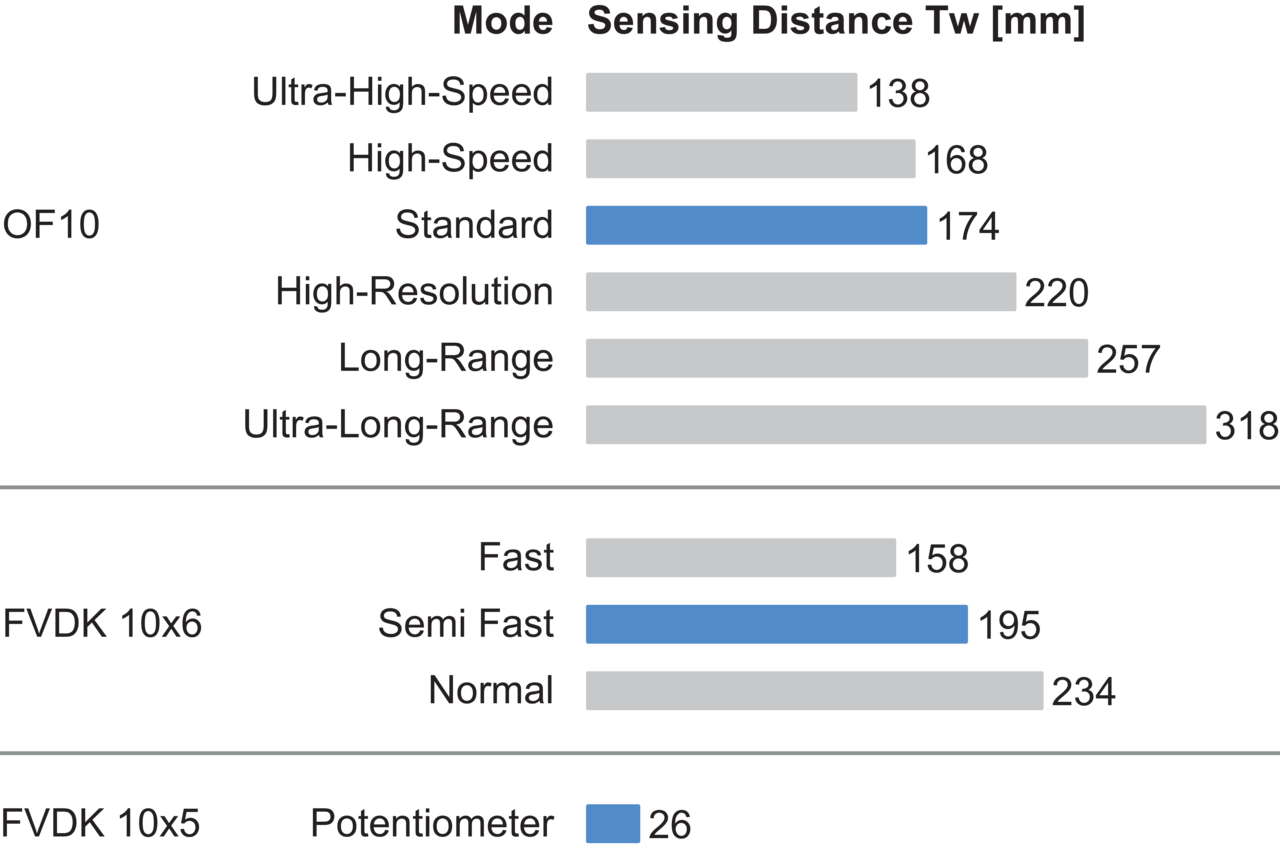

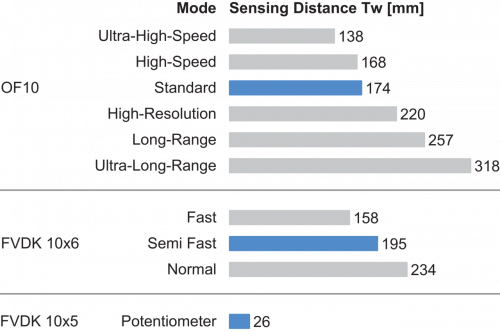

Diagramy

Ke stažení

Příslušenství

Podpora

Skladová dostupnost

Podobné produkty

Parametry

Základní parametry

Specifické vlastnosti:	Smooth sensing head
Princip činnosti:	Diffuse type
Snímací vzdálenost:	318 mm
Hlava optického vlákna:	Cylindrical smooth
Pracovní teplota:	-30 - +70 °C
Vyzařovací úhel:	60°
Optická vlákno lze zkrátit:	Yes
Integrovaný objektiv:	No
Adaptabilní objektiv:	No
Kompatibilní s IR světlem (1450 nm):	No

Mechanické parametry

Průměr vlákna:	1 mm
Šířka \| průměr (hlava):	6 mm
Výška \| Délka (koncovka):	24 mm
Materiál (koncovka):	Aluminum
Ohýbací rádius (pevná instalace):	30 mm
Ohýbací rádius (pohyblivá instalace):	15 mm
Průměr pláště:	2.2 mm
Materiál kabelové izolace:	PE
Materiál (optického vlákna):	Plastic
Délka (optický kabel):	200 cm

Produkt (4) / Popis	Produktová skupina	Skladová dostupnost
Cutting tool for plastic fiber optics - Cutting tool for plastic fiber optics Delivered with every plastic fiber optic	Montážní příslušenství	na dotaz
Fiber optic cable extension 2 m - Fiber optic cable extension 2 m Reduction in range due to fiber optic extension: 2 m = approx. 25%	Montážní příslušenství	na dotaz
Fiber optic cable extension 5 m - Fiber optic cable extension 5 m Reduction in range due to fiber optic extension: 5 m = approx. 60%	Montážní příslušenství	na dotaz
Fiber optic cable extension 5 m highly flexible - Fiber optic cable extension 5 m highly flexible Reduction in range due to fiber optic extension: 5 m = approx. 60%	Montážní příslušenství	na dotaz

Produkt (27)	Produktová skupina	Výstup	Typ připojení	Skladová dostupnost
FVDK 10N5101 - Fiber optic sensors	Optická vlákna	NPN	Kabel	na dotaz
FVDK 10N5101/S35A - Fiber optic sensors	Optická vlákna	NPN	Konektor	na dotaz
FVDK 10N66Y0 - Fiber optic sensors - FVDK 66 (standard version)	Optická vlákna	NPN	Kabel	na dotaz
FVDK 10N66Y0/S35A - Fiber optic sensors - FVDK 66 (standard version)	Optická vlákna	NPN	Konektor	na dotaz
FVDK 10N66YM - Fiber optic sensors - FVDK 66 (master/slave)	Optická vlákna	NPN	Kabel	na dotaz
FVDK 10N66YR - Fiber optic sensors - FVDK 66 (standard version)	Optická vlákna	NPN	Kabel	na dotaz
FVDK 10N66YS - Fiber optic sensors - FVDK 66 (master/slave)	Optická vlákna	NPN	Kabel	na dotaz
FVDK 10N66Z0 - Fiber optic sensors - FVDK 66 (high sensitivity)	Optická vlákna	NPN	Kabel	na dotaz
FVDK 10N66Z0/S35A - Fiber optic sensors - FVDK 66 (high sensitivity)	Optická vlákna	NPN	Konektor	na dotaz
FVDK 10N66ZR - Fiber optic sensors - FVDK 66 (high sensitivity)	Optická vlákna	NPN	Kabel	na dotaz
FVDK 10P5101 - Fiber optic sensors	Optická vlákna	PNP	Kabel	1 ks
FVDK 10P5101/S35A - Fiber optic sensors	Optická vlákna	PNP	Konektor	1 ks
FVDK 10P66Y0 - Fiber optic sensors - FVDK 66 (standard version)	Optická vlákna	PNP	Kabel	2 ks
FVDK 10P66Y0/S35A - Fiber optic sensors - FVDK 66 (standard version)	Optická vlákna	PNP	Konektor	na dotaz
FVDK 10P66YM - Fiber optic sensors - FVDK 66 (master/slave)	Optická vlákna	PNP	Kabel	na dotaz
FVDK 10P66YR - Fiber optic sensors - FVDK 66 (standard version)	Optická vlákna	PNP	Kabel	na dotaz
FVDK 10P66YS - Fiber optic sensors - FVDK 66 (master/slave)	Optická vlákna	PNP	Kabel	na dotaz
FVDK 10P66Z0 - Fiber optic sensors - FVDK 66 (high sensitivity)	Optická vlákna	PNP	Kabel	na dotaz
FVDK 10P66Z0/S35A - Fiber optic sensors - FVDK 66 (high sensitivity)	Optická vlákna	PNP	Konektor	na dotaz
FVDK 10P66ZR - Fiber optic sensors - FVDK 66 (high sensitivity)	Optická vlákna	PNP	Kabel	na dotaz
OF10.FR-GW2J.B2CV/A014 - Fiber optic sensors - OF10	Optická vlákna	IO-Link/Push-pull IO-Link	Kabel	na dotaz
OF10.FR-GW2J.B2N/A014 - Fiber optic sensors - OF10	Optická vlákna	IO-Link/Push-pull IO-Link	Konektor	na dotaz
OF10.FR-GW2J.B2NV/A014 - Fiber optic sensors - OF10	Optická vlákna	IO-Link/Push-pull IO-Link	Kabel s konektorem	na dotaz
OF10.FR-NW1B.B2CV - Fiber optic sensors - OF10	Optická vlákna	NPN	Kabel	na dotaz
OF10.FR-NW1B.B2N - Fiber optic sensors - OF10	Optická vlákna	NPN	Konektor	na dotaz
OF10.FR-PW1B.B2CV - Fiber optic sensors - OF10	Optická vlákna	PNP	Kabel	na dotaz
OF10.FR-PW1B.B2N - Fiber optic sensors - OF10	Optická vlákna	PNP	Konektor	na dotaz

Název produktu	Počet na skladě
FUE 200C2003	3 ks
