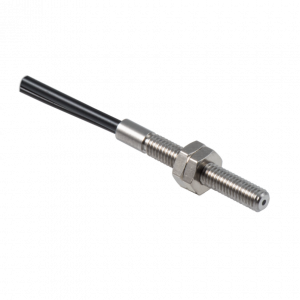

FCE 050C1Y10 - Plastic fiber optic cable

FCE 050C1Y10 - Plastic fiber optic cable

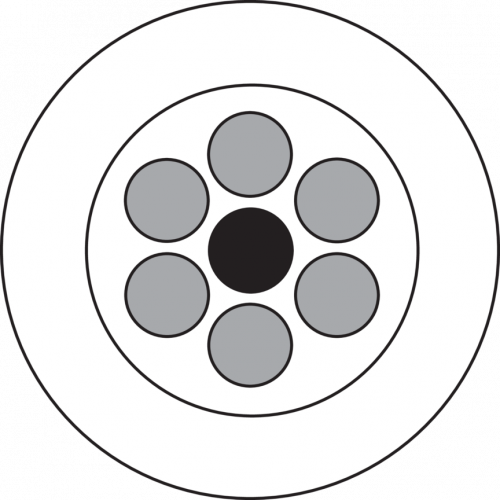

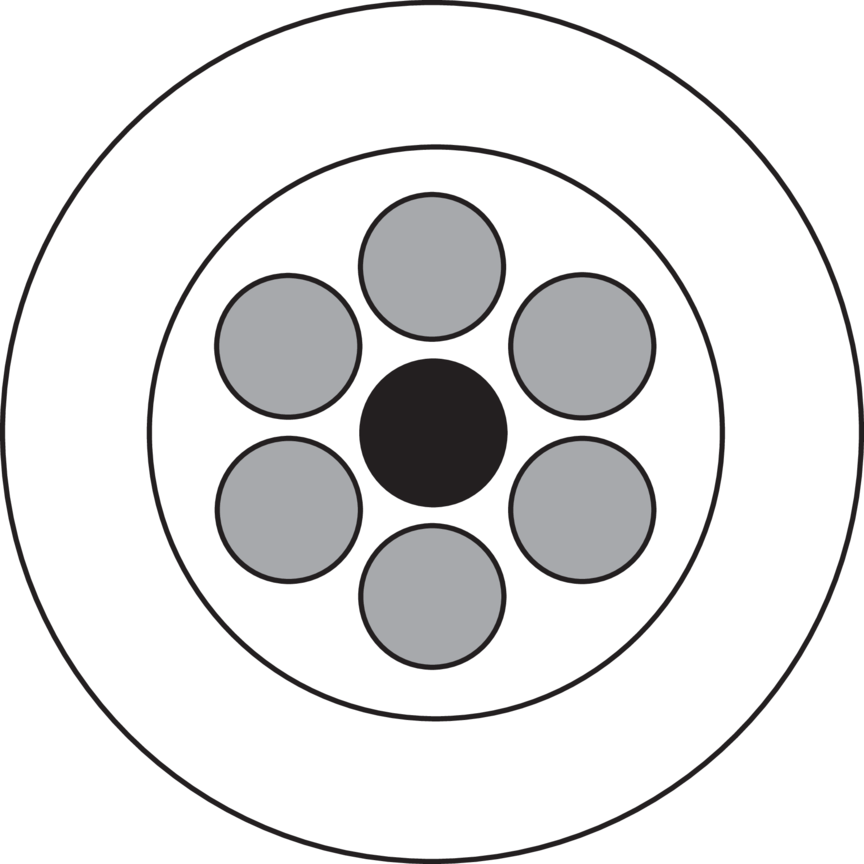

  • Coaxial fiber layout

Objednací číslo: 10135305
Výrobce: Baumer Electric AG
Dostupnost: na dotaz



Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák
Ing. Jaroslav Dančák
Technik specialista pro průmyslové snímače
BAUMER
Ing. Jaroslav Dančák - QR Kontakt
+420 733 533 400
jaroslav.dancak@ajptech.cz
Parametry
Nákresy
Diagramy
Ke stažení
Příslušenství
Podpora
Podobné produkty

Parametry

Základní parametry

Specifické vlastnosti: Coaxial fiber layout
Princip činnosti: Diffuse type

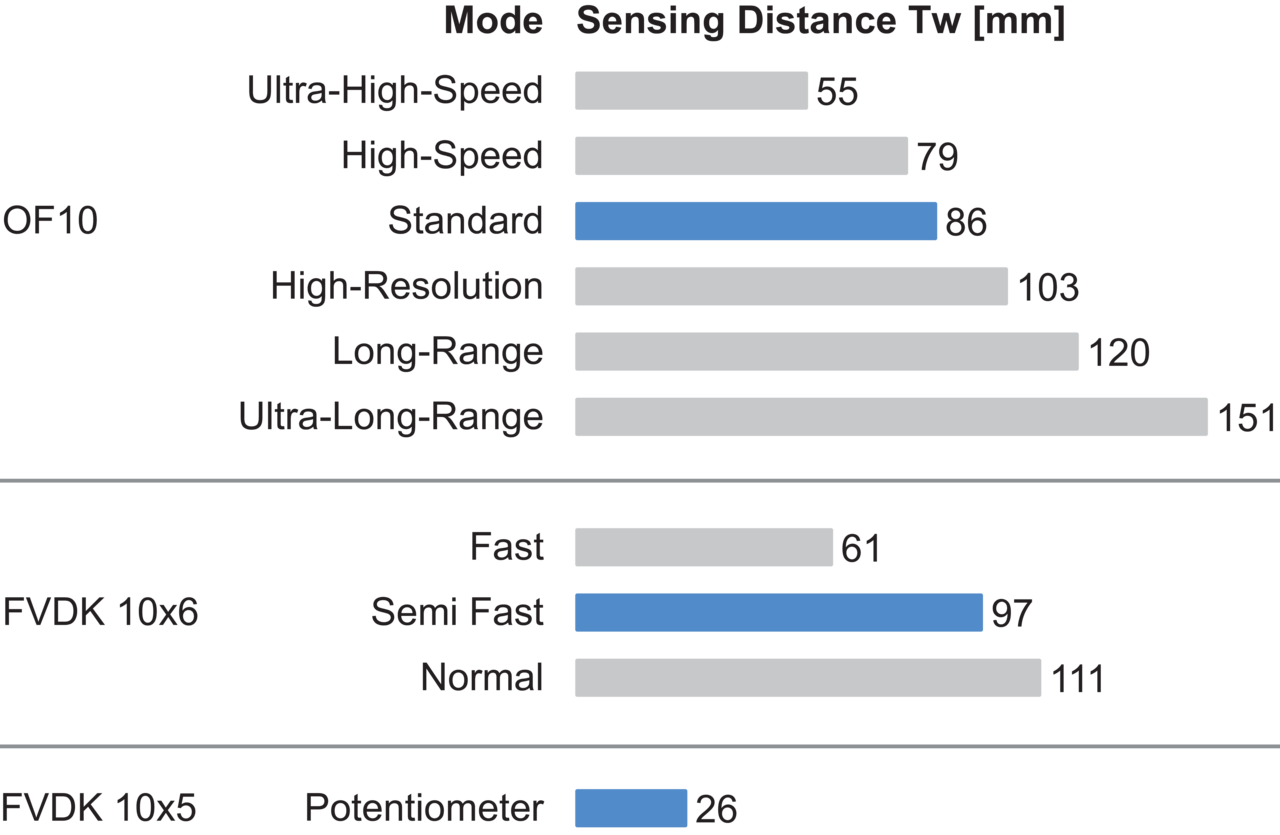

Snímací vzdálenost: 60 mm
Hlava optického vlákna: Cylindrical threaded
Pracovní teplota: -30 - +70 °C
Vyzařovací úhel: 60°
Optická vlákno lze zkrátit: No
Integrovaný objektiv: No
Adaptabilní objektiv: No
Kompatibilní s IR světlem (1450 nm): No

Mechanické parametry

Průměr vlákna: 0.25 mm
Šířka | průměr (hlava): 3 mm
Výška | Délka (koncovka): 23 mm
Materiál (koncovka): Stainless steel
Závit: M3 x 0.5
Ohýbací rádius (pevná instalace): 4 mm
Průměr pláště: 1.6 mm
Materiál kabelové izolace: PE
Materiál (optického vlákna): Plastic
Délka (optický kabel): 50 cm
