FVDK 10N66YS - Fiber optic sensors - FVDK 66 (master/slave)

FVDK 10N66YS - Fiber optic sensors - FVDK 66 (master/slave)
  • pulsed red LED
  • NPN
  • Teach-in
  • cable, 2 m
  • -20 … 55 °C
  • IP 40
Objednací číslo: 11045464
Výrobce: Baumer Electric AG
Dostupnost: na dotaz



Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák
Ing. Jaroslav Dančák
Technik specialista pro průmyslové snímače
BAUMER
Ing. Jaroslav Dančák - QR Kontakt
+420 733 533 400
jaroslav.dancak@ajptech.cz
Parametry
Nákresy
Ke stažení
Příslušenství
Podpora
Podobné produkty

Parametry

Základní parametry

Verze: Slave
Zdroj světla: Pulsed red LED
Světelný indikátor: 2 x 4-digit display
Výstupní indikátor: LED yellow
Nastavení: Teach-in
Vlnová délka: 645 nm
Potlačení vzájemného ovlivňování: Yes

Elektrické parametry

Doba odezvy: 0.25 - 1 ms (adjustable)
Rozsah napájecího napětí +Vs: 10.8 - 26.4 VDC
Maximální spotřeba proudu (bez zátěže): 30 mA
Pokles napětí Vd: <2.1 VDC
Výstupní funkce: Light / dark operate switchable
On | Off zpoždění: 1 - 5000 ms

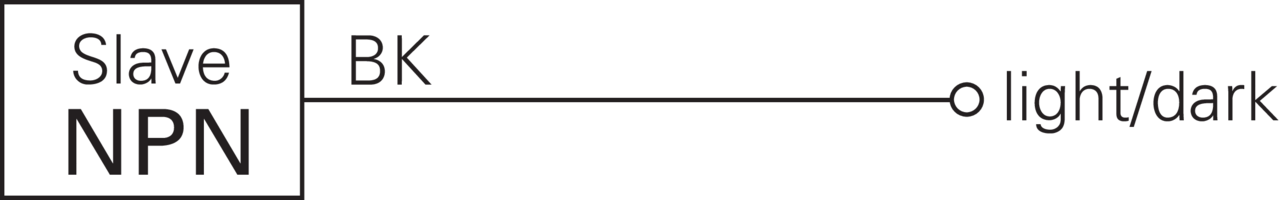

Výstupní obvod: NPN
Výstupní proud: 100 mA
Ochrana proti zkratu: Yes
Ochrana proti přepólování: Yes

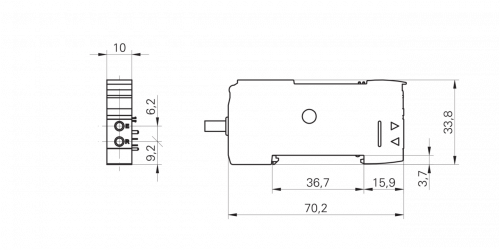

Mechanické parametry

Šířka | průměr: 10 mm
Výška | Délka: 33.8 mm
Hloubka: 70.2 mm
Konstrukce: Rectangular
Materiál pouzdra: Polycarbonate/ABS
Způsoby připojení: Cable, L=2 m

Okolní podmínky

Pracovní teplota: -20 - +55 °C
Třída krytí: IP 40
