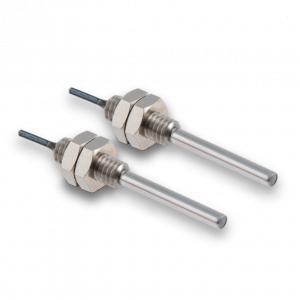

FPE 200D1Y00 - Plastic fiber optic cable

FPE 200D1Y00 - Plastic fiber optic cable

  • Parallel beam
  • Integrated lens

Objednací číslo: 10135351
Výrobce: Baumer Electric AG
Dostupnost: na dotaz



Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák
Ing. Jaroslav Dančák
Technik specialista pro průmyslové snímače
BAUMER
Ing. Jaroslav Dančák - QR Kontakt
+420 733 533 400
jaroslav.dancak@ajptech.cz
Parametry

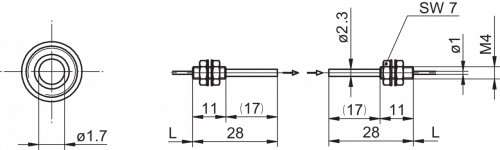

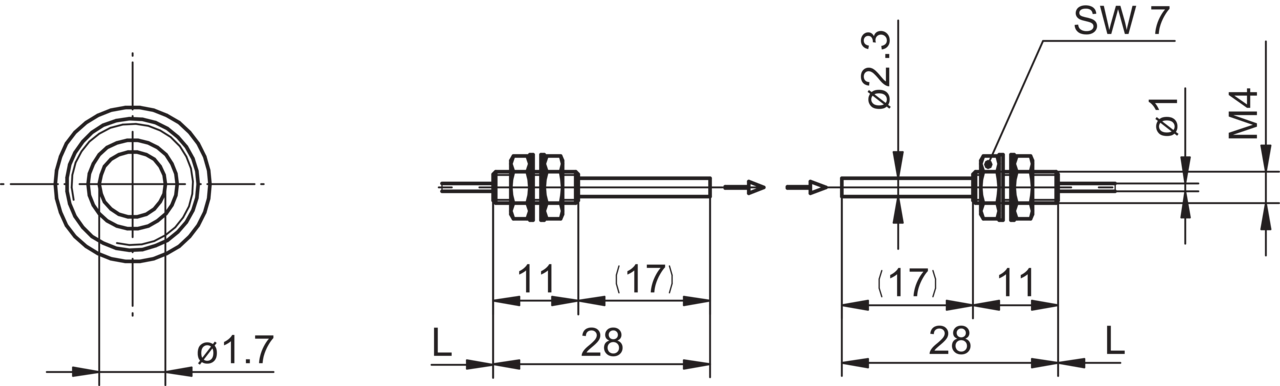

Nákresy
Ke stažení
Příslušenství
Podpora
Podobné produkty

Parametry

Základní parametry

Specifické vlastnosti:
  • Parallel beam
  • Integrated lens
Princip činnosti: Through-beam type
Skutečný rozsah Sb: 2879 mm
Hlava optického vlákna: Cylindrical threaded, with sleeve
Pracovní teplota: -30 - +70 °C
Vyzařovací úhel: 3°
Optická vlákno lze zkrátit: Yes
Integrovaný objektiv: Yes
Adaptabilní objektiv: No
Kompatibilní s IR světlem (1450 nm): No

Mechanické parametry

Průměr vlákna: 0.75 mm
Šířka | průměr (hlava): 4 mm
Výška | Délka (koncovka): 28 mm
Materiál (koncovka): Stainless steel
Závit: M4 x 0.7
Ohýbací rádius (pevná instalace): 15 mm
Průměr pláště: 1 mm
Materiál kabelové izolace: PE
Materiál (optického vlákna): Plastic
Délka (optický kabel): 200 cm
