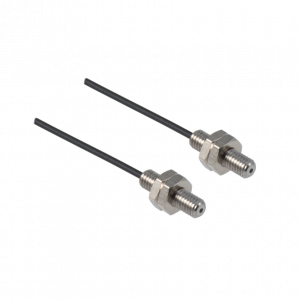

FSE 200D1Y50 - Plastic fiber optic cable

Suitable for flexible cable carriers

Objednací číslo: 10151373
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák

Technik specialista pro průmyslové snímače
BAUMER

+420 733 533 400

jaroslav.dancak@ajptech.cz

Parametry

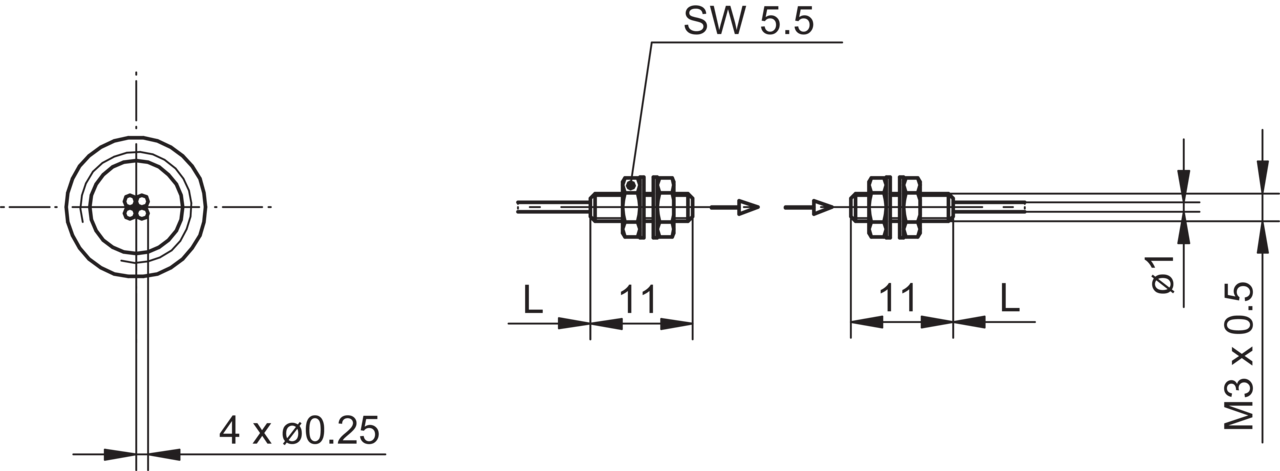

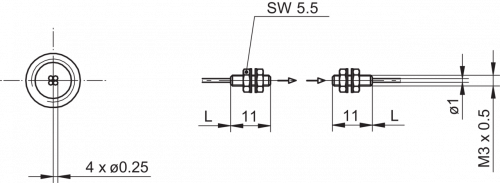

Nákresy

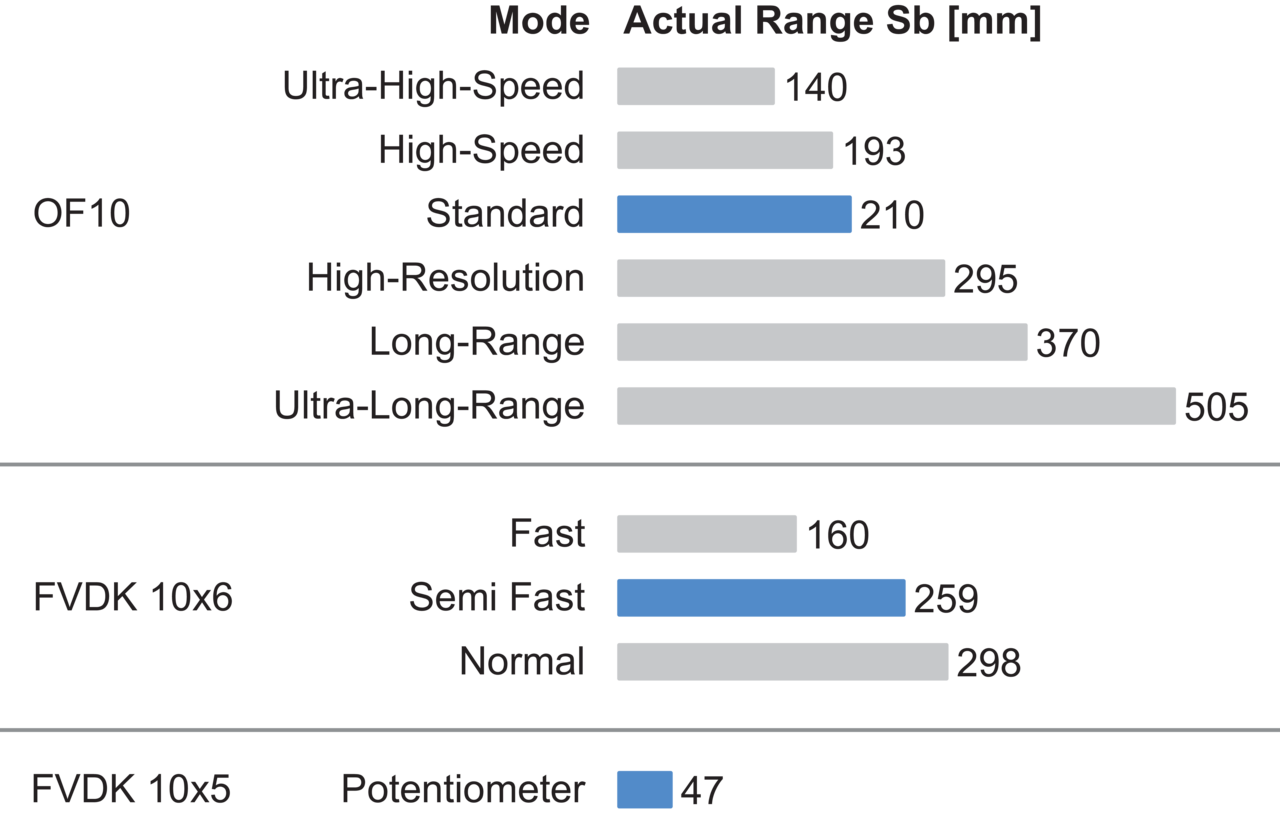

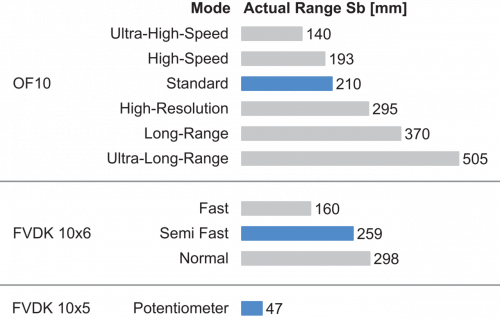

Diagramy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Specifické vlastnosti:	Suitable for flexible cable carriers
Princip činnosti:	Through-beam type
Skutečný rozsah Sb:	505 mm
Hlava optického vlákna:	Cylindrical threaded
Pracovní teplota:	-30 - +70 °C
Vyzařovací úhel:	60°
Optická vlákno lze zkrátit:	Yes
Integrovaný objektiv:	No
Adaptabilní objektiv:	No
Kompatibilní s IR světlem (1450 nm):	No

Mechanické parametry

Šířka \| průměr (hlava):	3 mm
Výška \| Délka (koncovka):	11 mm
Materiál (koncovka):	Stainless steel
Závit:	M3 x 0.5
Ohýbací rádius (pevná instalace):	4 mm
Průměr pláště:	1 mm
Materiál kabelové izolace:	PE
Materiál (optického vlákna):	Plastic
Délka (optický kabel):	200 cm

Foto	Produkt (2) / Popis	Produktová skupina	Skladová dostupnost
	Cutting tool for plastic fiber optics - Cutting tool for plastic fiber optics Delivered with every plastic fiber optic	Montážní příslušenství	na dotaz
	Mounting bracket Ø 1,1 mm - Mounting bracket Ø 1,1 mm Material: Aluminum	Montážní příslušenství	na dotaz

Foto	Produkt (1) / Popis	Produktová skupina	Skladová dostupnost
	Reduction tube - Reduction tube Set of 2 Delivered with every 1 mm plastic fiber optic	Čočky / apertury / skleněné kryty	na dotaz
