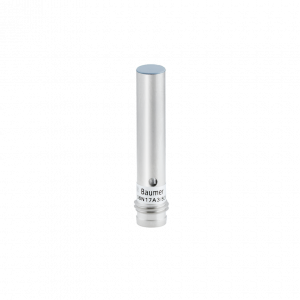

IFRM 06N37A5/S35L - Inductive proximity switch - subminiature

IFRM 06N37A5/S35L - Inductive proximity switch - subminiature
  • 2 mm
  • NPN break function (NC)
  • connector M8
  • -25 … 75 °C
  • IP 67
Objednací číslo: 10140533
Výrobce: Baumer Electric AG
Dostupnost: na dotaz



Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák
Ing. Jaroslav Dančák
Technik specialista pro průmyslové snímače
BAUMER
Ing. Jaroslav Dančák - QR Kontakt
+420 733 533 400
jaroslav.dancak@ajptech.cz
Parametry
Nákresy
Ke stažení
Příslušenství
Podpora
Podobné produkty

Parametry

Základní parametry

Montážní typ: Flush
Nominální snímací vzdálenost Sn: 2 mm
Hystereze: 3 - 20 % of Sr
Výstupní indikátor: 3 port LED red

Elektrické parametry

Spínací frekvence: 5 kHz
Rozsah napájecího napětí +Vs: 6 - 36 VDC
Maximální spotřeba proudu (bez zátěže): 12 mA
Výstupní obvod: NPN break function (NC)
Pokles napětí Vd: <2 VDC
Výstupní proud: 200 mA
Ochrana proti zkratu: Yes
Ochrana proti přepólování: Yes

Mechanické parametry

Konstrukce: Cylindrical smooth
Materiál aktivní části: PBT
Materiál pouzdra: Stainless steel
Rozměry: 6.5 mm
Délka pouzdra: 28 mm
Způsoby připojení: Connector M8

Okolní podmínky

Pracovní teplota: -25 - +75 °C
Třída krytí: IP 67
