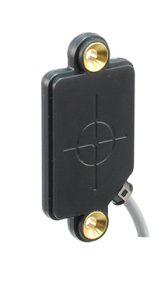

IF250.P12S-N52.NO1Z.71CV - Inductive proximity switches

IF250.P12S-N52.NO1Z.71CV - Inductive proximity switches
  • Ultra-flat design for installation in confined spaces
  • Large switching distance 12 mm
  • Robust plastic housing with metal sleeves
  • Additional mounting material for easy installation on tubes
Objednací číslo: 11705028
Výrobce: Baumer Electric AG
Dostupnost: na dotaz



Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák
Ing. Jaroslav Dančák
Technik specialista pro průmyslové snímače
BAUMER
Ing. Jaroslav Dančák - QR Kontakt
+420 733 533 400
jaroslav.dancak@ajptech.cz
Parametry
Nákresy
Ke stažení
Příslušenství
Podpora
Podobné produkty

Parametry

Základní parametry

Montážní typ: Non-flush
Nominální snímací vzdálenost Sn: 12 mm
Zajištěná snímací vzdálenost Sa: ≤ 81 % of Sn
Reálná snímací vzdálenost Sr: ± 10 % of Sn
Teplotní drift: ± 10 % of Sr
Hystereze: 3 - 20 % of Sr
Výstupní indikátor: LED red
Korekční faktor: Mild steel 100 %, stainless steel 70 %, aluminum 50 %

Elektrické parametry

Spínací frekvence: 1000 Hz
Rozsah napájecího napětí +Vs: 6 - 36 VDC
Maximální spotřeba proudu (bez zátěže): 12 mA
Výstupní obvod: NPN make function (NO)
Pokles napětí Vd: <2 VDC
Výstupní proud: 200 mA
Ochrana proti zkratu: Yes
Ochrana proti přepólování: Yes

Mechanické parametry

Konstrukce: Rectangular
Materiál aktivní části: PA
Materiál pouzdra: PA 12
Rozměry: 25 mm
Délka pouzdra: 52.4 mm
Způsoby připojení: Cable, L=2 m
Parametry kabelu: PUR 3 x 0.14 mm²
Hmotnost: 36 g

Okolní podmínky

Pracovní teplota: -25 - +75 °C
Skladovací teplota: -40 - +75 °C
Třída krytí: IP 67
Odolnost vibracím: IEC 60068-2-6:2008 10 g at f = 10 - 2000 Hz, duration 150 min per axis
Odolnost vůči zkratu: IEC 60068-2-27:2009 100 g / 6 ms, 10 jolts per axis and direction
